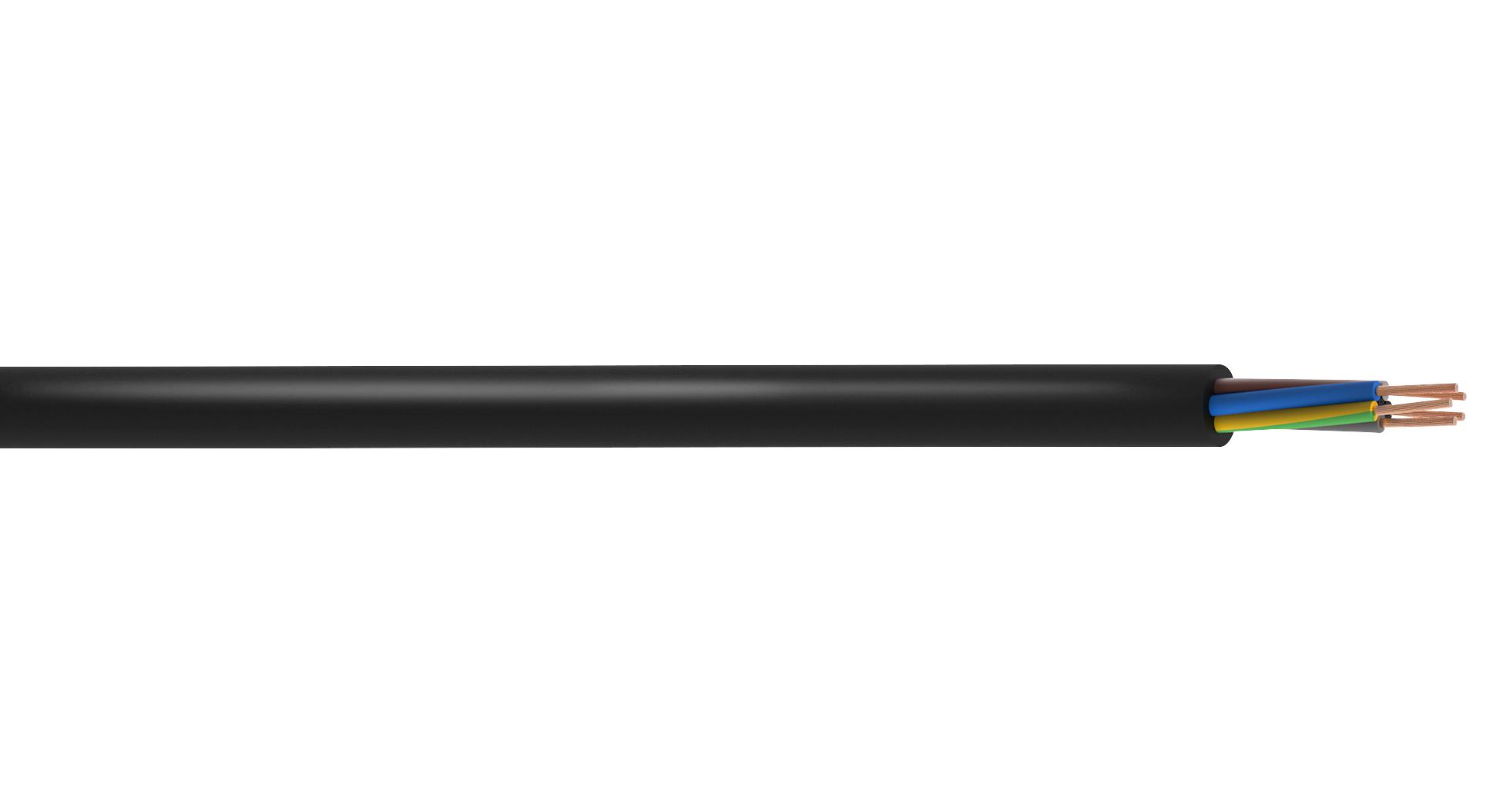

MULTICOMP PRO PP002151 Flexible Rubber Cable
Flexible rubber cable designed for high flexibility and durability in harsh environments, including weather, oil, grease, and mechanical stresses. Suitable for handling equipment, mobile power supplies, industrial sites, stage, audiovisual equipment, port areas, dams, drainage, and water treatment facilities. Rated at 450/750V with -30°C to +60°C fixed and -15°C to +60°C flexed temperature ranges. Constructed with Class 5 copper conductors, EPR insulation, and PCP sheath, complying with BS EN standards. Available in various core configurations with black sheathing for outdoor and industrial applications.
MULTICOMP PRO PP002151 Flexible Rubber Cable Specifications:
- Voltage Rating: 450/750V
- Conductor: Class 5 copper, flexible to BS EN 60228
- Insulation: EPR (Ethylene Propylene Rubber) Type El4
- Sheath: PCP (Polychloroprene) Type EM2
- Temperature Ratings: Fixed -30°C to +60°C, +85°C; Flexed -15°C to +60°C
- Minimum Bending Radius: Fixed 4 x overall diameter, Flexed 6 x overall diameter
- Core identification: 2-core Blue, Brown, 3-core Green/Yellow, Blue, Brown, etc.
- Sheath Colour: Black
- Standards: BS EN 50525-2-21, BS EN 60811-2-1, BS EN/IEC 60332-1-2
- Dimensions: Vary with core count and cross-sectional area, with detailed wire and overall dimensions provided in datasheets
- Maximum conductor diameter: 0.21 mm to 0.31 mm depending on section
- Current capacity: 10A to 25A depending on cross-section and phase configuration
- Voltage drop: 12-46 mV/A/m based on cross-section
- Operating temperature: Up to 85°C for insulated conductors
- Compliance: RoHS
Buy the Multicomp Series Rubber Cable: HO7RN-F 450/750V Black Flexible Wire - PP002151
Discover the reliability of Multicomp Series flexible rubber cable PP002151, designed for demanding industrial and outdoor environments. With a voltage rating of 450/750V and excellent resistance to weather, oil, and mechanical stress, this cable ensures safe and efficient power transmission. Constructed with high-quality copper conductors, EPR insulation, and a PCP sheath, it’s ideal for handling equipment, construction sites, and water treatment facilities. Purchase online now to benefit from fast delivery, competitive pricing, and top-tier quality for your heavy-duty electrical applications.
Buy Multicomp Series flexible rubber cable PP002151 now and experience unmatched durability, weather resistance, and industrial-grade performance.
