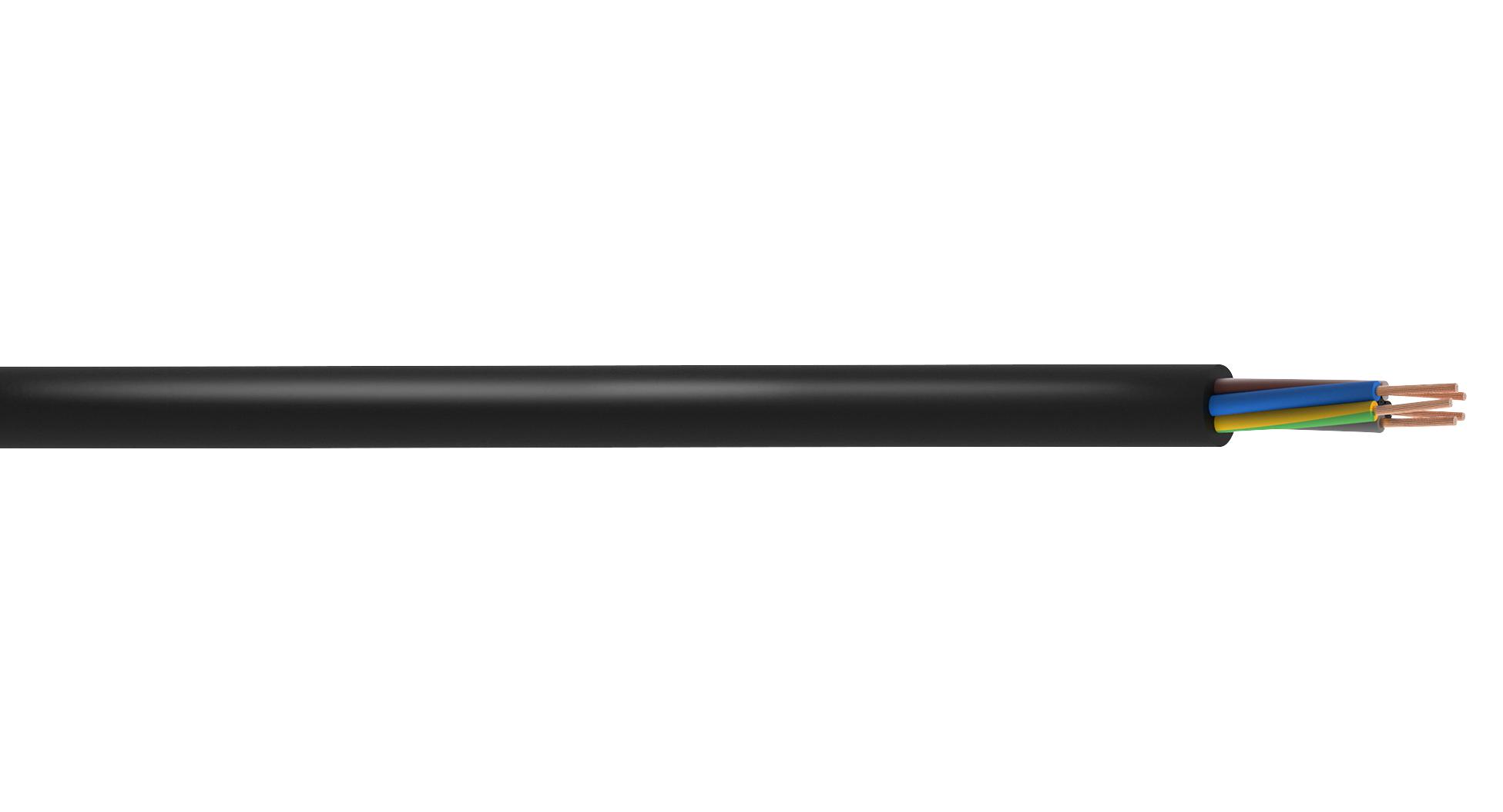

MULTICOMP PRO PP002152 Flexible Rubber Cable
Flexible rubber cable designed for high flexibility and withstands weather, oil, grease, mechanical, and thermal stresses. Suitable for handling equipment, mobile power supplies, worksites, stage, audio visual equipment, port areas, dams, drainage, water treatment, and severe industrial environments. Constructed with flexible copper conductors, EPR insulation, and PCP sheath, it complies with BS EN 50525-2-21 standards, offering various core configurations, cross-sectional areas, and durable black sheathing for reliable performance in demanding applications.
MULTICOMP PRO PP002152 Flexible Rubber Cable Specifications:
- Voltage Rating: 450/750V
- Temperature Rating: Fixed: -30°C to +60°C, Flexed: -15°C to +60°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 6 x overall diameter
- Core Identification: 2-core: Blue, Brown; 3-core: Green/Yellow, Blue, Brown; 4-core: Green/Yellow, Brown, Black, Grey; 5-core: Green/Yellow, Blue, Brown, Black, Grey
- Sheath Colour: Black
- Construction: Copper conductor to BS EN 60228, EPR insulation, PCP sheath
- Conductor Diameter: 0.26 mm for 1.5mm² cross-sectional area, 0.31 mm for 4-6mm²
- Current Capacity: Up to 25 Amps for 1.5mm², 41 Amps for 4mm², depending on configuration
- Resistance: 13.3 Ω/km for 1.5mm², 4.95 Ω/km for 4mm²
- Operating Temperature (conductor): 60°C / 85°C depending on model
- Standards: BS EN 50525-2-21, BS EN 60811-2-1, BS EN 60332-1-2
Buy the Buy MultiConductor Rubber Cable Part Number PP002152 Online
Purchase the flexible rubber cable with part number PP002152 online to ensure your industrial projects and outdoor setups benefit from high flexibility, weather resistance, and compliance with BS EN standards. Designed for demanding environments, it offers excellent thermal and mechanical resilience, suitable for handling equipment, power supplies, and water treatment facilities. Easy to install, durable, and reliable, this cable ensures safety and efficiency in severe industrial and outdoor applications. Order today for fast delivery and expert support.
Buy MultiConductor Rubber Cable PP002152 now and experience unmatched reliability and performance for industrial and outdoor electrical installations.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002152?
You can click on the BUY or RFQ button to purchase PP002152 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002152?
You can download the PP002152 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002152?
MULTICOMP PRO
