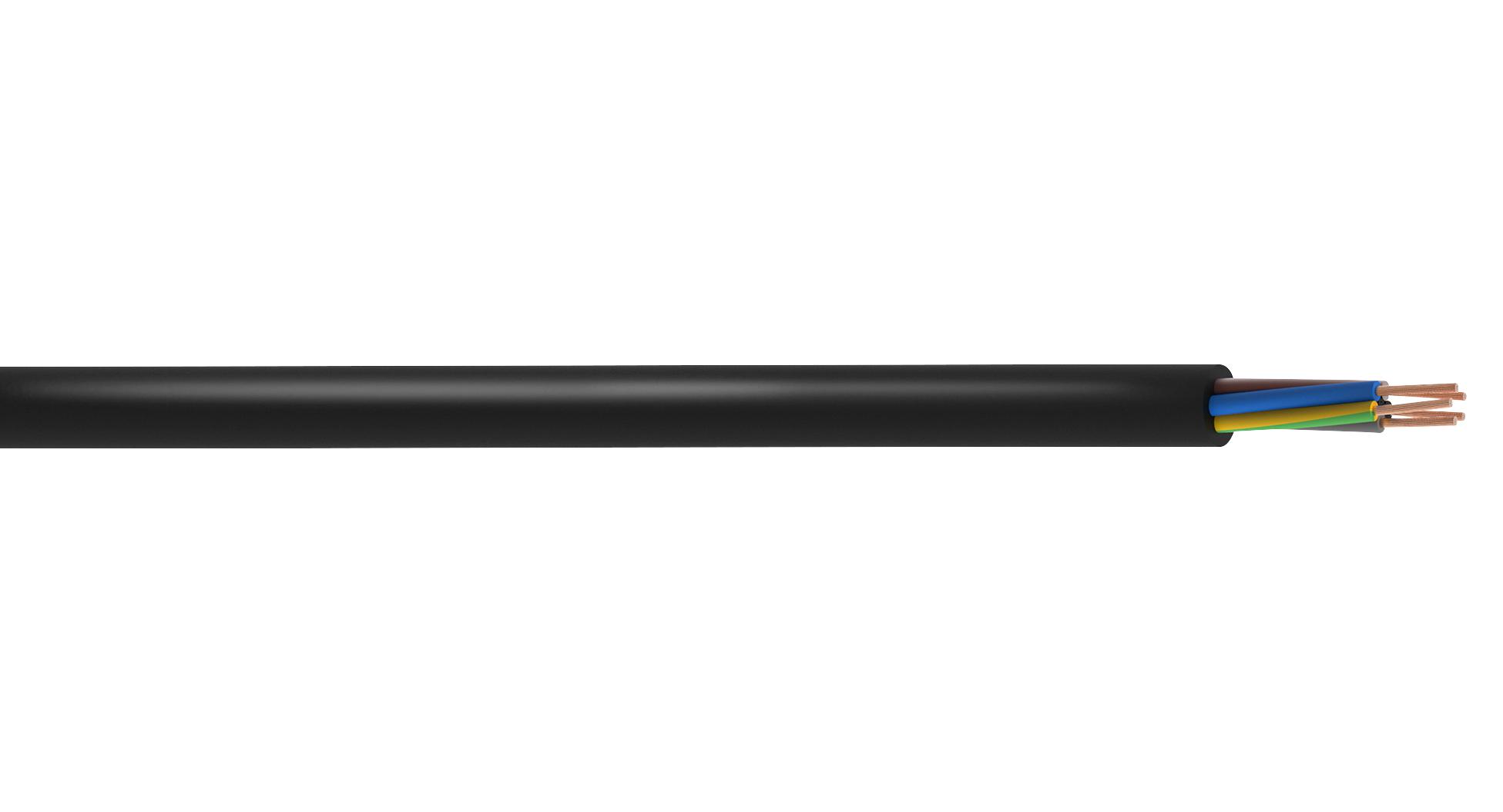

MULTICOMP PRO PP002153 rubber power cable
The flexible rubber cable is designed for high flexibility in industrial and outdoor environments, capable of withstanding weather, oil, grease, and mechanical stresses. Suitable for handling equipment, mobile power supplies, stage, and water treatment applications, it features a robust construction with a copper conductor, EPR insulation, and PCP sheath. It complies with BS EN 50525-2-21, BS 7919, and IEC standards, offering various core configurations, diameters, and cross-sectional areas for versatile power distribution in severe environments.
MULTICOMP PRO PP002153 rubber power cable Specifications:
- Voltage Rating: 450/750V
- Temperature Rating (Fixed): -30°C to +60°C, (Flexed): -15°C to +60°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 6 x overall diameter
- Conductor: Class 5 flexible copper, BS EN 60228
- Insulation: EPR (Ethylene Propylene Rubber) Type El4, BS EN 50363
- Sheath: PCP (Polychloroprene) Type EM2, BS EN 50363
- Core Identification: 2 core: Blue, Brown; 3 core: Green/Yellow, Blue, Brown; 4 core: Green/Yellow, Brown, Black, Grey; 5 core: Green/Yellow, Blue, Brown, Black, Grey
- Dimensions vary per part number, e.g., 1mm2 to 6mm2 cross-sectional area, with sheath thickness around 0.8 to 1 mm
- Weight: Ranges from approximately 94 kg/km to 567 kg/km depending on size
- Conductor Diameter (max): 0.21-0.31 mm
- Maximum Resistance of conductor at 20°C: 19.5-3.3 Ω/km depending on size
- Current Carrying Capacity: 10-25 Amps depending on size, installation type, and temperature
- Voltage Drop: 19-46 mV/A/m for 1 to 2.5mm2 cables, 6.7-12 mV/A/m for 4 to 6mm2 cables
- Operating Temperatures: 60°C (standard), 85°C (for certain sizes)
- Suitable for use on reeling drums with derating factors applied
Buy the Multicomp Series Flexible Rubber Cable: PP002153
Purchase the flexible rubber cable online today, engineered for resilience in harsh industrial and outdoor conditions. With robust copper conductors, weather-resistant insulation, and a durable sheath, this cable ensures reliable power distribution in severe environments. Suitable for handling equipment, water treatment, and outdoor power supplies, it meets BS EN 50525-2-21 standards, offering various sizes and core configurations. Order now for fast delivery and secure online checkout—trusted quality for your power needs.
Get Multicomp Series Flexible Rubber Cable PP002153 today—designed for durability and high flexibility in demanding industrial environments.
