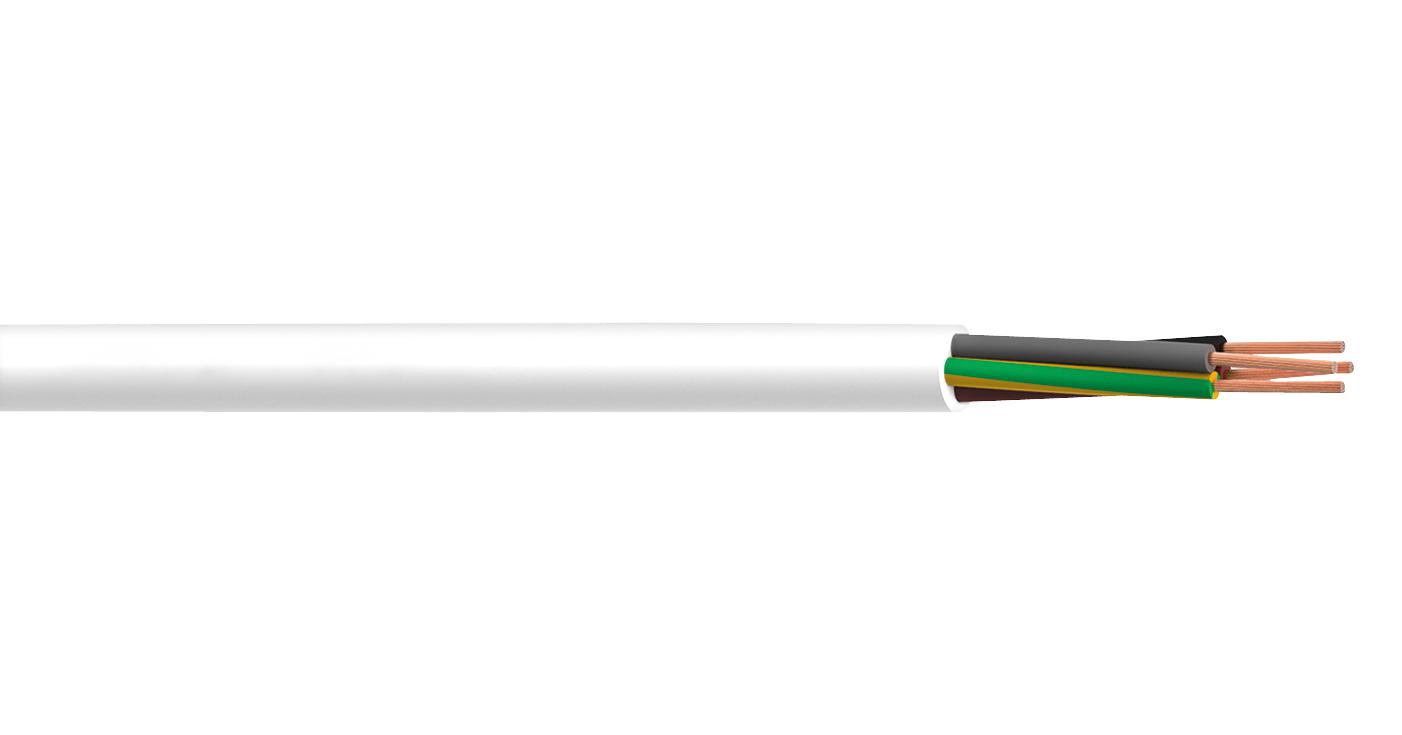

MULTICOMP-PRO PP002158 Flexible Wiring Cable
Flexible cable designed for internal wiring and supply applications, especially in high-temperature zones like lighting. Made with Class 5 flexible copper conductors, with PVC insulation and sheath, compliant with BS EN standards. Available in 3 core configurations with 1.5mm² cross-sectional area, providing reliable current capacity and voltage performance. Suitable for indoor use only, featuring high flexibility, specific minimum bending radii, and precise dimensions for secure installation and safety in electrical systems.
MULTICOMP-PRO PP002158 Flexible Wiring Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: Fixed: 0°C to +90°C
- Minimum Bending Radius: 6 x overall diameter (fixed), 10 x overall diameter (flexed)
- Core Identification: Green/Yellow, Blue & Brown
- Sheath Colour: White
- Construction: Class 5 flexible copper conductor
- Insulation Material: PVC Type TI3
- Sheath Material: PVC Type TM3
- Part Number: PP002158
- Nominal Cross Sectional Area: 1.5 mm²
- Overall Diameter: 8.1 mm
- Weight: 115 kg/km
- Conductors: Copper, flexible class 5 according to BS EN 60228
- Current Capacity: 16 Amps (single-phase)
- Voltage Drop: 32 mV/Am
- Operating Temperature: 60°C
- Standards: BS EN 50525-2-11, BS EN/IEC 60332-1-2
Buy the Multicomp Series Flexible Cable: 309-Y / HOSV2V2-F - 1.5mm² White
Order the reliable Multicomp flexible wiring cable 309-Y / HOSV2V2-F in 1.5mm² size, perfect for indoor electrical applications in high-temperature environments. Crafted with high-quality PVC insulation and sheath, this cable ensures safety, flexibility, and durability. Available in 100m reels or by the meter, it complies with BS EN standards. Its excellent current capacity and precise dimensions make it suitable for lighting and appliance wiring. Purchase online today for fast delivery and secure installation of your electrical projects.
Get Multicomp 309-Y / HOSV2V2-F flexible cable today—built for reliable indoor wiring and high-temperature applications.
