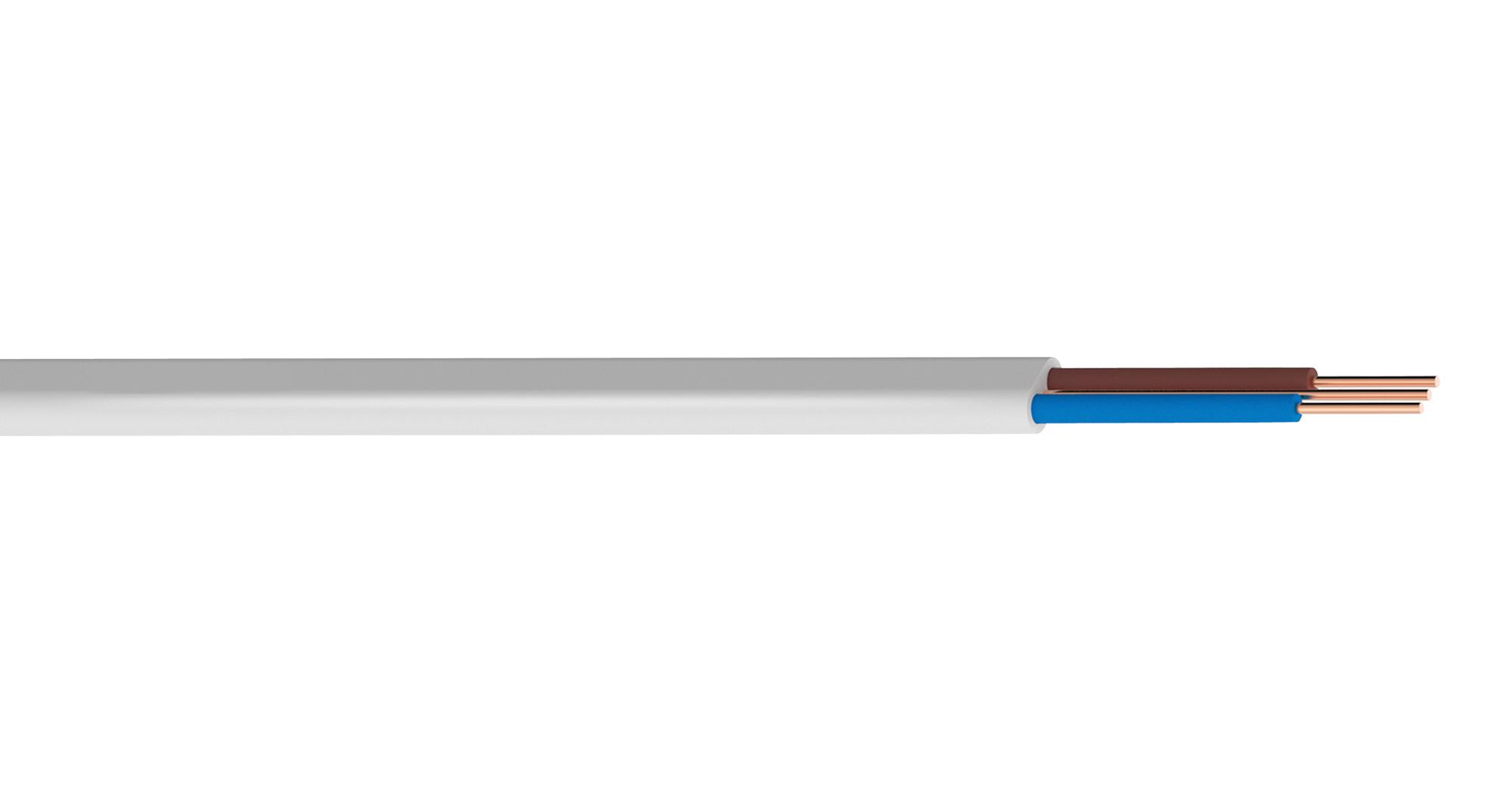

MULTICOMP PRO PP002173 Twin and Earth LSZH Cable
This twin and earth LSZH cable is designed for safe installation in walls, channels, and embedded in plaster, suitable for environments with fire and toxic fume risks. Compliant with BS 7211 and IEC standards, it features cross-linked polyethylene insulation and a low smoke zero halogen sheath, ideal for building wiring where fire safety is critical. It has a voltage rating of 300/500V, operating temperature between -5°C to +70°C, with conductors available in solid or stranded copper, and color-coded cores for easy identification.
MULTICOMP PRO PP002173 Twin and Earth LSZH Cable Specifications:
- Voltage Rating (Uo/U): 300/500V
- Temperature Rating: -5°C to +70°C
- Minimum Bending Radius: 3 x overall diameter
- Core Identification: Brown, Blue, White
- Sheath Material: LSZH (Low Smoke Zero Halogen) Type LTS2
- Insulation Material: XLPE (Cross-Linked Polyethylene) Type GP8
- Construction: Conductor - 1mm to 2.5mm solid (Class 1), 4mm to 10mm stranded (Class 2); Circuit Protection Conductor - solid or stranded copper
- Standards: BS 7211, IEC 60754-1, IEC 60754-2, IEC 61034, BS EN/IEC 60332-1-2
- Cable Length: Available on reels of 100m or per metre
- Physical Dimensions: Cross sectional areas available: 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm²
- Weight: from 65 kg/km for 1mm² to 317 kg/km for 10mm²
- Conductors: Copper, with resistance values at 20°C: 1mm² - 18.1 Ω/km, 1.5mm² - 12.1 Ω/km, 25mm² - 3.08 Ω/km, 4mm² - 4.61 Ω/km, 10mm² - 1.83 Ω/km
Buy the Multicomp LSZH Cable – Reliable Twin and Earth Wiring for Industrial Applications
Secure your building wiring with multicomp’s twin and earth LSZH cable, featuring fire-safe low smoke, halogen-free sheath, and durable construction. Available in multiple sizes, this cable ensures safety and compliance with standards like BS 7211 and IEC. Perfect for embedding in plaster or installation in channels, it has a voltage rating of 300/500V and operates efficiently within -5°C to +70°C. Purchase online today and benefit from reliable, safe, and compliant electrical wiring for commercial or residential projects.
Buy multicomp LSZH twin and earth cable now and ensure fire safety and performance in your building wiring projects.
