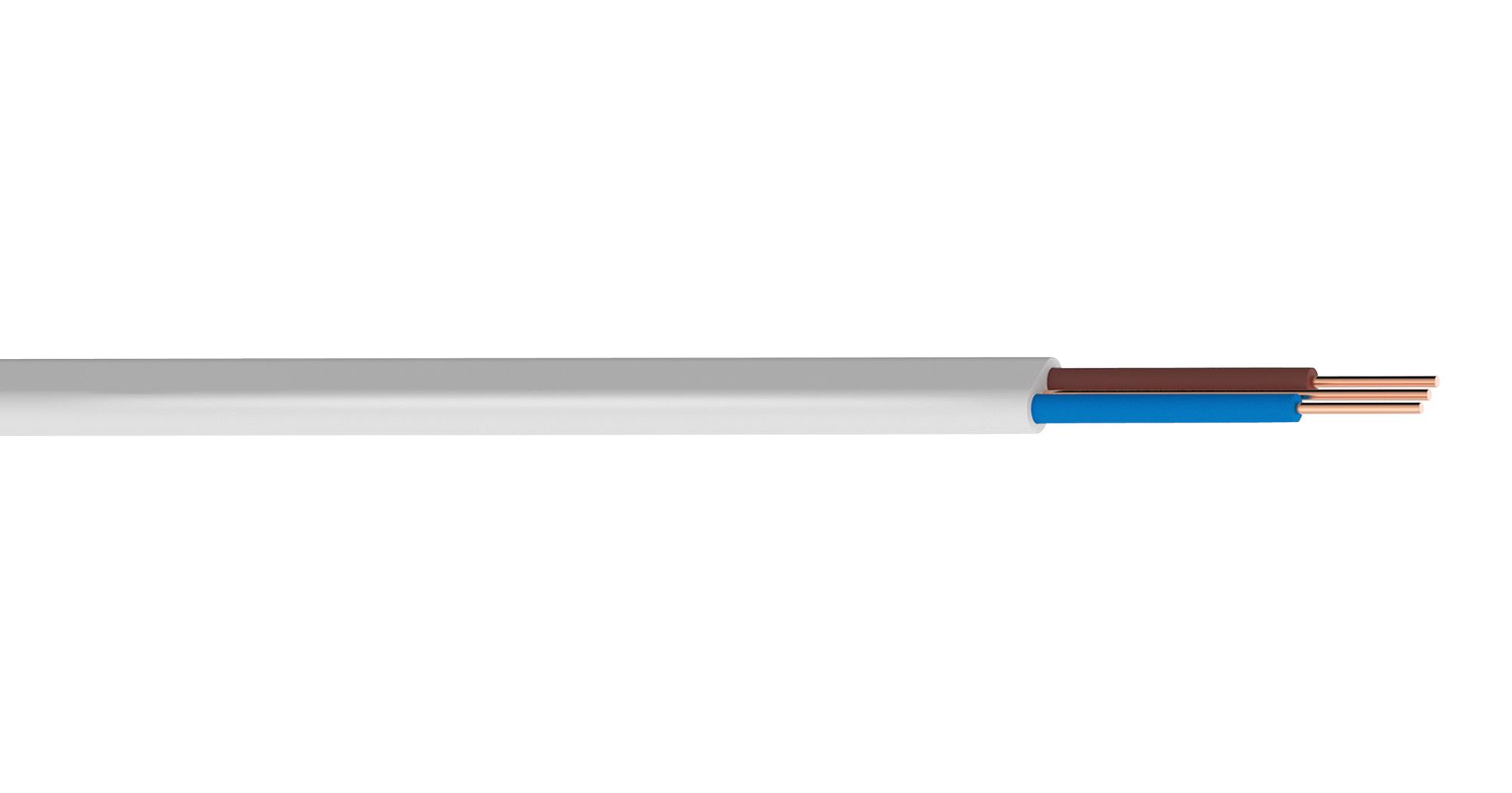

MULTICOMP PRO PP002174 Twin Earth Cable
Unscreened twin and earth LSZH cable with 2 cores, 6mm cross-sectional area, suitable for installation in walls, on boards, or embedded in plaster. It features low smoke zero halogen sheath, XLPE insulation, and copper conductors with resistance ratings between 1.83 to 18.1 ohms. The cable complies with BS 7211, IEC standards, and is RoHS compliant, ensuring safety in fire-prone environments. Available on reels of 100 meters or per meter, it offers reliable circuit protection and durable construction for wiring needs requiring fire safety and low smoke emission.
MULTICOMP PRO PP002174 Twin Earth Cable Specifications:
- Construction: Copper conductors with XLPE insulation and LSZH sheath
- Voltage Rating: 300/500V
- Temperature Rating: -5°C to +70°C
- Conductor: Class 2 stranded (6mm2), copper
- Sheath: Low Smoke Zero Halogen (LTS2)
- Sheath Colour: White
- Minimum Bending Radius: 3 x overall diameter
- Standards: BS 7211, IEC 60754-1, IEC 60754-2, IEC 61034, BS EN/IEC 60332-1-2
- Cable Length: 100 meters or per meter
- Nominal Cross Section: 6mm2
- Weight: 208 kg/km
- Resistance at 20°C: 1.83 ohms
- Application: Wall, board, channel, or embedded installations in fire-risk environments
Buy the Multicomp Series Twin and Earth LSZH Cable: PP002174
Purchase the Twin Earth Cable with 6mm2 cross-sectional area and low smoke zero halogen sheath online today. Designed for installation in walls, channels, or embedded in plaster, it features XLPE insulation and copper conductors for long-lasting performance. This cable complies with BS 7211 and IEC standards, ensuring safety against fire hazards and toxic fumes. Available on 100-meter reels or per meter, it’s ideal for applications requiring fire safety, smoke emission control, and durable electrical connections for residential, commercial, and industrial wiring projects.
Get Multicomp Series PP002174 today—built for durability, safety, and reliable wiring in fire-sensitive environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002174?
You can click on the BUY or RFQ button to purchase PP002174 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002174?
You can download the PP002174 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002174?
MULTICOMP PRO
