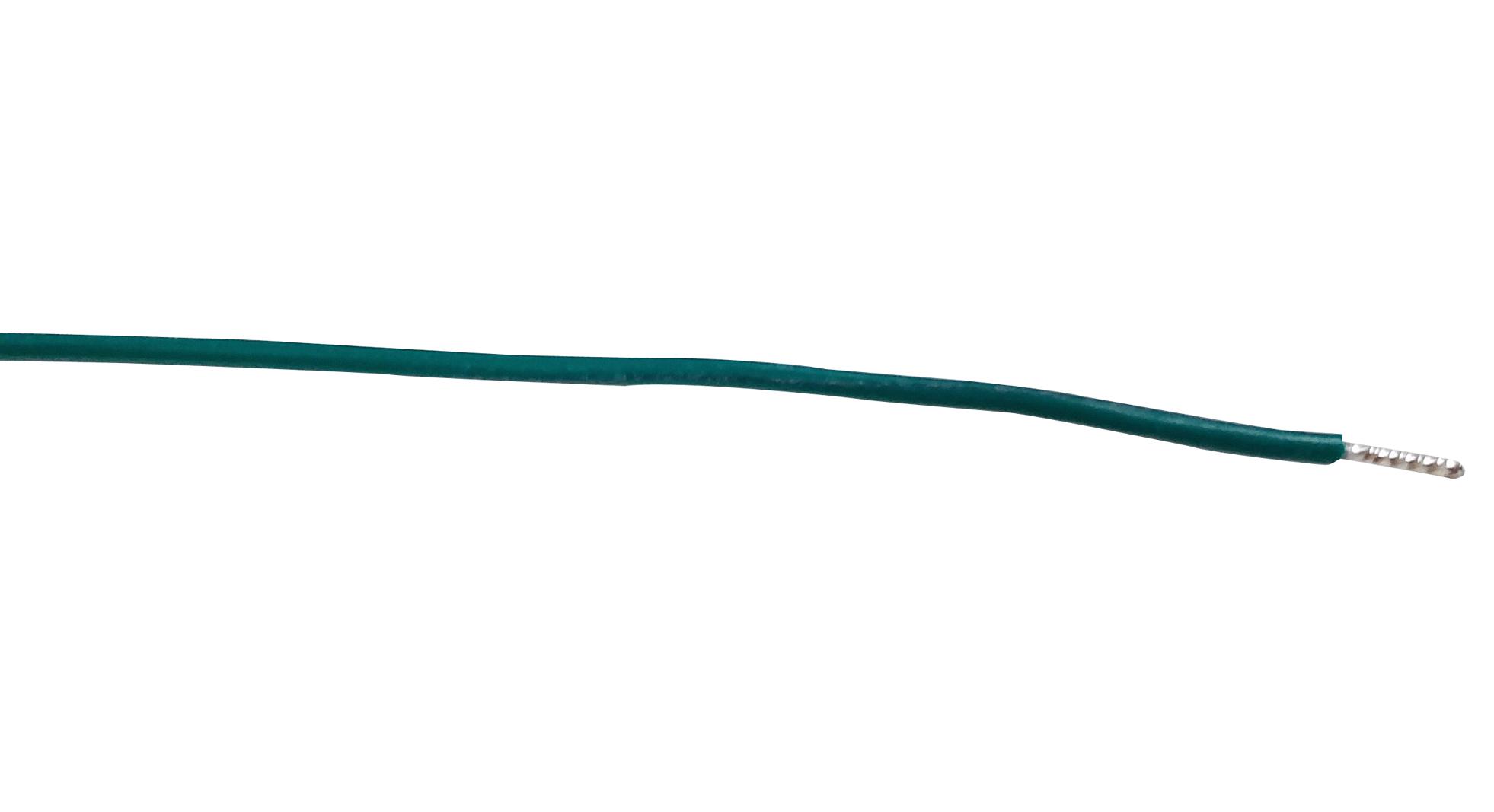

MULTICOMP-PRO PP002398 Hook-Up Wire
PrO-POWER UL1569 style stranded hook-up wire offers excellent flexibility and durability for electrical applications. Made from stranded tinned copper conductor and PVC insulation, it is rated for 105°C and 300V. Available in various gauges from 16 to 30 AWG, it features multiple color options including black, red, blue, and yellow. Suitable for general wiring, control panels, and internal electrical connections, this wire ensures reliable performance in complex electronic projects and industrial systems. Complies with RoHS and UL standards for safety and quality.
MULTICOMP-PRO PP002398 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Available in gauges from 16 to 30 AWG
- Conductor Diameter: 1.49 mm (16 AWG), 1.21 mm (18 AWG), 0.95 mm (20 AWG), 0.76 mm (22 AWG), 0.61 mm (24 AWG), 0.49 mm (26 AWG), 0.39 mm (28 AWG), 0.31 mm (30 AWG)
- Number of Strands: 65/0.16 (16 AWG), 34/0.18 (18 AWG), 17/0.16 (22 AWG), 11/0.16 (24 AWG), 7/0.16 (26 AWG), 7/0.127 (28 AWG), 7/0.10 (30 AWG)
- Wire Color Options: Black, Red, Blue, Green, Yellow, Purple, White, Grey, Brown
- Cable Length: Available in 305m reels or per meter
- Standards: UL Recognized, RoHS Compliant
Buy the UL1569 Series Hook-Up Wire: PP002398
Enhance your electrical and electronic projects with our UL1569 Style stranded hook-up wire, crafted from tinned copper and PVC insulation. Rated for 105°C and 300V, it offers excellent flexibility, durability, and consistent performance. Available in gauges from 16 to 30 AWG in multiple colors including black, red, blue, and yellow, suitable for control panels and detailed wiring. Complies with UL and RoHS standards, ensuring safety and environmental compliance. Purchase online now for fast delivery and trusted quality that keeps your installations safe and reliable.
Order your UL1569 Style Stranded Hook-Up Wire from PrO-POWER today and equip your electrical projects with reliable, high-quality wiring solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002398?
You can click on the BUY or RFQ button to purchase PP002398 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002398?
You can download the PP002398 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002398?
MULTICOMP-PRO
