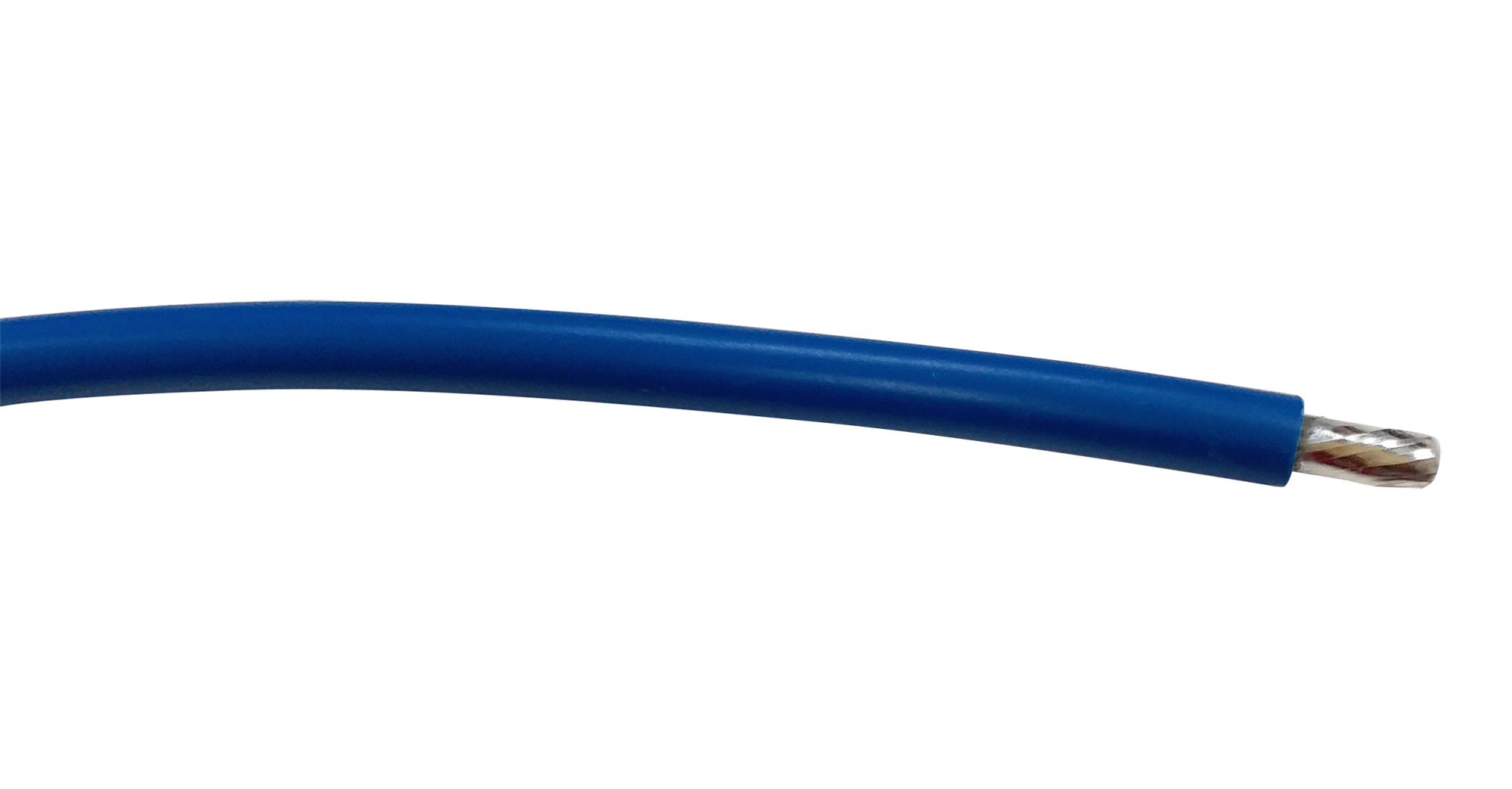

MULTICOMP-PRO PP002584 Hook-Up Wire
This UL1061 style stranded hook-up wire from Pro-Power features tinned copper conductors with a flexible SR PVC insulator, rated for 280°C and 300V. Available in various AWG sizes and colors, it is suitable for electrical and electronic grounding, wiring, and control applications. The wire comes on 305-meter reels or cut to specified lengths, offering excellent durability and resistance under high-temperature conditions. Its stranded design ensures flexibility, making it ideal for complex wiring and assembly tasks in industrial and commercial environments.
MULTICOMP-PRO PP002584 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: 305m reel or per metre
- AWG Sizes: 18, 20, 22, 24, 26
- Conductor Diameter: 1.21 mm (18 AWG), 0.95 mm (20 AWG), 0.76 mm (22 AWG), 0.61 mm (24 AWG), 0.49 mm (26 AWG)
- Number of Strands: 34/0.18, 21/0.18, 11/0.16, 7/0.16, 7/0.16 respectively
- Insulation Diameter: 1.8 mm (18 AWG), 1.5 mm (20 AWG), 1.25 mm (22 AWG), 1.15 mm (24 AWG), 1.0 mm (26 AWG)
- Rated Voltage: 300V
- Temperature Rating: 280°C
- Multiple color options: Black, Brown, Red, Yellow, Green/Yellow, Blue, Grey, White, Orange
- Compliance: UL Recognized (UL file no. E352035)
Buy the Buy Pro-Power UL1061 Hook-Up Wire Part Number PP002584 Online
Secure your wiring projects with Pro-Power Hook-Up Wire available online. Designed with tinned copper conductors and SR PVC insulation, this UL1061 style wire is rated 280°C and 300V, offering superior flexibility and durability. Ideal for electrical and electronic applications, it comes on 305-meter reels or cut to length. With multiple color options and AWG sizes, it ensures seamless installation in industrial and commercial settings. Order now to benefit from fast delivery and reliable performance.
Buy Pro-Power PP002584 now and experience unmatched durability and high-temperature performance for your wiring needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002584?
You can click on the BUY or RFQ button to purchase PP002584 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002584?
You can download the PP002584 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002584?
MULTICOMP-PRO
