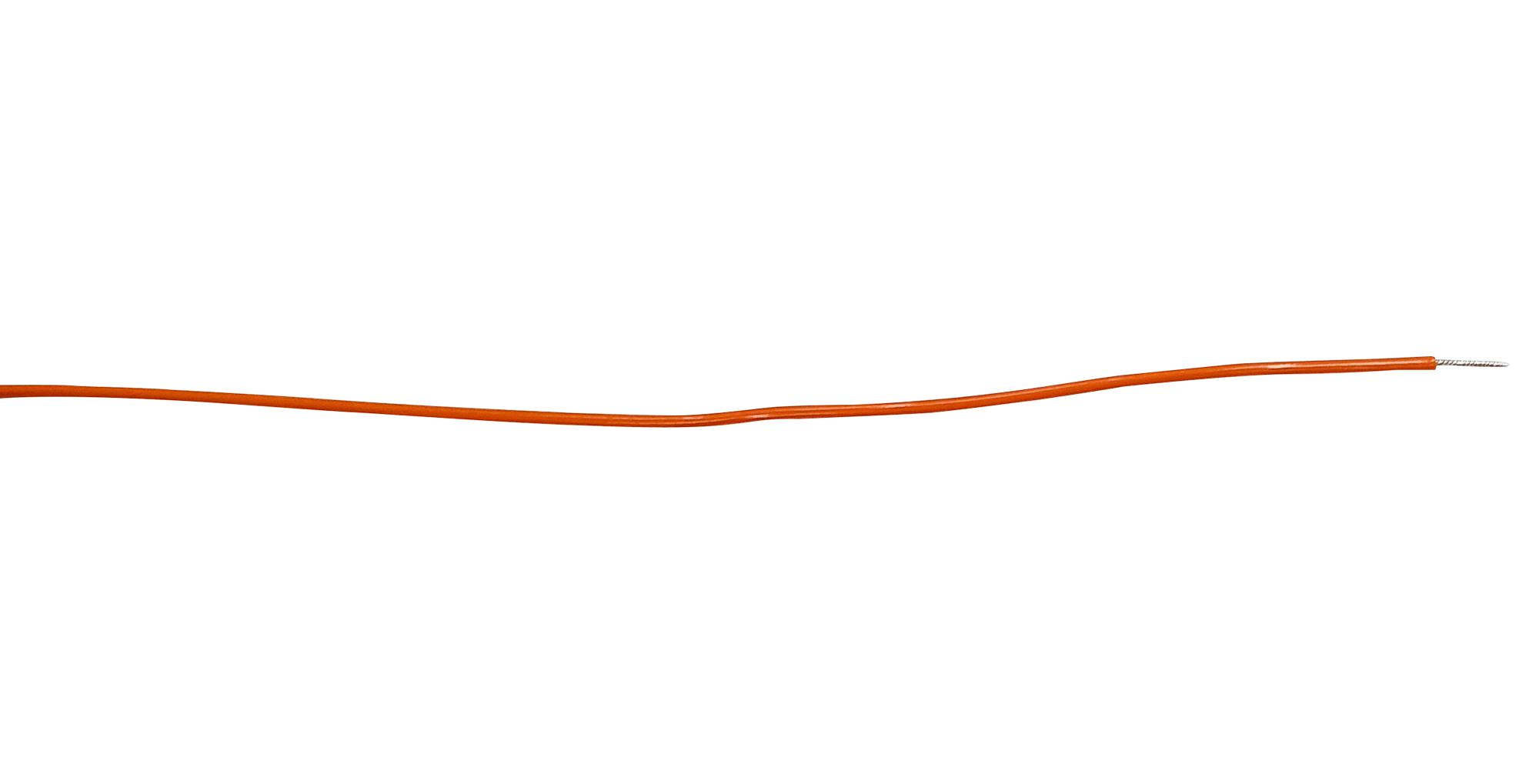

MULTICOMP-PRO PP002597 Hook-Up Wire
This UL1061 Style Stranded Hook-Up Wire is designed for electronic and electrical applications requiring flexibility and high performance. Made of stranded tinned copper conductors with SR PVC insulation, it handles temperatures up to 280°C and voltages of 300V. Available in various gauges, such as 20, 22, 24, and 26 AWG, it features multiple color options for easy identification. Supplied in 305-meter reels or per meter, this wire ensures durability and reliability, suitable for complex wiring projects and automation systems requiring a high temperature range and excellent conductivity.
MULTICOMP-PRO PP002597 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Wire Gauge: 20, 22, 24, 26 AWG
- Conductor Diameter: 1.8 mm (18 AWG), 1.5 mm (20 AWG), 1.15 mm (22 AWG), 1.0 mm (26 AWG)
- Number of Strands: 34/0.18 (18 AWG), 17/0.16 (20 AWG), 11/0.16 (22 AWG), 7/0.16 (26 AWG)
- Insulation Diameter: 1.8 mm (18 AWG), 1.5 mm (20 AWG), 1.15 mm (22 AWG), 1.0 mm (26 AWG)
- Cable Length: Available in 305m reels or per meter
- Color Options Include: Black, Brown, Red, Yellow, Green/Yellow, Blue, Grey, White, Orange
- UL Recognition: File no. E352035
- Compliance: RoHS, SAX compliant
Buy the Buy UL UL1061 Style Stranded Hook-Up Wire Part Number PP002597 Online
Order UL1061 Style Hook-Up Wire online today for your electrical projects. This high-quality stranded wire features tinned copper conductors, SR PVC insulation, and is rated for 280°C and 300V. Available in multiple gauges and colors, it is ideal for electrical and electronic applications that demand flexibility, durability, and high-performance standards. Delivered in 305-meter reels or per meter, this wire ensures excellent conductivity and reliability. Perfect for automation, control systems, and wiring harnesses, it provides safety and lasting performance for demanding environments.
Get UL1061 Style Stranded Hook-Up Wire PP002597 today—crafted with high-quality tinned copper and SR PVC insulation for reliable electrical connections.
