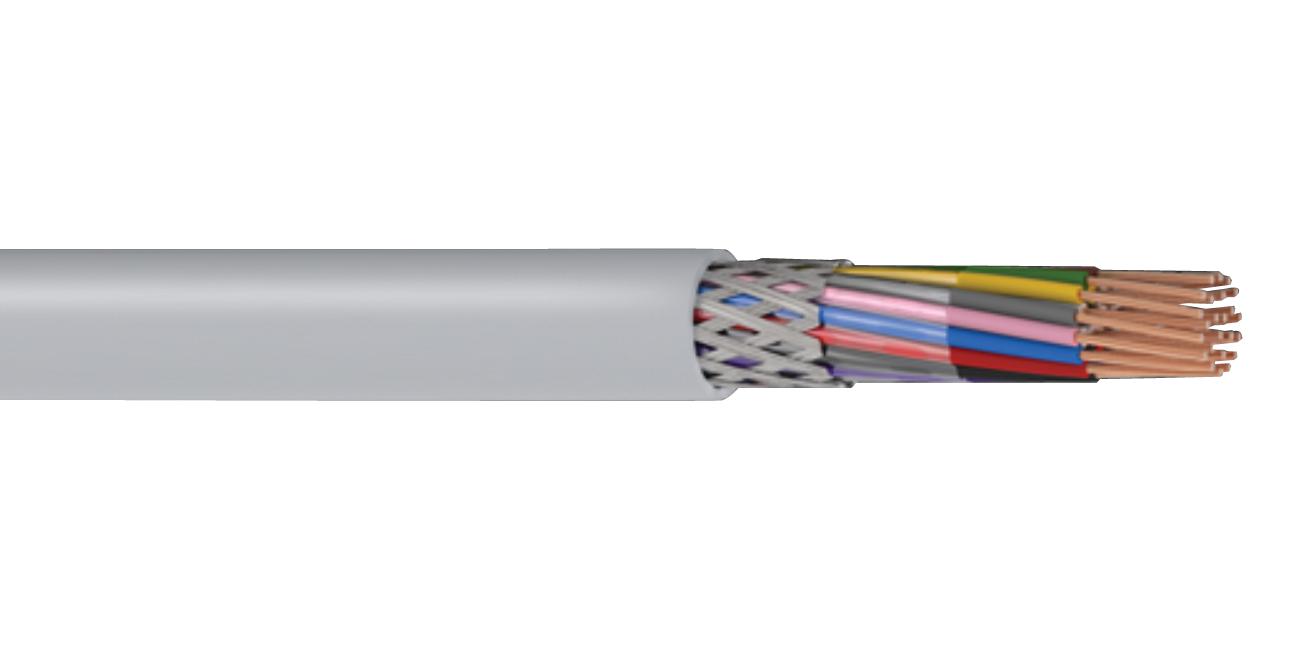

MULTICOMP-PRO PP002612 Signal Cable
LiYCY multicore cables are flexible, RoHS-compliant wiring solutions designed for signal transmission in electronic, computer, and control systems. They feature PVC insulation and sheath, tinned copper wire braid shielding, and optional core configurations from 2 to 7 cores with cross-sectional areas ranging from 0.14mm² to 0.5mm². These cables operate within -30°C to +180°C, with a voltage rating of 250V and test voltage of 2 1.2kV, ensuring electromagnetic compatibility and durability for fixed installations, making them ideal for sensitive electronic connections and industrial applications.
MULTICOMP-PRO PP002612 Signal Cable Specifications:
- Voltage Rating: 250V
- Temperature Range: -30°C to +180°C fixed, -5°C to +70°C during Installation
- Test Voltage: 2 1.2kV
- Minimum Bending Radius: 6 x overall diameter for fixed installation
- Core Identification: White, Brown, Green, Yellow, Grey, Pink, Blue (depending on core count)
- Construction: Conductor - Class 5 Fine Stranded Bare Copper; Insulation - PVC; Sheath - PVC; Screen - Tinned Copper Wire Braid
- Dimensions: No. of Cores varies from 2 to 7; Cross-Sectional Area ranges from 0.14mm² to 0.5mm²; Outer Diameter from 4.2 mm to 6.4 mm
- Weight: 40-67 kg/km depending on core count and cross-sectional area
- Standards: VDE 0482-332-1-2, IEC 60332-1-2, EN 60811-2-1
Buy the Buy Multicomp LiYCY Multicore Cable Part Number PP002612 Online
Purchase the high-quality Multicomp LiYCY multicore cable online now to benefit from durable, flexible, and RoHS-compliant wiring solutions. These cables feature PVC insulation and sheath, tinned copper wire braid shielding, and are suitable for signal transmission in electronic, control, and computer systems. Available in various core counts and sizes, they meet international safety standards, operate efficiently from -30°C to +180°C, and provide excellent electromagnetic compatibility. Secure your supply by ordering online today for fast delivery and reliable performance in your applications.
Order your Multicomp Series PP002612 multicore cable today and ensure reliable signal transmission in your electronic or industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002612?
You can click on the BUY or RFQ button to purchase PP002612 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002612?
You can download the PP002612 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002612?
MULTICOMP-PRO
