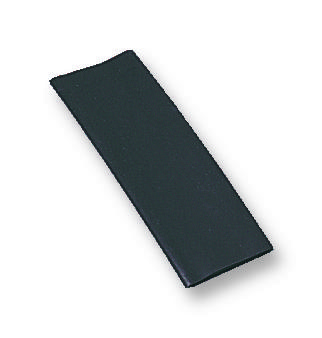

MULTICOMP-PRO PP002713 Heatshrink Tubing
This 2:1 normal wall heatshrink tubing offers flexibility and reliable protection for temperature-sensitive components. Manufactured with radiation cross-linked polyolefin, it is halogen-free and RoHS compliant. Suitable for electrical insulation, wire bundling, and protection applications, it shrinks at low temperatures with a full recovery at 120°C. It features excellent mechanical properties, dielectric strength of 215kV/mm, and withstands temperatures from -55°C to +125°C. Available in multiple sizes and colors, it provides a durable, insulating solution for various electrical and electronic projects.
MULTICOMP-PRO PP002713 Heatshrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 45%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10^4 Ω·cm
- Flammability: FMVSS302 Pass
- Temperature Rating: -55°C to +125°C
- Material: Radiation cross-linked polyolefin
- Color Options: Black, Brown, Blue, White, Red, Yellow
- Dimensions: varies by size (e.g., 1.6mm to 50.8mm internal diameter)
Buy the Buy PrO-POWER Heatshrink Tubing Part Number PP002713 Online
Secure your electrical projects by ordering the PrO-POWER heatshrink tubing online today. Engineered with a 2:1 shrink ratio and operating temperatures from -55°C to +125°C, this halogen-free, RoHS compliant tubing ensures excellent mechanical and electrical protection. Suitable for wire insulation, bundling, and cable protection, its low shrink temperature makes installation quick and easy. Available in multiple sizes and colors, it offers durable, reliable insulation for sensitive components. Purchase now to benefit from fast delivery and trusted quality.
Order your PrO-POWER Series PP002713 heat shrink tubing today and ensure your electronic components are protected with high-quality insulation and reliable shrinkage performance.
