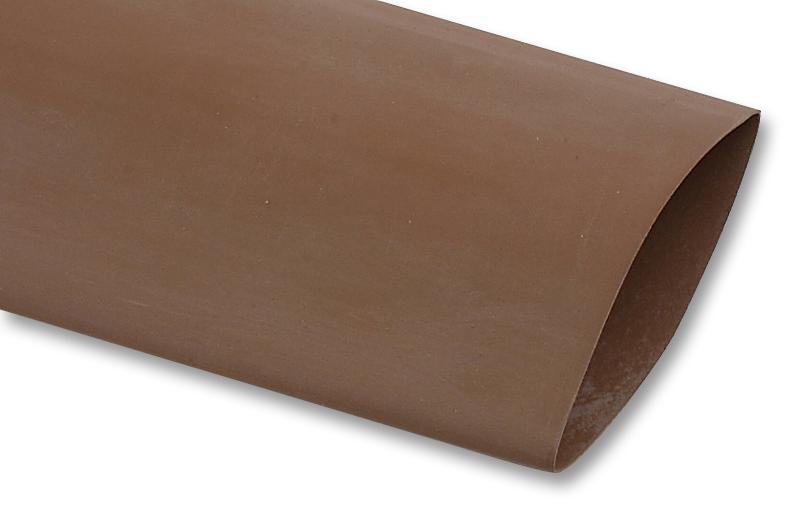

MULTICOMP-PRO PP002782 Heatshrink Tubing
This 2:1 ratio wall heatshrink tubing is halogen-free, flexible, and designed for temperature-sensitive applications like cable insulation and component protection. Manufactured from radiation cross-linked polyolefin, it shrinks at low temperatures with full recovery at 120°C and a minimum shrink temperature of 70°C. It offers excellent mechanical and electrical performance, including high tensile strength of 210.4 MPa, elongation up to 2200%, dielectric strength of 215 kV/mm, and meets industry standards like Sony-SS-00259 and UL FMVSS302. Available in multiple colors and sizes, it ensures durable, insulated, and reliable connections for electrical and electronic projects.
MULTICOMP-PRO PP002782 Heatshrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Material: Radiation cross-linked polyolefin
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10^4 Ω·cm
- Flammability: FMVSS302 Pass
- Temperature Resistance: Up to 125°C
- Color Options: Black, Brown, Blue, White, Red, Yellow, Green, Grey
- Size Range: 1.6mm to 50.8mm internal diameter, lengths up to 1.2m or reel lengths
- Standards: Meets Sony-SS-00259, UL 224, UL FMVSS302
Buy the Buy PRO-POWER Heatshrink Tubing Part Number PP002782 Online
Order the PRO-POWER PP002782 heatshrink tubing online today and enjoy fast delivery, top quality, and reliable electrical insulation for your projects. Its halogen-free, flexible design shrinks at low temperatures to protect sensitive components, ensuring durability and safety for wiring, cable repairs, and electrical enclosures. Compatible with industry standards, this tubing offers excellent mechanical strength, electrical properties, and color options to meet diverse application needs. Secure your supply and optimize your work with this dependable, easy-to-use solution for electrical protection and insulation.
Buy PRO-POWER PP002782 now and experience unmatched reliability and performance in electrical insulation and cable protection.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002782?
You can click on the BUY or RFQ button to purchase PP002782 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002782?
You can download the PP002782 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002782?
MULTICOMP-PRO
