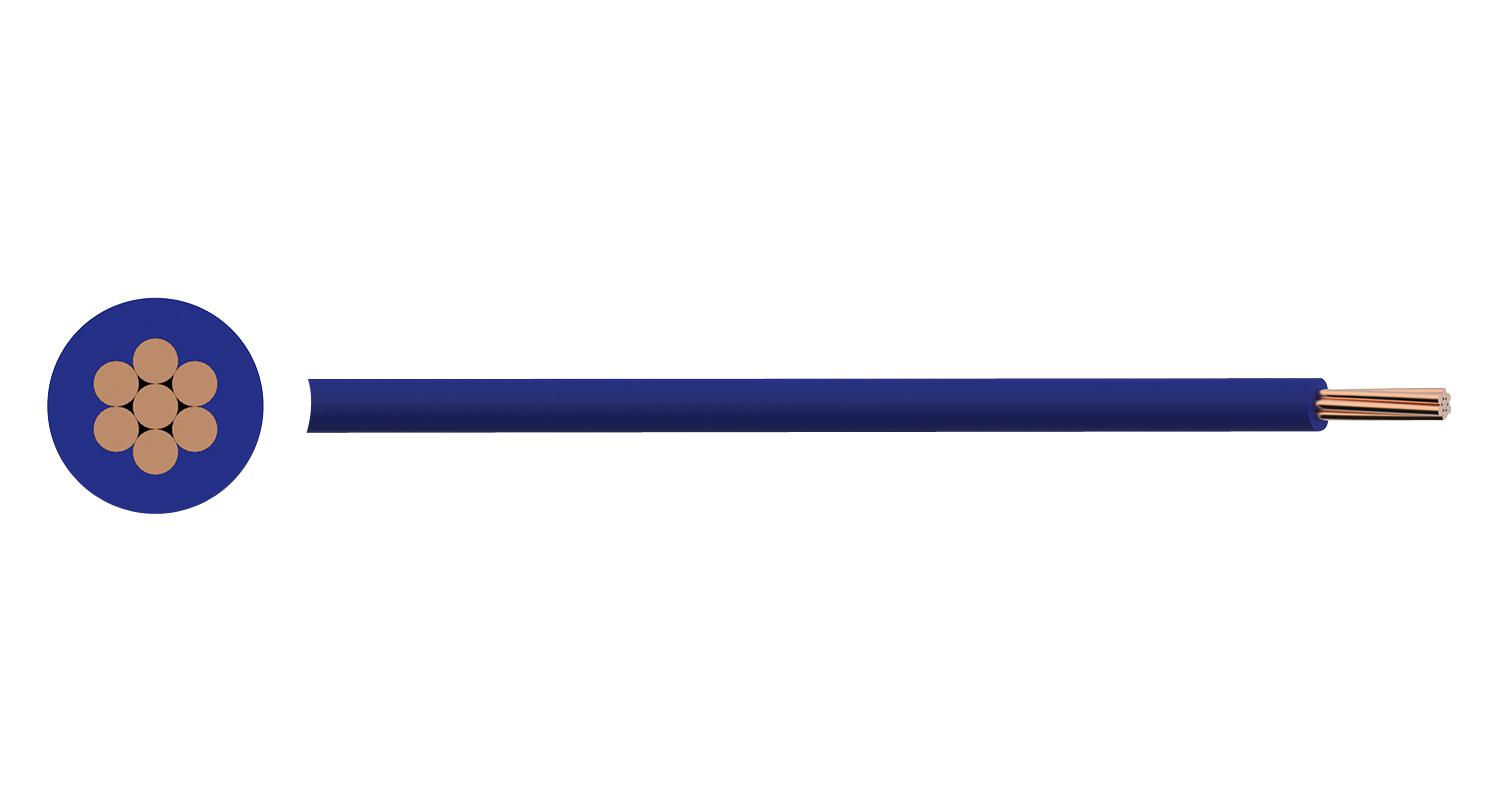

MULTICOMP-PRO PP6491B250MMBLU LSZH Conduit Wire
6491B HO7Z-R is LSZH insulated conduit wire suitable for fixed, protected installations, especially where fire, smoke, and toxic fumes pose risks. Constructed with annealed copper conductors and low smoke zero halogen insulation, it meets BS EN standards and is approved by BASEC. Rated for 450/750V and temperatures up to +90°C, it offers reliable performance in conduit, trunking, and wall installations with minimal bending radius. Available in multiple colors and sizes, this wire ensures safety, flexibility, and compliance in industrial wiring applications.
MULTICOMP-PRO PP6491B250MMBLU LSZH Conduit Wire Specifications:
- Voltage Rating: 450/750V
- Temperature Rating: Fixed: 0°C to +90°C
- Conductor: Class 2 stranded annealed copper conductor
- Insulation: LSZH Type EI5 according to BS EN 50363
- Insulation Colour: Black, Blue, Brown, Green/Yellow, Grey
- Minimum Bending Radius: 4 times overall diameter
- Construction: 7 x 0.53mm or 7 x 0.67mm strands for 1.5mm² and 2.5mm² sizes
- Overall Diameter: 3.4 mm (1.5mm²), 4.1 mm (2.5mm²)
- Weight: 22 kg/km (1.5mm²), 35 kg/km (2.5mm²)
- Conductor Resistance at 20°C: 12.1 Ω/km (1.5mm²), 7.41 Ω/km (2.5mm²)
- De-Rating Factors apply for ambient temperatures above 30°C
- Standards: BS EN 50525-3-41, BS EN 60228, BS EN 50363, BASEC approved
Buy the Multicomp 6491B – Reliable LSZH Conduit Wire for Industrial Applications
Purchase Multicomp LSZH conduit wire online today for safe, reliable, and fire-resistant electrical installations in industrial settings. Available in multiple sizes and colors, this wire features annealed copper conductors and low smoke halogen-free insulation, ensuring compliance with international standards. Designed for conduit, trunking, and protected fixed installations, it offers excellent performance at 450/750V and up to +90°C. Enhance your electrical system's safety and efficiency by ordering now for fast delivery and competitive prices.
Get Multicomp 6491B today—built for safety, flexibility, and long-lasting durability in industrial wiring projects.
