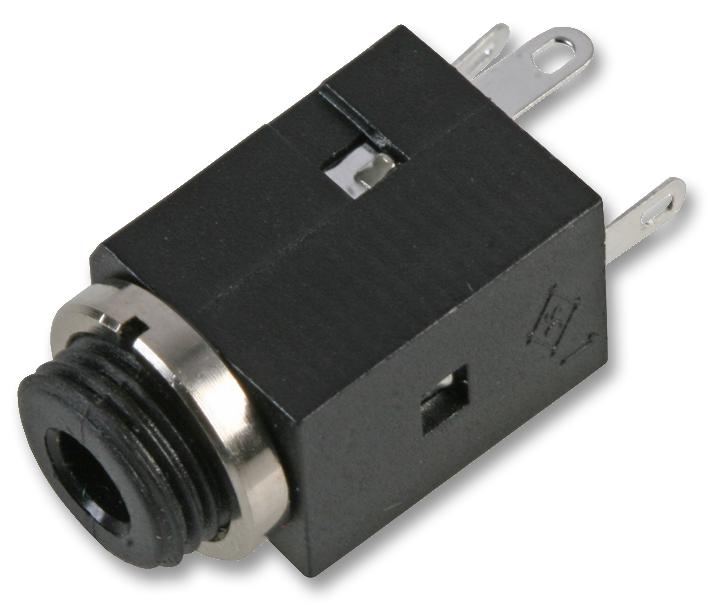

MULTICOMP PRO PS000175 3.5mm Audio Jack
This 3.5mm phone jack is designed for reliable audio connections in various electronic devices. It features a durable PBT housing in black, solder tag mounting for easy installation, and is suitable for chassis mounting. The contact terminals are made of phosphor bronze, silver plated for excellent conductivity and corrosion resistance. Dimensions ensure compatibility with standard 3.5mm audio jack requirements, with a contact resistance of 30mΩ maximum and insulation resistance of 100mΩ minimum at DC 500V. It withstands AC 500V for one minute, ensuring safe operation in multiple applications.
MULTICOMP PRO PS000175 3.5mm Audio Jack Specifications:
- Gender: Jack
- Contact Termination: Solder Tag / Through Hole
- Mounting Type: Chassis
- Pin Diameter: 3.5mm
- Connector Colour: Black
- Contact Resistance: 30mΩ max
- Insulation Resistance: 100mΩ min at DC 500V
- Dielectric Withstand Voltage: AC 500V for one minute
- Material of Earth Terminal: Phosphor Bronze, Silver Plated
- Material of Ring Spring: Phosphor Bronze, Silver Plated
- Material of Tip Spring: Phosphor Bronze, Silver Plated
- Material of Nut: Brass, Nickel Plated
- Housing Material: PBT Black
- Dimensions: Millimetres
- Part Number: PS000175
Buy the Multicomp PS000175 – Reliable 3.5mm Phone Jack for Industrial Applications
Experience dependable audio connections with this 3.5mm phone jack featuring solder tag terminals and a robust black PBT housing. Perfect for chassis mounting in electronic devices, it boasts high-quality phosphor bronze silver-plated contacts that ensure optimal conductivity and corrosion resistance. Rated for AC 500V for one minute and with excellent insulation resistance, this jack is ideal for a wide range of audio and electronic applications requiring secure and durable connections. Purchase online today for quality and reliability in your projects.
Get multicomp PS000175 today—built for precision, durability, and reliable audio connections in electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PS000175?
You can click on the BUY or RFQ button to purchase PS000175 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PS000175?
You can download the PS000175 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PS000175?
MULTICOMP PRO
