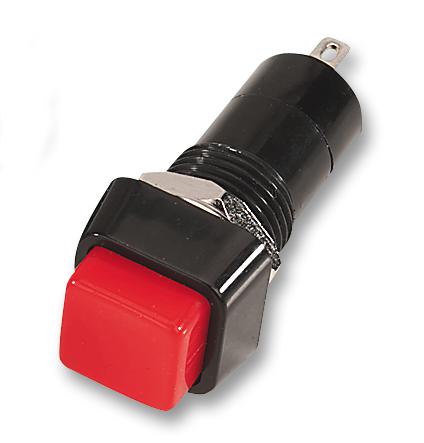

MULTICOMP PRO R1323A05BR Industrial Pushbutton Switch
The Multicomp Pro R13-23 series pushbutton switches are mechanically operated components with a two-pin SPST OFF-(ON) function, rated at 8A 125V AC and 1.5A 250V AC. They feature high insulation resistance of at least 100 megaohms DC 500V, dielectric strength of 1000VAC, and are constructed with durable nylon and ABS materials. Suitable for industrial automation, power management, and process control, these switches have a black nylon frame, ABS actuator, and mounting hole design. Their versatility and robust specs make them ideal for demanding applications requiring reliable operation and safety standards.
MULTICOMP PRO R1323A05BR Industrial Pushbutton Switch Specifications:
- Rating: 8A 125V AC, 1.5A 250V AC
- Contact Resistance: 50mΩ Max
- Insulation Resistance: DC 500V 100MO Min
- Dielectric Strength: AC 1,000V 1 minute
- Switch Function: 2P SPST OFF-(ON)
- Material: Frame: Black, Nylon#66; Actuator: Black, ABS; Base: Black, Nylon#66+15%GF
- Dimensions: Millimetres
- Part Number: R1323A05BR
- Mounting Hole: 2.0 mm diameter
- Maximum Operating Temperature: Not specified
- Durability: Mechanical life approximately 10,000 cycles
- Rated Load: 8A at 125V AC, 1.5A at 250V AC
Buy the Buy Multicomp Pushbutton Switch Part Number R1323A05BR Online
Discover the versatility and reliability of the Multicomp Series R1323A05BR industrial pushbutton switch. Designed for demanding industrial applications, it features a robust nylon and ABS construction, rated at 8A 125V AC and 1.5A 250V AC. With high insulation resistance and dielectric strength, it ensures safety and durability. Easy to install with a 2.0 mm mounting hole, this switch is perfect for automation, control panels, and process automation requiring high performance and safety standards. Order online now for fast delivery!
Order your Multicomp Series R1323A05BR industrial pushbutton switch today and ensure reliable switching performance in your automation projects.
