MULTICOMP-PRO R134G7210300CB RF coaxial cable assembly

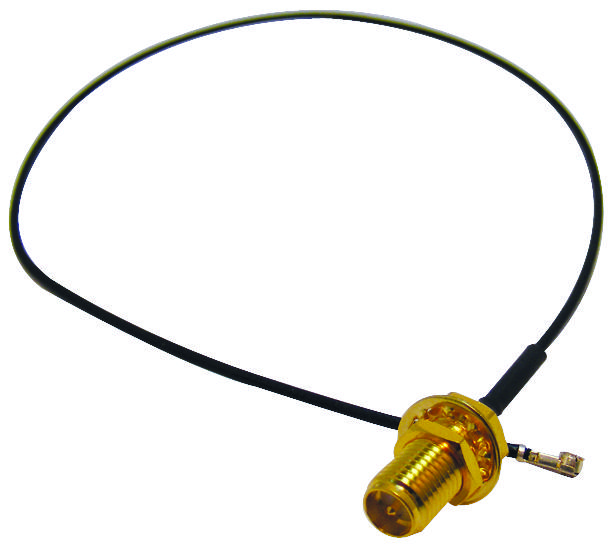

The RF coaxial cable assembly features an IP67 waterproof rating with a 300mm length, consisting of a black low-loss 1.37mm cable. It connects an RP-SMA bulkhead jack to a U.FL plug, ideal for outdoor RF communication systems operating up to 3 GHz. Supporting 50 ohms impedance, it handles up to 60V rms, with dielectric withstand of 200V rms. The assembly is suitable for frequencies from DC to 3 GHz, with minimal insertion loss of -1.3dB and maximum SWR of 1.4:1. Designed for durability and high performance in harsh environments.
MULTICOMP-PRO R134G7210300CB RF coaxial cable assembly Specifications:
- Connector Type A : RP-SMA IP67 Bulkhead Jack
- Connector Type B : U.FL Plug
- Cable Assembly Type : RF Coaxial
- Impedance : 50Ω
- Frequency Range : DC to 3GHz
- Max. Working Voltage : 60V rms
- Min. Dielectric withstanding Voltage : 200V rms
- Min. Insulation Resistance : 500MΩ
- Cable Length : 300mm
- External Diameter : 1.37mm
- Jacket Colour : Black
- Temperature Range : -20°C to +70°C
- Insertion Loss : Up to -1.3dB
- VSWR : 1.4:1
- Application : Outdoor RF communication, imaging, video systems
- Waterproof Rating : IP67
Buy the Multicomp Pro R-134G7210300CB – Reliable RF Coaxial Cable for Industrial Applications
Purchase the Multicomp Pro RF coaxial cable assembly with RP-SMA bulkhead and U.FL connectors, designed for outdoor RF applications. Featuring an IP67 waterproof rating, 300mm cable length, and 50 ohms impedance, it supports frequencies up to 3 GHz. Its durable construction ensures reliable performance in harsh environments. The assembly handles voltages up to 60V rms and withstands dielectric stresses of 200V rms, making it suitable for RF communication, imaging, and video systems. Ideal for professional and industrial setups requiring high-quality connectors and weatherproof design.
Get Multicomp Pro R-134G7210300CB today—built for outdoor RF communication with IP67 waterproof protection and high-frequency performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO R134G7210300CB?
You can click on the BUY or RFQ button to purchase R134G7210300CB from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part R134G7210300CB?
You can download the R134G7210300CB datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of R134G7210300CB?
MULTICOMP-PRO
