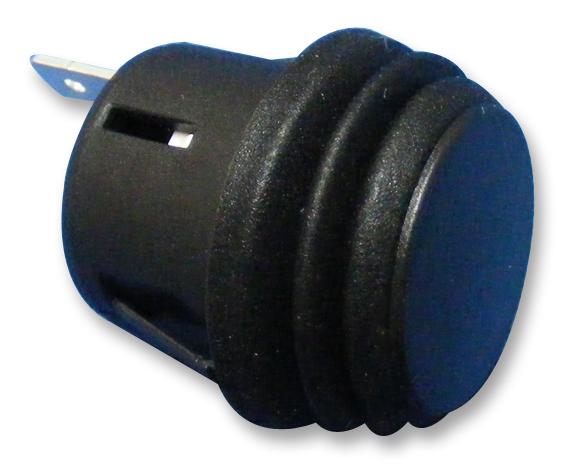

MULTICOMP PRO R13527D202BB Industrial Pushbutton Switch
The R13-527D2-02-BB is a rugged SPST pushbutton switch with IP56 ingress protection for industrial environments. Featuring silver alloy contacts and copper alloy terminals plated with silver, it ensures reliable electrical performance. Constructed with a durable nylon 66 frame and nylon 66/PC actuator (94-V2), it offers robust operation. Rated for 16A at 125V and 6A at 250VAC, with an insulation resistance of 100 MΩ at DC 500V and dielectric strength of 1500VAC for safety and longevity. Suitable for applications requiring reliable, sealed switching solutions.
MULTICOMP PRO R13527D202BB Industrial Pushbutton Switch Specifications:
- Rating: 16A 125V, 6A 250V AC, 1/2 HP 125/250V AC
- Max. Contact Resistance: 50mΩ
- Min. Insulation Resistance: 100MΩ at 500V DC
- Dielectric Strength: 1500V AC 1 minute
- Operating Temperature: -25°C to 85°C
- Frame Material: Nylon 66
- Actuator Material: Nylon 66 / PC (94-V2)
- Terminals: Silver plated copper alloy
- Contacts: Silver alloy
- Ingress Protection Rating: IP56
- Rated Current: 16A at 125V / 6A at 250V
- Dimensions and Mounting Hole: 19.8 mm diameter, 40.2 mm spacing
Buy the Multicomp Series SPST Pushbutton Switch: R13-527D2-02-BB
Order the Multicomp Series R13-527D2-02-BB industrial pushbutton switch today to enjoy reliable operation with IP56 sealing, high current ratings, and durable nylon construction. Perfect for harsh environments, this SPST switch features silver alloy contacts for high electrical performance and zinc-plated terminals for corrosion resistance. Its robust design ensures longevity and performance across a wide temperature range, making it ideal for industrial control panels, machinery, and automation systems. Purchase now for fast delivery and dependable service.
Get Multicomp Series R13-527D2-02-BB today—built for durability and reliable switching in industrial environments.
