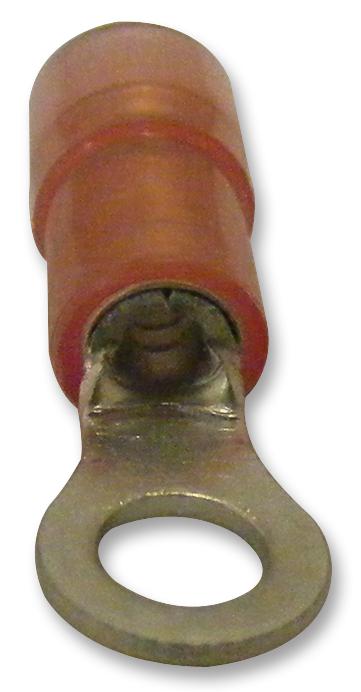

MULTICOMP-PRO RNYDM137 Ring Crimp Terminals
These ring crimp terminals are designed for secure electrical connections, made from copper with nylon insulation for durability and safety. Available in various sizes and colors to match wire gauge and application needs, they feature double crimps with copper sleeves on the barrel for reliable contact. Suitable for use with AWG 22 to 10 wires, rated at 105°C and 600 V, the terminals ensure efficient current flow and safe insulation. The terminals are compatible with specific crimping tools and are ideal for industrial wiring, electrical panels, and automotive wiring enhancements.
MULTICOMP-PRO RNYDM137 Ring Crimp Terminals Specifications:
- Maximum Electric Current: 9-50 Amperes depending on wire size
- Maximum Electrical Rating: 600 V, 105°C
- Insulation Material: Nylon
- Insulation Colour: Red (22-16 AWG), Blue (16-14 AWG), Yellow (12-10 AWG)
- Terminal Material: Copper
- Wire Range: 22-10 AWG
- Dimensions: Vary by size, with length approximately 0.728 to 1.094 inches (18.5 to 27.8 mm)
- Double Crimp: With copper sleeve on barrel
- Stud Size: #4, #8, #10, #12, with corresponding dimensions
- Crimping Part Numbers: RNYD1-3.2, RNYD1-4, RNYD1-5, RNYD2-5, RNYD2-6, RNYDL1-4, RNYDL2-4, RNYD5-3.7, RNYD5-6
Buy the Buy Multicomp Ring Crimp Terminals Part Number RNYDM137 Online
Enhance your electrical wiring with our high-quality ring crimp terminals, available online. Crafted from durable copper with nylon insulation, these terminals provide safe, reliable connections for a range of wire gauges from AWG 22 to 10. Their double crimp design with copper sleeves on the barrel ensures maximum contact and minimal resistance, making them ideal for industrial, automotive, and electrical panel wiring. Order now to experience fast delivery and trusted performance in your electrical projects.
Buy Multicomp RNYDM137 ring crimp terminals now and ensure secure, reliable electrical connections for industrial and automotive applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO RNYDM137?
You can click on the BUY or RFQ button to purchase RNYDM137 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part RNYDM137?
You can download the RNYDM137 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of RNYDM137?
MULTICOMP-PRO
