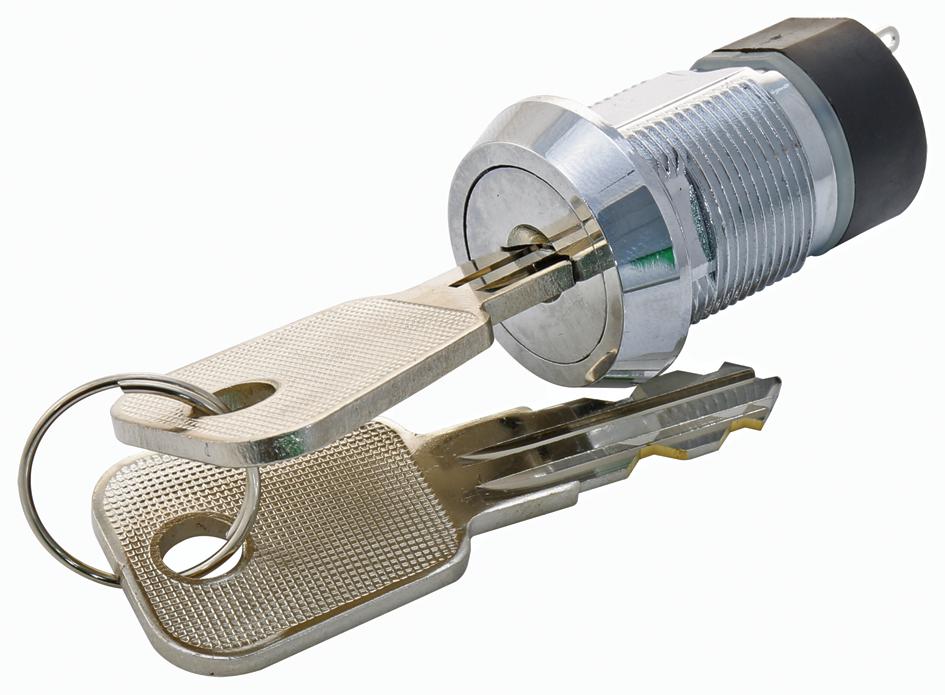

MULTICOMP PRO S286B2 Industrial Locking Switch
Keylock switches are robust electrical devices designed with zinc alloy die-cast housing, chrome plating, and a 5-disk tumbler mechanism for reliable locking. They feature reversible double cut brass keys, nickel-plated and silver-plated contacts and terminals, and offer 150 combinations for enhanced security. Suitable for various industrial applications, these switches have a contact rating of 4A at 125V AC and 2A at 250V AC, with excellent insulation resistance and dielectric strength. Compatible with several circuit configurations, they ensure safe and precise operation in complex electrical environments.
MULTICOMP PRO S286B2 Industrial Locking Switch Specifications:
- Housing: zinc alloy die cast, chrome plated
- Number of Combinations: 150
- Contact Rating: 4A at 125V AC, 2A at 250V AC
- Max. Contact Resistance: 10mΩ
- Insulation Resistance: 500MQ minute (500V DC)
- Dielectric Strength: 1,500V AC for 1 minute
- Material: Brass key, nickel plated, silver-plated contacts and terminals
- Pole and Position: 2 positions (off-on or on-on), 4 terminal configuration
- Key Pull: Both off position and no key pull options available
- Dimensions: Refer to official datasheet for precise measurements
- Type: DPST (S286A), SPDT (S286B)
Buy the Multicomp S286B2 – Reliable Locking Switch for Industrial Applications
Order the Multicomp S286B2 locking switch online today to enjoy secure operation with 150 combination settings, robust zinc alloy housing, and rated for demanding industrial control systems. Designed with a durable mechanism, silver-plated contacts, and key pull features, this switch provides reliable safety features suitable for various electrical applications. Ensure high performance with its excellent insulation resistance and dielectric strength. Purchase online now for fast delivery and expert support, maintaining your project's integrity and safety standards.
Get Multicomp S286B2 today—built for secure locking and long-lasting electrical performance in industrial environments.
