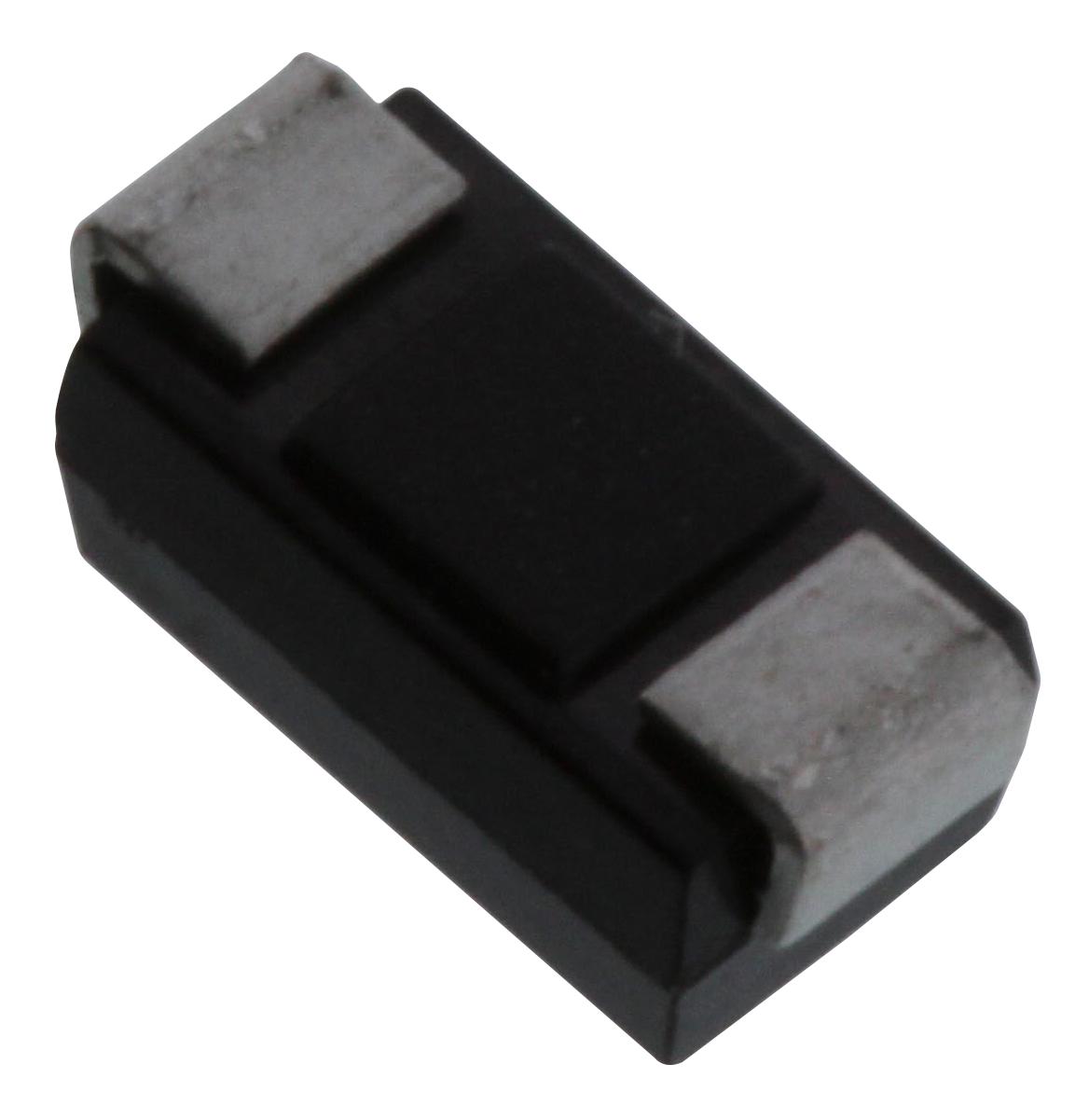

MULTICOMP PRO S2MA Surface Mount Rectifier
The surface mount glass passivated rectifier is designed for efficient surface-mounted applications, offering low reverse leakage current and low forward voltage drop. Capable of handling high current, it features a molded plastic case with UL 94V-0 flammability rating and polarity indicated by a color band for cathode identification. With a reverse voltage of 1000V and a forward current of 2A, it is suitable for AC/DC rectification in resistive or inductive loads. The component also provides excellent thermal stability and is ideal for space-constrained electronic circuits.
MULTICOMP PRO S2MA Surface Mount Rectifier Specifications:
- Case: Molded Plastic
- Polarity: Colour band denotes cathode
- Weight: 0.002 ounces, 0.053 grams
- Mounting Position: Any
- Reverse Voltage: 1000 Volts
- Forward Current: 2 Amperes
- Max. RMS Voltage: 700 V
- Max. DC Blocking Voltage: 1000 V
- Peak Forward Surge Current: 60A (8.3ms single half sine-wave)
- Max. Recurrent Peak Reverse Voltage: 1000 V
- Max. RMS Voltage: 700 V
- Peak Forward Voltage at 2A: 1.1 V
- Max. Reverse Current at 25°C: 5 A
- Operating Temperature Range: -55°C to +145°C
- Dimensions: 0.065 in (1.65 mm) x 0.049 in (1.25 mm) x 0.18 in (4.60 mm)
Buy the Multicomp Series Rectifier: S2MA
Purchase the Multicomp S2MA surface mount glass passivated rectifier online today to ensure reliable circuit performance. Featuring a high reverse voltage of 1000V and a forward current of 2A, this component is ideal for space-constrained rectification applications in both resistive and inductive loads. Its molded plastic case with UL 94V-0 flammability classification guarantees safety and durability. Easy to install and suitable for any mounting position, this rectifier provides excellent thermal stability, making it a perfect choice for demanding electronic systems requiring efficient power conversion.
Buy Multicomp S2MA now and experience unmatched reliability and high current capacity for your surface-mount rectification needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO S2MA?
You can click on the BUY or RFQ button to purchase S2MA from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part S2MA?
You can download the S2MA datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of S2MA?
MULTICOMP PRO
