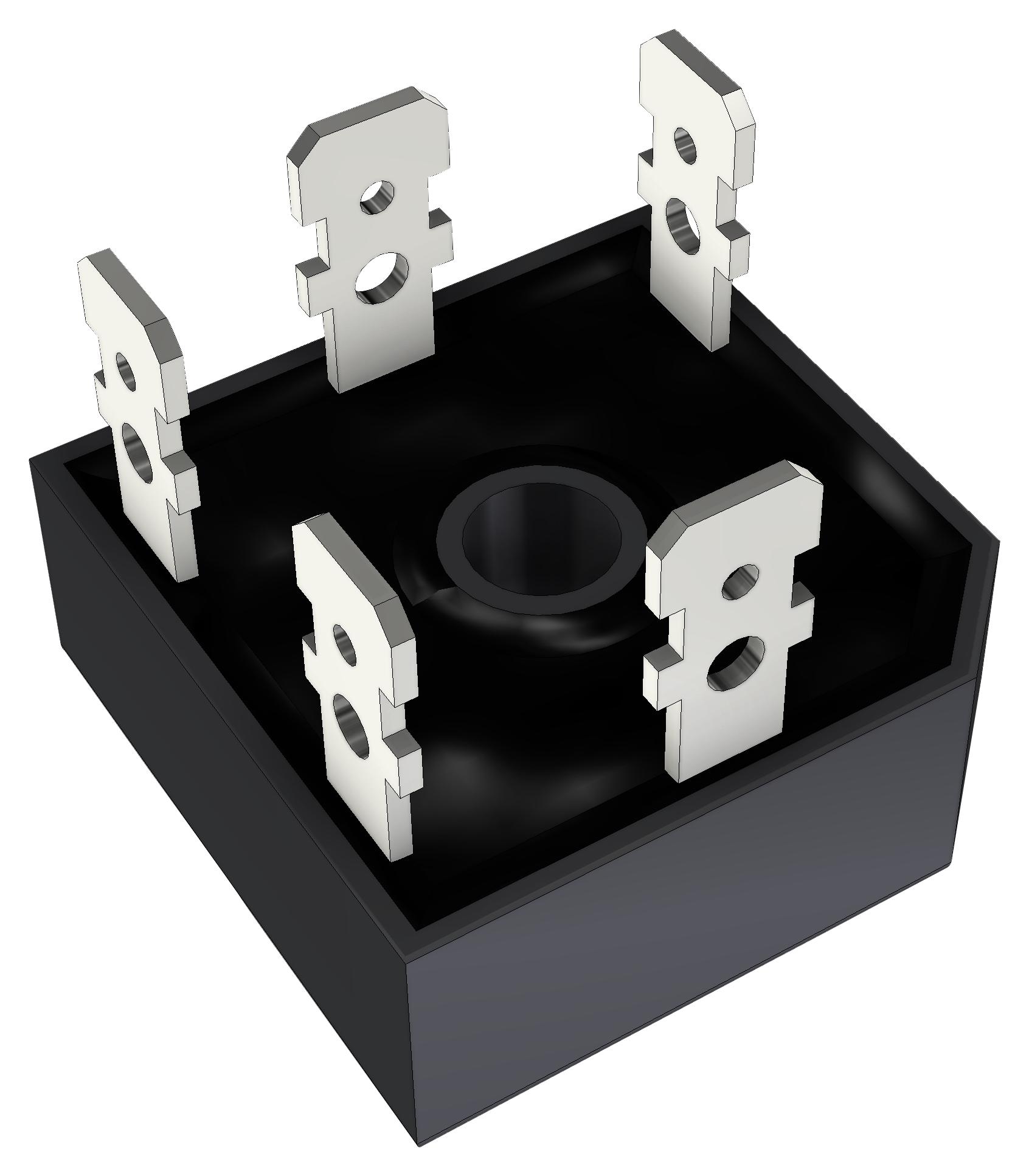

MULTICOMP PRO SBR2506 Three Phase Bridge Rectifier
The SBR2506 is a silicon-passivated three-phase bridge rectifier rated at 25A with a voltage capacity of 600V. It features a diffused junction and low forward voltage drop for high efficiency, making it suitable for industrial power conversion, motor drives, and power supplies. The device has high surge current capability and reliable epoxy case construction with heat sink mounting options, ensuring optimal heat dissipation. Ideal for printed circuit boards, it offers excellent thermal stability and electrical performance for demanding industrial applications.
MULTICOMP PRO SBR2506 Three Phase Bridge Rectifier Specifications:
- Voltage Ratings: Working Peak Reverse Voltage 600V, Peak Repetitive Voltage 1600V, RMS Reverse Voltage 1120V
- Current: Maximum Average Forward Rectified Current 25A, Peak Forward Surge Current 375A
- Forward Voltage Drop: 1.4V at 12.5A/17.5A
- Reverse Current: 10pA at 25°C, 5mA at rated V R
- Thermal Resistance: Junction to Case 1.42 K/W, Case to Heatsink 0.2 K/W
- Operating Temp: -55°C to +160°C, Storage -55°C to +160°C
- Dimensions: Approx. 23.8 mm diameter, mounting hole of 4.9 mm, weight 20 grams
- Isolation Voltage: RMS 2,500V from case to lead, high dielectric strength
- Construction: Epoxy encapsulated with heat sink mount, plated solderable leads
- Certifications: UL Listed, suitable for PCB mounting in industrial environments
Buy the Multicomp Three Phase Rectifier – Reliable Power Module for Industrial Applications
Order the multicomp three-phase bridge rectifier today for robust power conversion, high surge capacity, and reliable operation suitable for industrial applications. With a 25A/600V rating, low forward voltage drop, and excellent thermal performance, it ensures efficient power management and durability. Perfect for motor drives, power supplies, and PCB integration, this device guarantees excellent electrical and thermal stability, making it an essential component for demanding industrial environments. Purchase online now and enhance your power systems with confidence.
Buy multicomp three-phase bridge rectifier now and experience unmatched power efficiency and reliability in your industrial power electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SBR2506?
You can click on the BUY or RFQ button to purchase SBR2506 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SBR2506?
You can download the SBR2506 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SBR2506?
MULTICOMP PRO
