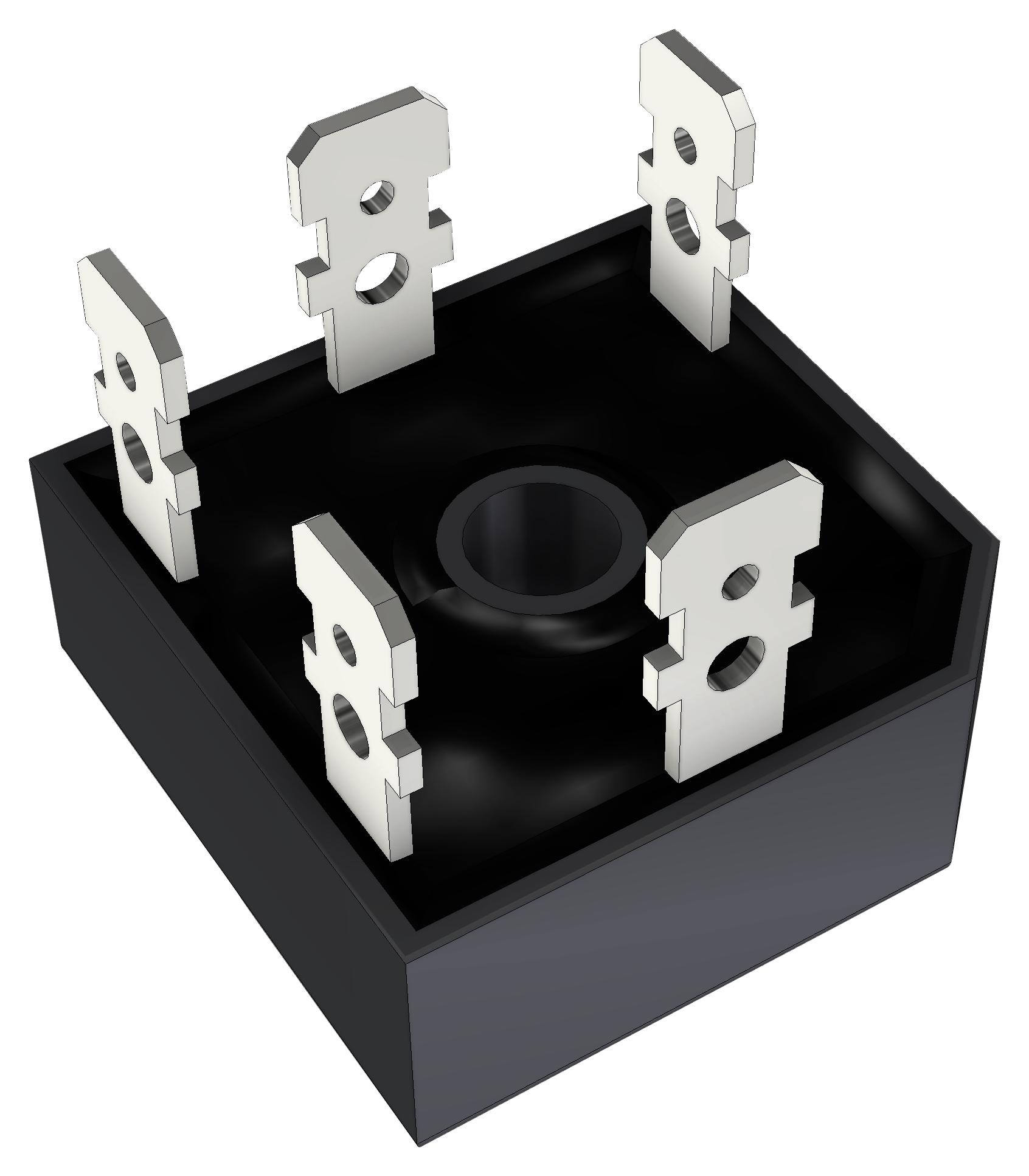

MULTICOMP PRO SBR3502 Three Phase Bridge Rectifier
The three-phase bridge rectifier is silicon passivated, offering high reliability, low forward voltage drop, and high surge current capability. Its epoxy case features a heat sink mounting surface suitable for bolt-down installation with thermal compound, optimizing heat transfer. Designed for resistive, inductive, and capacitive loads, it handles voltages up to 200V and currents of 35A. Its robust construction and thermal features ensure durability in industrial power supply applications, making it an ideal choice for converting AC to DC with efficiency and stability.
MULTICOMP PRO SBR3502 Three Phase Bridge Rectifier Specifications:
- Type: Three phase bridge rectifier
- Current Rating: 35A
- Voltage Rating: 200V
- Peak Repetitive Voltage: 600V
- Working Peak Reverse Voltage: 200V
- Reverse Repetitive Voltage: 275V
- Non-Repetitive Surge Current: 420A
- Forward Voltage Drop per Element: 12V at 12.5A/17.5A
- Maximum Average Forward Rectified Current: 35A
- Thermal Resistance Junction to Case: 1.16 KW
- Operating Temperature Range: -55°C to +160°C
- Isolation Voltage: 2,500V
- Case: Epoxy with heat sink surface
- Mounting: Bolt down with thermal compound, torque max 20 in-lbs
- Dimensions: approximately 24.1 mm diameter, 22 mm height
- Weight: approximately 20 grams
Buy the Multicomp Series SBR Three Phase Bridge Rectifier: SBR3502
Experience superior power conversion with the Multicomp Series SBR3502 three-phase bridge rectifier. Designed for industrial applications, it features silicon passivation for enhanced reliability, low forward voltage drop for efficiency, and robust thermal management for durability. Its epoxy case with a heat sink mounting surface allows easy installation with bolt-down mounting, maximizing heat dissipation. Capable of handling voltages up to 200V and currents of 35A, this rectifier ensures stable operation in resistive, inductive, and capacitive load conditions. Ideal for electronic power supplies, automation systems, and motor drives, it guarantees long-term performance and reliability. Purchase online today for dependable DC conversion solutions.
Buy Multicomp Series SBR3502 three-phase bridge rectifier now and ensure reliable DC power conversion with high surge current capacity and thermal stability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SBR3502?
You can click on the BUY or RFQ button to purchase SBR3502 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SBR3502?
You can download the SBR3502 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SBR3502?
MULTICOMP PRO
