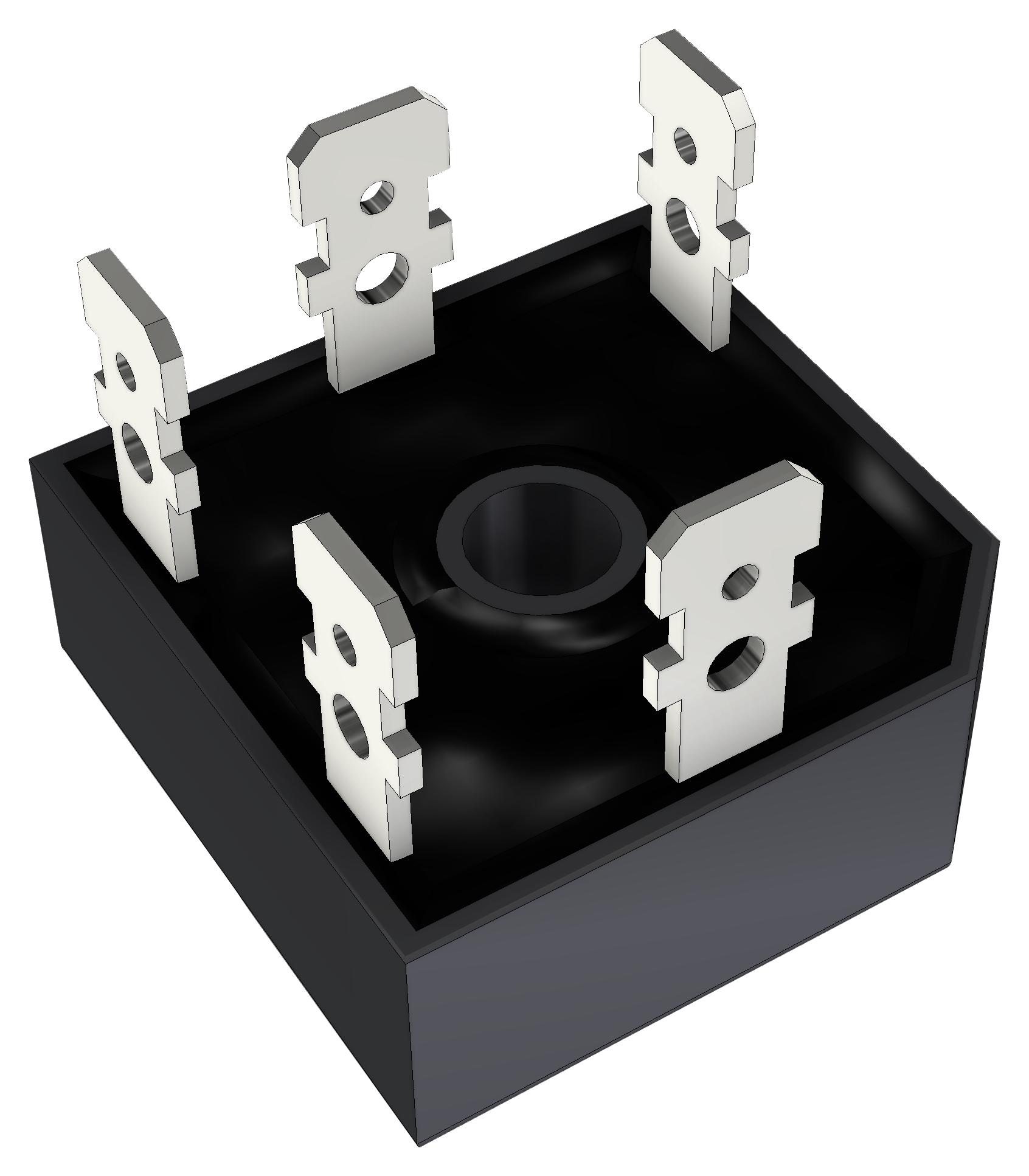

MULTICOMP-PRO SBR3504 Three Phase Bridge Rectifier
The three-phase bridge rectifier is silicon-passivated, offering high reliability, low forward voltage drop, and high surge current capability. Designed for industrial applications, it features diffused junctions, epoxy case with heat sink mounting, and plated solderable leads conforming to MIL-STD-202. Rated for various voltages up to 1600V and currents up to 35A, it ensures optimal performance in rectifying AC to DC power in industrial, automation, and manufacturing environments. Suitable for printed circuit boards with efficient heat transfer and robust construction, it guarantees stability under high load conditions.
MULTICOMP-PRO SBR3504 Three Phase Bridge Rectifier Specifications:
- Case: Epoxy with heat sink mounting
- Terminal type: Plated leads solderable per MIL-STD-202, Method 208
- Mounting torque: 20 in Ibs max
- Maximum Repetitive Voltage (VRRM): up to 1600V
- Working Peak Reverse Voltage (VRWM): up to 1600V
- Peak Non-Repetitive Reverse Voltage (VrsM): up to 1700V
- Maximum Average Forward Rectified Current: 35A
- Peak Surge Current: 500A @ t=8.3ms, 475A @ t=10ms
- Peak Forward Voltage Drop: 12V at 12.5A load
- Thermal Resistance Junction to Case: 1.16 KW
- Operating Temperature Range: -55°C to +160°C
- RMS Isolation Voltage: 2,500V
- Dimensions: Diameter approx. 23.8 mm, height approx. 24.1 mm, socket size for heat sink mounting
Buy the Multicomp Three Phase Rectifier – Reliable Industrial Power Converter for Industrial Applications
Purchase the multicomp three-phase bridge rectifier today and experience reliable, high-capacity power conversion suitable for industrial automation, manufacturing, and power supply systems. With ratings up to 1600V and 35A, diffused junctions, and robust epoxy cases with heat sinks, this rectifier ensures efficient operation under high load conditions. Easily mountable with plated leads, it provides stability and longevity, making it the ideal choice for demanding industrial environments. Elevate your power systems with this high-performance rectifier available for quick online ordering now.
Buy multicomp three phase bridge rectifier now and ensure reliable power conversion with high surge current capacity and efficient heat dissipation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SBR3504?
You can click on the BUY or RFQ button to purchase SBR3504 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SBR3504?
You can download the SBR3504 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SBR3504?
MULTICOMP-PRO
