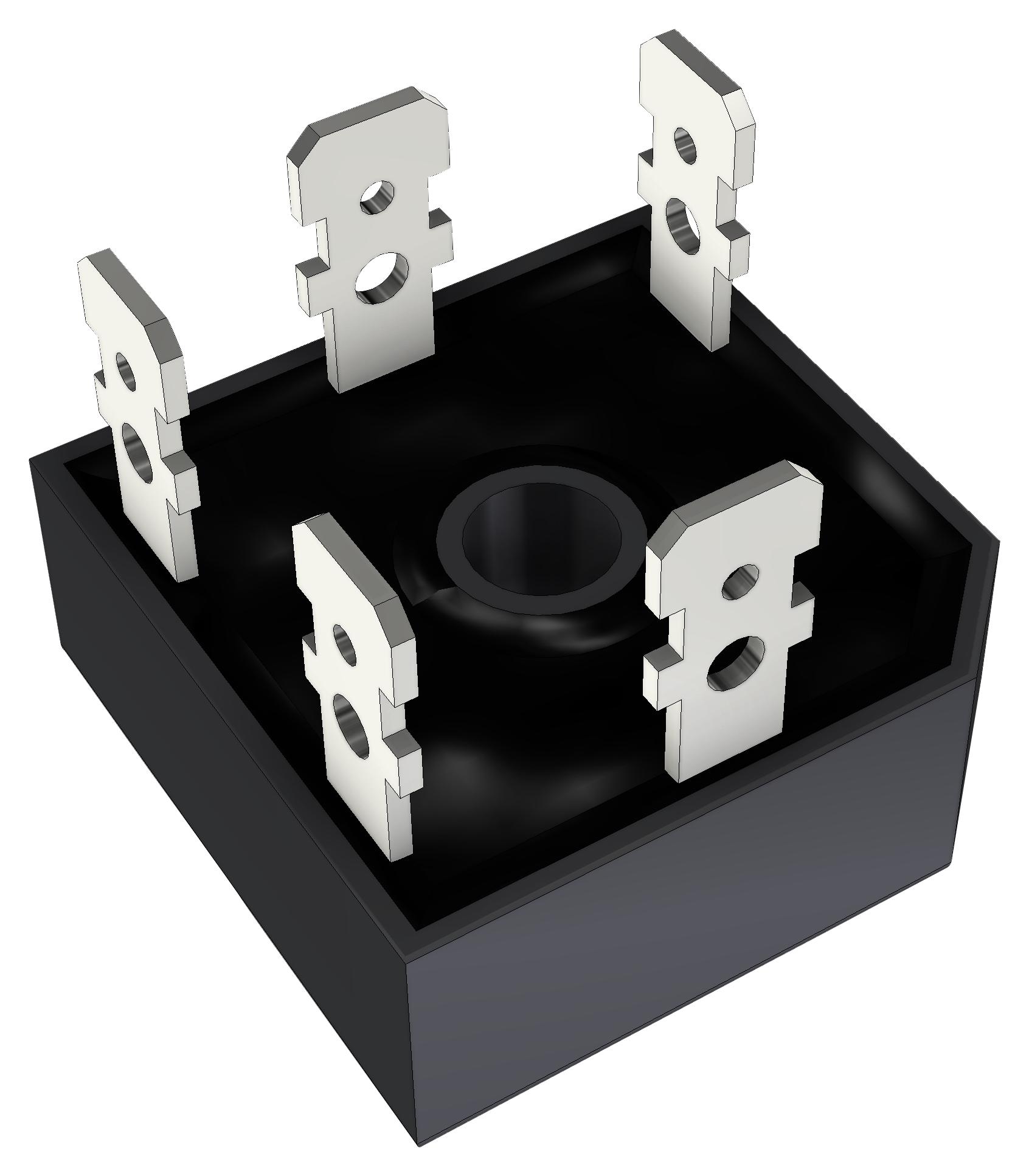

MULTICOMP PRO SBR3512 Three Phase Bridge Rectifier
The SBR3512 is a silicon passivated three-phase bridge rectifier designed for high-current industrial applications. It features diffused junctions, low forward voltage drop, and high surge current capacity, ensuring high reliability and efficient performance. Encased in an epoxy case with heat sinks, it supports bolt-down mounting with thermal compound for optimal heat dissipation. Suitable for resistive, inductive, and capacitive loads, it can operate at temperatures from -55°C to +160°C, providing robust energy conversion with thermal resistance optimized for demanding environments.
MULTICOMP PRO SBR3512 Three Phase Bridge Rectifier Specifications:
- Voltage Ratings: Peak Repetitive Voltage VRRM up to 1600V, Working Peak Reverse Voltage VRWM up to 1600V, RMS Reverse Voltage 1120V
- Current Capability: Maximum rectified current of 35A with non-repetitive surge current up to 500A
- Operating Temperature: -55°C to +160°C, Storage Temperature: -55°C to +160°C
- Thermal Resistance: Junction to case 1.16 kW, Case to heatsink 0.2, Thermal impedance transient 0.001 KW
- Peak Forward Voltage: 12V at 12.5A/17.5A, Forward current rated at 35A, Peak Surge Current 500A, RMS Isolation Voltage 2,500V
- Mounting: Bolt-down with thermal compound, Max torque 20 in-lbs, Encased in epoxy with heat sink support
- Dimensions: Diameter approximately 4.9 inches (124mm), with mounting hole spacing and specifications suitable for industrial use
Buy the Multicomp SBR3512 – Reliable Three-Phase Bridge Rectifier for Industrial Applications
Purchase the multicomp SBR3512 online today for your industrial power needs. Featuring high current capacity, low forward voltage, and robust thermal performance, this silicon passivated rectifier ensures reliable energy conversion. Suitable for resistive, inductive, and capacitive loads, it operates efficiently over a wide temperature range from -55°C to +160°C, making it ideal for demanding environments. Easy to mount with bolt-down design and heat sink compatibility, this rectifier guarantees durability and excellent surge performance, supporting your industrial automation and control projects.
Get multicomp SBR3512 today—built for high-current power conversion and dependable long-term operation in industrial systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SBR3512?
You can click on the BUY or RFQ button to purchase SBR3512 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SBR3512?
You can download the SBR3512 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SBR3512?
MULTICOMP PRO
