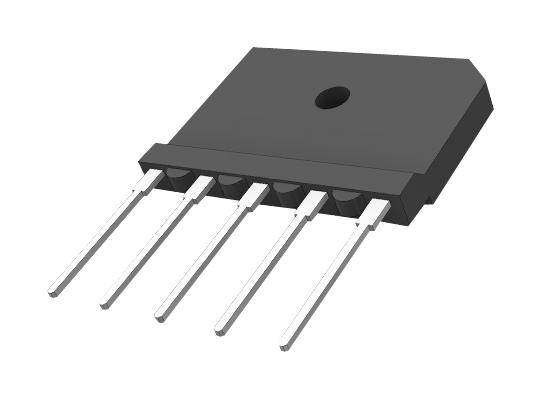

MULTICOMP PRO SGBJ2510 Three Phase Bridge Rectifier
The three-phase bridge rectifier is a reliable, high-performance component featuring glass passivation for enhanced durability. It offers low forward voltage drop, insulation voltage of 2500V, small size, and high thermal conductivity, making it ideal for power supplies, PWM converter input rectification, and DC motor applications. Rated at 25A with voltage ratings up to 1000V, it operates within a temperature range of -55°C to +150°C. Its compact design ensures minimal thermal resistance, making it suitable for demanding industrial and electronic applications requiring efficient rectification and high reliability.
MULTICOMP PRO SGBJ2510 Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1000 V
- Peak Non-Repetitive Reverse Voltage Vsm: 1100 V
- Maximum Average Forward Current: 25 A
- Peak Surge Current: 350 A
- Forward Voltage Drop: 12.5 V at 25A
- Reverse Peak Current: 3 mA at VR=1100V
- Isolation Voltage: 2500 V
- Thermal Resistance: 0.8 °C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: 1.391 in (35.3 mm) length, 0.993 in (25.2 mm) width, 0.140 in (3.55 mm) height
- Weight: 10 g
- Mounting Torque: 0.8 N.m
Buy the Multicomp 2510 – Reliable Bridge Rectifier for Industrial Applications
Purchase the high-performance three-phase bridge rectifier online today to ensure efficient power conversion for industrial applications. Its advanced glass passivation design guarantees high reliability, low voltage drop, and excellent thermal performance. Suitable for power supplies, PWM converters, and DC motor control, this rectifier supports up to 1000V and 25A ratings. Compact yet robust, it’s the ideal solution for demanding industrial electronics, offering long-lasting durability and consistent performance. Buy now to enhance your power management systems with confidence and ease.
Get Multicomp 2510 today—built for high current and voltage reliability in industrial power rectification systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SGBJ2510?
You can click on the BUY or RFQ button to purchase SGBJ2510 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SGBJ2510?
You can download the SGBJ2510 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SGBJ2510?
MULTICOMP PRO
