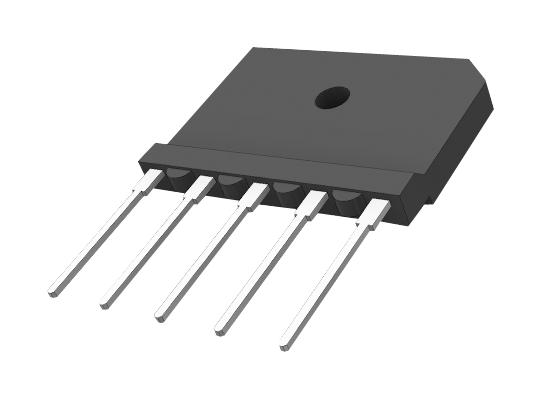

MULTICOMP PRO SGBJ3512 three phase bridge rectifier
This product is a glass passivated three-phase bridge rectifier designed for high reliability and efficiency in power conversion applications. It features low forward voltage drop and an insulation voltage of 2500V, making it suitable for power supplies, PWM converter input rectification, and DC motor drives. Its compact size, light weight, and high thermal conductivity contribute to excellent thermal management, ensuring low temperature rise during operation. Maximum ratings include peak repetitive voltage of 1200V, peak surge current of 660A, and a thermal resistance of 0.8°C/W, with an operating temperature range from -55°C to +150°C, and it is compliant with UL standards.
MULTICOMP PRO SGBJ3512 three phase bridge rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1200 V
- Peak Non-Repetitive Reverse Voltage VersM: 1300 V
- Maximum Average Forward Current: 35 A
- Peak Forward Surge Current: 660 A
- Maximum Forward Voltage Drop: 17.5 V at 17.5A
- Reverse Peak Current: 5 pA
- Isolation Voltage from Case to Lead: 2500 V
- Thermal Resistance: 0.8 °C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: Not specified
- Weight: 10 g
- Mounting Torque M3: 0.8 N·m
Buy the Multicomp SGBJ3512 – Reliable Bridge Rectifier for Industrial Applications
Enhance your power systems with the high-quality three phase bridge rectifier. Designed for durability and efficiency, it features a glass passivated chip and insulation voltage of 2500V. Ideal for power supplies, PWM converters, and motor drives, this reliable component ensures low forward voltage drop and excellent thermal management with a thermal resistance of 0.8°C/W. Easy to install with a mounting torque of 0.8 N·m, it’s perfect for demanding industrial applications. Buy online today for dependable performance!
Buy Multicomp SGBJ3512 now and experience unmatched reliability and high efficiency in power rectification for industrial equipment.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SGBJ3512?
You can click on the BUY or RFQ button to purchase SGBJ3512 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SGBJ3512?
You can download the SGBJ3512 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SGBJ3512?
MULTICOMP PRO
