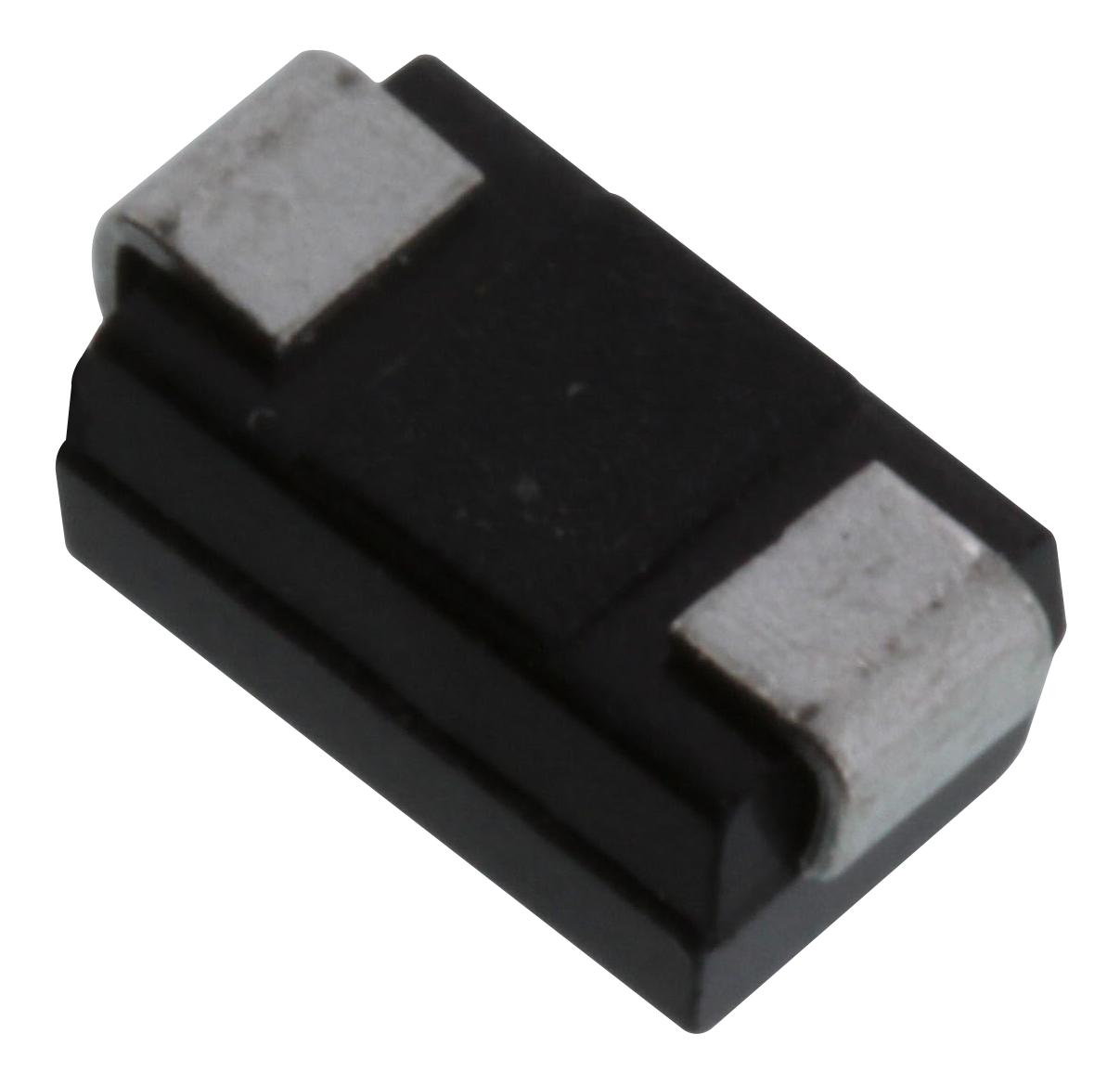

MULTICOMP-PRO SMAJ4747A Silicon Zener Diode
The silicon zener diode is a high-reliability component designed for voltage regulation and protection applications in electronic circuits. It features a JEDEC DO-214AC molded plastic case with a passivated chip and solderable terminals, suitable for surface mount applications. Capable of handling a maximum power dissipation of 1.0 Watts and operating within a temperature range of -55°C to +150°C, it provides precise voltage regulation with high surge current rating and stable performance across varied conditions. Available in voltage ratings from 3.3V to 100V, these diodes are ideal for power management and circuit protection.
MULTICOMP-PRO SMAJ4747A Silicon Zener Diode Specifications:
- Case: JEDEC DO-214AC molded plastic body
- Terminals: Solderable per MIL-STD-750, method 2026
- Polarity: Indicated by cathode band
- Maximum Soldering Temperature: 260°C for 10 seconds
- Voltage Range: 3.3V to 100V
- Power Dissipation: 1.0 Watts
- Operating Temperature Range: -55°C to +150°C
- Peak Reverse Voltage: 7.5V to 56V (depends on specific part)
- Maximum Forward Voltage: 1.2V at 200mA
- Mounting: Surface mount with flame retardant epoxy meeting UL 94-0
- Surge Current: High surge rating, tested up to 700mA to 2000mA depending on model
- Impedance: 22kΩ to 1500Ω at specified currents
Buy the Multicomp Series Silicon Zener Diode: SMAJ4747A
Discover the reliable performance of the Silicon Zener Diode available online, perfect for voltage regulation and circuit protection in various electronic applications. Designed with a JEDEC DO-214AC case, it offers a maximum power dissipation of 1.0W and a broad voltage range from 3.3V to 100V. Suitable for surface mount assembly, it features high surge current ratings and stable operation across temperatures from -55°C to +150°C. Purchase now to enhance your power management solutions with this high-quality component, ensuring efficient and durable circuit protection.
Order your Multicomp Series Silicon Zener Diode SMAJ4747A today and ensure reliable voltage regulation and circuit protection for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SMAJ4747A?
You can click on the BUY or RFQ button to purchase SMAJ4747A from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SMAJ4747A?
You can download the SMAJ4747A datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SMAJ4747A?
MULTICOMP-PRO
