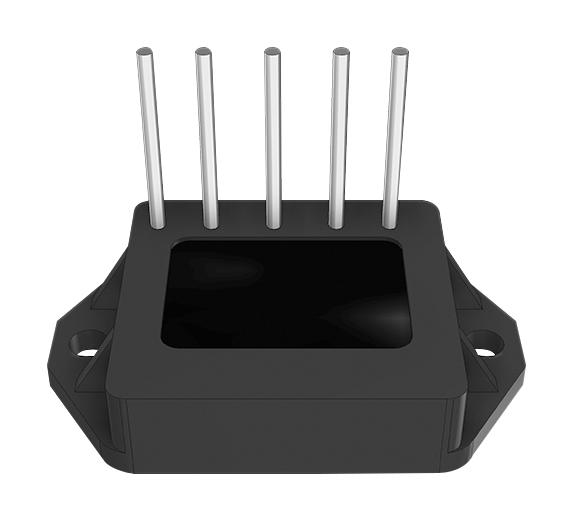

MULTICOMP PRO SMT3508GW Three Phase Bridge Rectifier
The Three Phase Bridge Rectifier SMT3508GW is a high-reliability electronic component designed for converting AC to DC power in industrial and power supply applications. It features a glass passivated design with low forward voltage drop, high surge current capability, and maximum ratings up to 800V working peak reverse voltage. With plated solderable terminals, heatsink mounting for efficient heat transfer, and a robust epoxy case, this rectifier offers excellent performance for resistive or inductive loads. It operates in temperatures from -40°C to +150°C, making it suitable for demanding environments.
MULTICOMP PRO SMT3508GW Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800V
- Working Peak Reverse Voltage VRWM: 800V
- Peak Non-Repetitive Reverse Voltage VRsM: 900V
- RMS Reverse Voltage VR(RMS): 560V
- Maximum Average Forward Current: 35A
- Peak Forward Surge Current: 360A
- Maximum Forward Voltage Drop: 44V at 17.5A
- Reverse Peak Current: 5 pA at VR=Vrrm
- Isolation Voltage from case to lead: 2500V
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +125°C
- Dimensions (Inches): 1.948 x 1.689 x 0.183
- Dimensions (Millimetres): 50.4 x 42.9 x 4.65
- Mounting: Bolt down with thermal compound, torque 2N.m
- Terminals: Plated leads, solderable per MIL-STD-202, Method 208
- Case: Epoxy with heat sink mounting option
- Weight: approximately 21 grams
Buy the Buy Multicomp High Voltage Bridge Rectifier Part Number SMT3508GW Online
Discover the high-performance Multicomp SMT3508GW three-phase bridge rectifier, ideal for industrial power supplies and heavy-duty applications. This reliable rectifier offers up to 800V peak reverse voltage, low forward voltage drop, high surge current capacity, and durable epoxy case. Easy to mount with plated leads, it ensures excellent heat dissipation when bolted onto heatsinks with thermal compound. Operating efficiently from -40°C to +150°C, it is suitable for resistive, inductive, and capacitive loads, making it a critical component for demanding electrical systems.
Order your Multicomp Series SMT3508GW three-phase bridge rectifier today and ensure reliable power conversion with high surge current capability for your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMT3508GW?
You can click on the BUY or RFQ button to purchase SMT3508GW from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMT3508GW?
You can download the SMT3508GW datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMT3508GW?
MULTICOMP PRO
