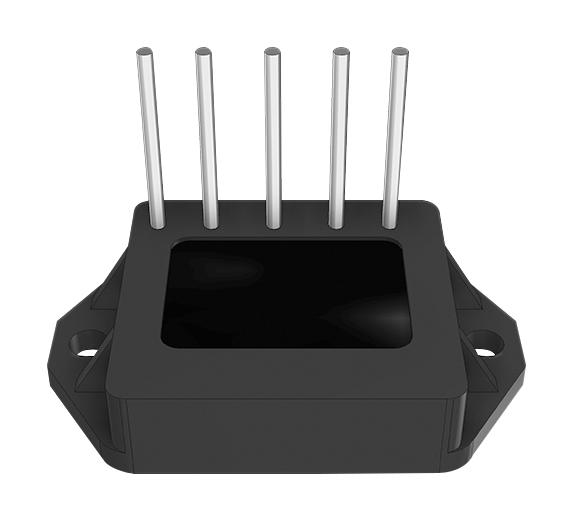

MULTICOMP PRO SMT3514GW Three Phase Bridge Rectifier
The SMT3514GW is a 3-phase bridge rectifier with an epoxy case and heat sink mounting capability, designed for high current and surge applications. It features low forward voltage drop, high reliability, and plated solderable leads. The device can operate at temperatures from -40°C to +150°C, with voltage ratings ranging up to 1400V and a maximum average forward current of 35A. Suitable for industrial power supplies and inverter systems, it ensures efficient performance with a compact, robust design for printed circuit board integration.
MULTICOMP PRO SMT3514GW Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1400 V
- Working Peak Reverse Voltage VRWM: 1400 V
- Peak Non-Repetitive Reverse Voltage VRSM: 1500 V
- RMS Reverse Voltage VR(RMS): 980 V
- Maximum Average Forward Rectified Current: 35 A
- Peak Forward Surge Current: 360 A
- Maximum Forward Voltage Drop: 44 V at 17.5 A
- Reverse Peak Current: 5 pA at VR=Vrrm
- RMS Isolation Voltage: 2500 V
- Operating Temperature Range: -40 to +150°C
- Storage Temperature Range: -40 to +125°C
- Dimensions: 1.638 inches (41.6 mm) length, 0.152 inches (3.85 mm) width, height varies per model
Buy the Premier Multicomp SMT3514GW – Reliable Bridge Rectifier for Industrial Applications
Enhance your power conversion systems with the reliable SMT3514GW three-phase bridge rectifier. Designed for demanding industrial environments, it offers high surge current capability, robust epoxy casing, and heat sink compatibility to ensure efficient heat dissipation. With voltage ratings up to 1400V and a current capacity of 35A, this rectifier guarantees dependable performance in power supplies, inverters, and industrial automation. Easily mounted on heatsinks with thermal paste, it is ideal for PCB integration, providing longevity and high reliability for critical applications.
Order your Premier Multicomp Series SMT3514GW three-phase bridge rectifier today and ensure your industrial power systems operate with optimal efficiency and reliability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMT3514GW?
You can click on the BUY or RFQ button to purchase SMT3514GW from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMT3514GW?
You can download the SMT3514GW datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMT3514GW?
MULTICOMP PRO
