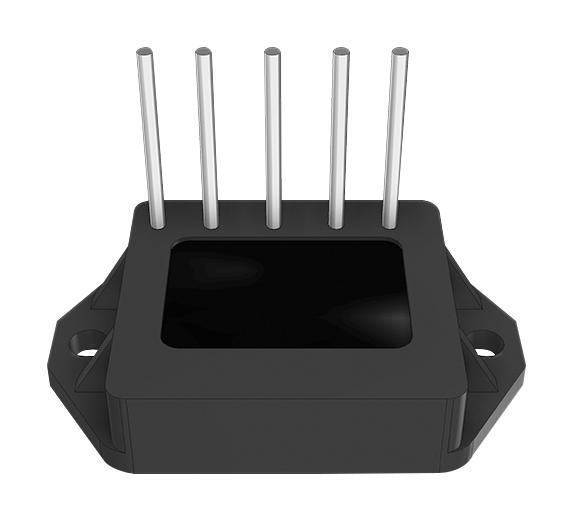

MULTICOMP PRO SMT5012GW 3 Phase Bridge Rectifier
This three-phase bridge rectifier is designed for high current and voltage applications, with a glass passivated construction for high reliability. It features a low forward voltage drop, high surge current capability, and is ideal for PCB mounting. With heat sink mounting and plated solderable terminals, it offers excellent thermal performance and durability in demanding power conversion environments, supporting loads up to 1200V and 50A. Suitable for rectification in industrial power supplies, motor drives, and similar applications requiring robust, high-efficiency bridge rectifiers.
MULTICOMP PRO SMT5012GW 3 Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800V, 1000V, 1200V, 1400V, 1600V
- Working Peak Reverse Voltage VRWM: 800V, 1000V, 1200V, 1400V, 1600V
- DC Blocking Voltage VR: Up to 1600V
- Peak Non-Repetitive Reverse Voltage VRsM: 900V to 1700V
- RMS Reverse Voltage VR(RMS): 560V to 1120V
- Maximum Average Forward Current Io: 50A
- Peak Forward Surge Current Irsm: 400A
- Maximum Forward Voltage Drop Vr: 44V at 25A
- Reverse Peak Current VR=Vrrm@Ts=25°C: 5pA
- Thermal Resistance Junction to Ambient: Data varies based on mounting
- Operating Temperature Range Ts: -40°C to +150°C
- Storage Temperature Range Tstg: -40°C to +125°C
- Insulation Voltage Viso: 2500V
- Dimensions (Inches/mm): 1.948(50.4)/1.953(49.6)/1.689(42)/1.638(41.6)
Buy the Buy Multicomp Series SMT5012GW Part Number 1200V 50A Bridge Rectifier Online
Purchase the high-performance 3 Phase Bridge Rectifier SMT5012GW online today and enhance your power systems’ efficiency. This robust rectifier supports voltages up to 1200V and currents up to 50A, making it ideal for industrial power supplies, motor drives, and other demanding power conversion applications. Its glass passivated construction ensures high reliability and durability under harsh conditions. Secure efficient thermal management through proper mounting, and benefit from plated leads for easy soldering and assembly. Order now for fast delivery and dependable operation.
Order your Multicomp Series SMT5012GW 1200V 50A Bridge Rectifier today and ensure reliable power conversion for your industrial applications.
