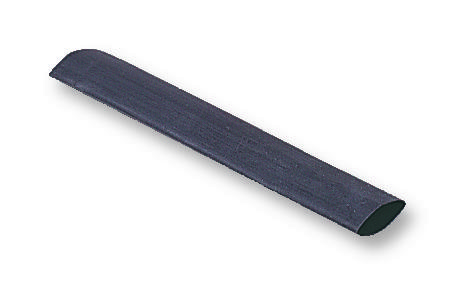

MULTICOMP PRO SP3X935MBLACK Heat Shrink Tubing
This heat shrink tubing features a 3:1 shrink ratio and is made from flexible, flame-retardant polyolefin material. It operates within a temperature range of -55°C to +135°C, with a shrink temperature of 100°C. Designed to accommodate difficult or irregular shapes, it provides excellent electrical insulation, high tensile strength, and low water absorption. Certified for flame resistance and corrosion resistance, this tubing offers reliable protection for wiring in industrial and electronic applications. Its robust specifications ensure durability under harsh conditions, making it ideal for various electrical and mechanical insulation needs.
MULTICOMP PRO SP3X935MBLACK Heat Shrink Tubing Specifications:
- Shrink Ratio: 3:1
- Operating Temperature Range: -55°C to +135°C
- Shrink Temperature: 100°C
- Tensile Strength: 1,037 Pa (min.)
- Ultimate Elongation: 250% (min.)
- Specific Gravity: 1.35 (max.)
- Heat Shock Resistance: No dripping, cracking or flowing during 4 hours at 250°C
- Heat Ageing: 168 hours at 175°C, elongation: 150% (min.)
- Low Temperature Flexibility: No cracking at -55°C
- Flammability (Except Clear): Pass
- Electrical Strength: 20 KV/mm (min.)
- Corrosion Resistance: No corrosion on copper contact and mirror
- Water Absorption: 0.5% (max.)
- Fluid Resistance: Approved for lubricating oil and other fluids
- Minimum Recovered Length: 0.5 m
- Maximum Recovered Length: 1.5 m
- Nominal Wall Thickness: 0.45 mm
- Standard Coil Length: 15 m
- Part Number: SP3X935MBLACK
Buy the Multicomp Heat Shrink Tubing – Reliable Insulation for Industrial Applications
Purchase Multicomp heat shrink tubing online today to ensure your electrical and mechanical projects benefit from superior insulation properties and high durability. Its 3:1 shrink ratio allows it to adapt to complex shapes, providing excellent protection against electrical, thermal, and mechanical stresses. Designed for easy installation and long-lasting performance, this flame-retardant polyolefin tubing is ideal for industrial wiring, electronics, and automotive repairs. Order now for fast delivery and equipment safety assurance.
Get Multicomp heat shrink tubing today—built for reliable electrical insulation and enduring durability in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SP3X935MBLACK?
You can click on the BUY or RFQ button to purchase SP3X935MBLACK from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SP3X935MBLACK?
You can download the SP3X935MBLACK datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SP3X935MBLACK?
MULTICOMP PRO
