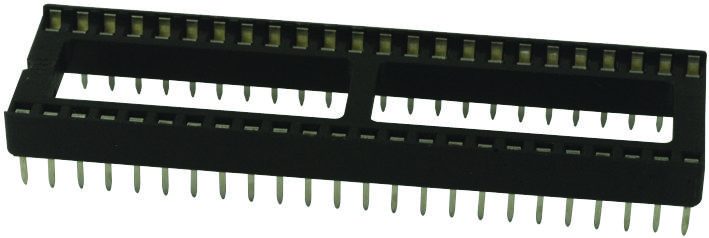

MULTICOMP PRO SPC15558 PCB DIP Socket
This PCB DIP socket features stamped, dual wipe contact with a 2.54 mm pitch, suitable for reliable electronic connections in industrial applications. Made of phosphor bronze with tin-plated contacts and UL94V-0 rated PBT insulator, it supports operating temperatures from -25°C to 85°C. With a current rating of 1A, dielectric withstand voltage of 1000V RMS, contact resistance of 20 milliohms, and robust insertion and withdrawal forces, it ensures durable, high-quality performance in electronic component mounting and testing scenarios.
MULTICOMP PRO SPC15558 PCB DIP Socket Specifications:
- Number of pins: 48
- Dimensions: 60.96 mm length, 58.42 mm width
- Contact Material: Phosphor Bronze
- Contact Plating: Tin, 60-80 microns
- Insulator: PBT—4830, UL94V-0
- Current Rating: 1A
- Dielectric Withstanding Voltage: 1000V RMS/minute
- Insulation Resistance: >= 1000 MΩ
- Contact Resistance: 20 milliohms initial, 30 milliohms after test
- Operating Temperature: -25°C to 85°C
- Insertion Force: 340g max per contact
- Withdrawal Force: 80g min per contact
- Number of Pins: 48
- Pitch: 2.54 mm
Buy the Multicomp SPC15558 – Reliable PCB DIP Socket for Industrial Applications
Secure your electronic assembly with the high-quality PCB DIP socket designed for durability and precision. Featuring dual wipe contact with 2.54 mm pitch, made of phosphor bronze with tin plating, it ensures stable connections. Suitable for industrial and testing environments, it handles currents up to 1A and withstands voltages of 1000V RMS. Its robust construction supports temperature ranges from -25°C to 85°C, with low contact resistance and validated insertion and withdrawal forces for dependable performance in your PCB projects.
Buy Multicomp SPC15558 now and experience unmatched reliability and performance in electronic testing and component mounting.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SPC15558?
You can click on the BUY or RFQ button to purchase SPC15558 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SPC15558?
You can download the SPC15558 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SPC15558?
MULTICOMP PRO
