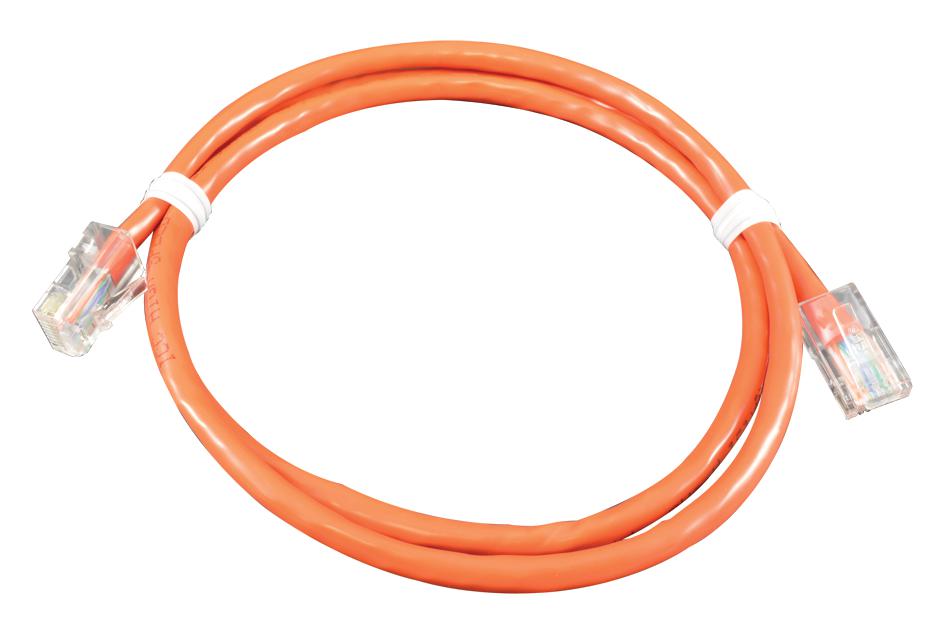

MULTICOMP-PRO SPC21911 Cat 5e Patch Cable
The SPC21911 is a 14-foot orange Cat-5e patch cable with RJ45 connectors designed for network and industrial communication applications. It features 24 AWG stranded bare copper conductors with PVC insulation and a durable PVC jacket. The twisted pair wires are arranged in concentric layers with a 100mm lay length, ensuring minimal interference. It offers a maximum conductor resistance of 89 ohms per kilometer at 20°C, insulation resistance of at least 100 megaohms per kilometer, and withstands dielectric strength of 500VAC for one minute, tested with a 2kV spark test. Ideal for reliable, high-speed data transmission.
MULTICOMP-PRO SPC21911 Cat 5e Patch Cable Specifications:
- Cable Length: 14 feet
- Color: Orange
- Wire Gauge: 24 AWG (7/0.2mm)
- Conductor Material: Stranded bare copper
- Insulation Material: Polyvinyl Chloride (PVC)
- Insulation Thickness: 0.19mm (ref.)
- Outer Diameter: 5.2mm +0.2mm
- Twisted Pair Count: 4 pairs
- Lay Length: 100mm
- Impedance: 100 +15Q (from 1 MHz to 350 MHz)
- Maximum Conductor Resistance: 89Ω/km at 20°C
- Minimum Insulation Resistance: 100MΩ/km at 20°C
- Dielectric Strength: 500V AC for 1 minute
- Spark Test: 2kV in air
- Connector Type: RJ-45 8P8C modular plug with gold-plated contacts
- Compliance: UL and CSA CMG FT4
- Temperature Rating: 75°C
- Hardness: Durometer Shore A 88 +3
Buy the Multicomp Series Cat 5e Network Cable: SPC21911
Experience dependable networking with the 14-foot orange Cat 5e patch cable offering reliable data transfer for industrial, commercial, and home installations. Equipped with high-quality RJ-45 connectors, twisted copper conductors, and a durable PVC jacket, it guarantees minimal interference, impressive resistance, and compliance with UL and CSA standards. Ideal for Ethernet connections, it supports high-speed data transmission while maintaining flexibility and durability. Purchase online today to upgrade your network infrastructure with this high-performance patch cord designed for efficiency and longevity.
Order your Multicomp Series SPC21911 Cat 5e network patch cable today and ensure reliable, high-speed data connectivity for your networking setup.
