MULTICOMP PRO SPC21923 Cat 5E Patch Cable

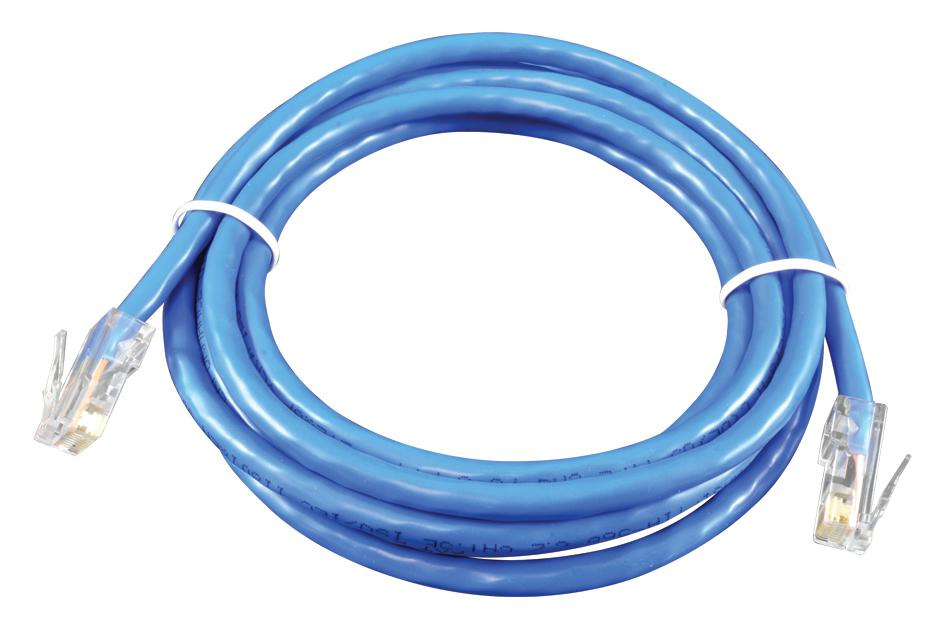

The SPC21923 is a 7-foot blue Cat-5e patch cable featuring 8P8C RJ45 modular connectors on each end. It consists of twisted pair wires made from polyethylene (PE) with 24 AWG stranded bare copper conductors, encased in a durable PVC jacket. The cable's construction ensures proper lay-up in concentric layers with a lay length of 100mm. It provides excellent electrical performance, with a maximum conductor resistance of 89 ohms per kilometer at 20°C, an insulation resistance of at least 100 megaohms per kilometer, dielectric strength of 500VAC over one minute, and a 2kV air spark test. Suitable for networking and industrial use, it ensures reliable data transmission and durability.
MULTICOMP PRO SPC21923 Cat 5E Patch Cable Specifications:
- Conductor Material: Stranded Bare Copper
- Conductor Size: 24 AWG
- Insulation Material: PE
- Jacket Material: PVC
- Jacket Diameter: 5.2mm +0.2mm
- Twisted Pair Thickness: 0.19mm
- Lay Length: 100mm
- Cable Length: 2133.6mm +25.4mm (7 feet + 1 inch)
- Operating Frequency: 350 MHz
- Maximum Conductor Resistance: 89 Ω/km at 20°C
- Insulation Resistance: ≥ 100 MΩ/km at 20°C
- Dielectric Strength: 500 V AC/1 min
- Spark Test Voltage: 2 kV in Air
- Impedance: 100 ±15 Ω (from 1 MHz to 350 MHz)
- Temperature Rating: 75°C
Buy the Multicomp Series Cat 5E Communication Cable: SPC21923
Enhance your network setup with the reliable 7-foot blue Cat 5E patch cable. Featuring 8P8C RJ45 connectors, 24AWG stranded copper conductors, PVC jacket, and rated for 350MHz frequency, it guarantees high-performance data transmission. This durable cable meets industry standards including UL and CSA certifications, providing excellent resistance and shielding for industrial and commercial applications. Easy to install, it ensures stable and fast network connections, making it ideal for office, data centers, and industrial environments. Purchase online today for quick delivery and seamless connectivity.
Buy Multicomp Series Cat 5E Patch Cable SPC21923 now and experience reliable data transfer and durable performance for your networking needs.
