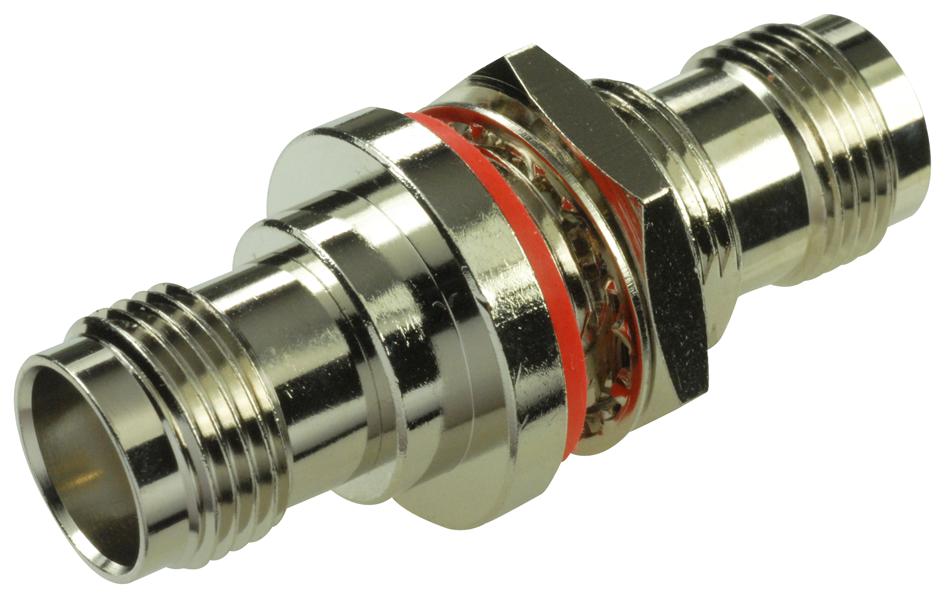

MULTICOMP PRO SPC33235 Bulkhead RF Adapter
The SPC33235 is a TNC jack to TNC jack straight bulkhead adapter ideal for RF communication systems. Constructed with a brass body, nickel-plated finish, and gold-plated phosphor bronze contacts, it ensures reliable signal transmission. The white PTFE insulator and red rubber gasket provide durability and sealing. Operating from -65°C to 165°C with a working voltage of 500 VRMS at sea level, it maintains an impedance of 50 ohms and insulation resistance above 5 megaohms. Easy to install, this adapter is suitable for various high-frequency applications requiring excellent electrical performance and mechanical integrity.
MULTICOMP PRO SPC33235 Bulkhead RF Adapter Specifications:
- Impedance: 50 ohms
- Frequency Range: 10-7 GHz
- VSWR: <1.1:1 up to 5 GHz
- Working Voltage: 500V RMS @ Sea Level
- Insulation Resistance: 5kMO Min
- Temperature Range: -65°C to 165°C
- Connector Type: TNC Jack to TNC Jack
- Body Style: Straight Bulkhead Adapter
- Material: Brass with Nickel Plated Finish
- Contacts: Gold-plated Phosphor Bronze
- Insulator: PTFE White
- Gasket: Red Rubber
- Dimensions: Inches (Millimeters): 7/16—28UNEF—2A, 16 HEX
- Certifications: RoHS Compliant
Buy the Buy multicomp TNC Jack to TNC Jack Bulk Head Adapter Part Number SPC33235 Online
Secure your high-frequency connections with the reliable multicomp bulkhead RF adapter. Featuring a durable brass body, gold-plated contacts, and a wide temperature range from -65°C to 165°C, this high-quality connector guarantees consistent performance. Suitable for RF communications, it offers 50 ohms impedance, a 500V RMS working voltage, and excellent insulation resistance. Easy to install and RoHS compliant, ensure your projects maintain optimal signal integrity and durability by ordering this premium adapter online today, simplifying your setup with confidence.
Order your multicomp Series SPC33235 TNC Bulkhead Adapter today and ensure reliable RF connectivity with durable, high-performance features.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SPC33235?
You can click on the BUY or RFQ button to purchase SPC33235 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SPC33235?
You can download the SPC33235 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SPC33235?
MULTICOMP PRO
