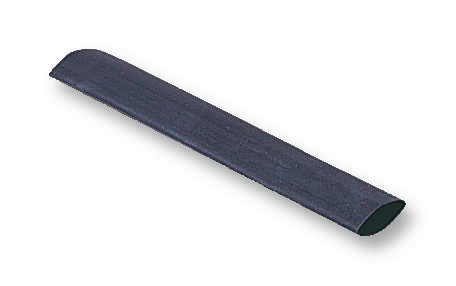

MULTICOMP-PRO SPTW16 Heat Shrink Tubing
The SPTW16 is a 1.2-meter-long, black, ultra-thin wall heat shrink tubing made of flexible polyolefin. Designed for use in situations with limited space, it is suitable for terminating multipole and D-connectors. This heat shrink tube features rapid shrinking at 100°C, is self-extinguishing, and operates within a temperature range of -55°C to 125°C. It offers reliable electrical insulation and mechanical protection in industrial, defense, military, and aerospace applications. The product is highly rated for quality and comes with a 12-month limited warranty.
MULTICOMP-PRO SPTW16 Heat Shrink Tubing Specifications:
- Shrink Ratio 2:1
- Operating Temperature: -55°C to 125°C
- Shrink Temperature: 100°C
- Material: Polyolefin
- Color: Black
- Tensile Strength: 10 MPa minimum
- Ultimate Elongation: 250% minimum
- Heat Shock resistance at 250°C: No dripping, cracking or flowing
- Heat Ageing: 168 hours at 175°C, elongation at least 150%
- Low Temperature Flexibility: No cracking at -55°C
- Flammability: Passes ASTM D876
- Electric Strength: 20 kV/mm minimum
- Corrosion Resistance: No corrosion on copper mirror test
- Nominal Diameter: 1.6 mm (1/16 inch)
- Expanded Diameter: 1.6 mm
- Recovered Diameter: 0.8 mm
- Wall Thickness: 0.031 inches
- Length: 1.2 meters
Buy the Buy Multicomp Polyolefin Heat Shrink Tubing Part Number SPTW16 Online
Order the Multicomp SPTW16 ultra-thin wall heat shrink tubing online today to experience superior electrical insulation and mechanical protection. Crafted from flexible polyolefin, this tubing shrinks quickly at 100°C and performs reliably across temperatures from -55°C to 125°C. Ideal for high-density wiring, aerospace, military, and industrial applications, it ensures safety and durability. With a 12-month limited warranty, purchasing online guarantees fast delivery, genuine quality, and expert support for your wiring needs in tight spaces and demanding environments.
Get Multicomp SPTW16 today—designed for high-density wiring and reliable insulation in space-constrained environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SPTW16?
You can click on the BUY or RFQ button to purchase SPTW16 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SPTW16?
You can download the SPTW16 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SPTW16?
MULTICOMP-PRO
