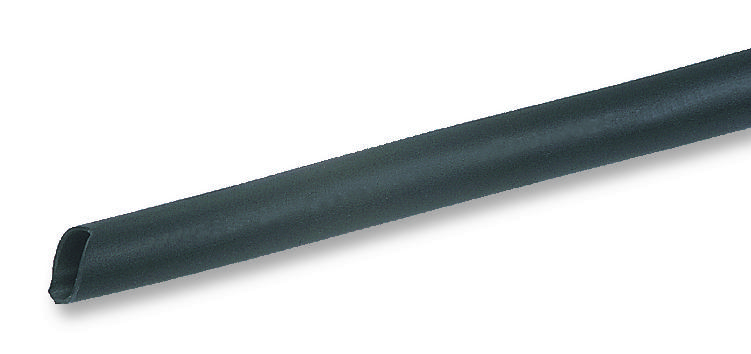

MULTICOMP PRO SPUL5M127MMBLK Polyolefin Heat Shrink Tubing
Flexible, flame-retardant polyolefin heat shrink tubing designed for multiple industrial applications. It features a 224 shrink ratio, operates from -55°C to 135°C, and has a dielectric strength of 25 kV/mm. Made of polyolefin, it is standard black with excellent electrical insulation, low water absorption, and high mechanical strength, including tensile strength of 10 MPa and ultimate elongation of 250%. Suitable for wire insulation, electrical protection, and environmental sealing, this tubing passes flammability, fluid resistance, and low-temperature flexibility tests, ensuring reliability in harsh environments.
MULTICOMP PRO SPUL5M127MMBLK Polyolefin Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to 135°C
- Shrink Temperature: 100°C
- Material: Polyolefin
- Standard Colour: Black
- Dielectric Strength: 25 kV/mm
- Tensile Strength: 10 MPa minimum
- Ultimate Elongation: 250% minimum
- Specific Gravity: 1.35 maximum
- Water Absorption: 0.5% maximum
- Flammability: Passes ASTM D876
- Electrical Strength: 20 kV/mm minimum
- Low Temperature Flexibility: No cracking at -55°C
- Fluid Resistance: Resistant to gasoline, hydraulic fluid, lubricating oil
- Dimensions and Part Numbers: Multiple options with varying diameters and lengths, e.g., SPUL/1.2/1.2MMBLK, SPUL/1.2/3.2MMBLK, etc.
Buy the Multicomp Series SPUL5M127MMBLK Polyolefin Heat Shrink Tubing: SPUL5M127MMBLK
Order Multicomp polyolefin heat shrink tubing online today and ensure high-quality electrical insulation, environmental protection, and flexibility for your industrial projects. Our tubing features a 2:1 shrink ratio, operates up to 135°C, and offers excellent dielectric strength of 25 kV/mm. It is resistant to fluids like gasoline, hydraulic oil, and lubricants, making it suitable for demanding environments. With various diameters available, this flame-retardant, low water absorption tubing guarantees durability and safety for electrical wiring, harnessing, and environmental sealing. Shop now for quick delivery and maximum reliability.
Buy Multicomp polyolefin heat shrink tubing now and experience unmatched reliability and performance in electrical insulation, environmental sealing, and wiring protection.
