MULTICOMP PRO SS115 Schottky Diode
The Schottky Rectifier multicomp:ro SS115+ is a high-performance surface-mounted diode designed for low voltage, high-frequency applications such as inverters, freewheeling, and polarity protection. It features a metal-semiconductor junction with guarding and epitaxial construction, providing very low forward voltage drop and high current capacity of 1 Ampere. Suitable for use in circuits requiring reverse voltages up to 150V, it operates between -65°C and +150°C, ensuring reliability in demanding electronic environments with a compact molded plastic case and UL 94V-0 flammability rating.
MULTICOMP PRO SS115 Schottky Diode Specifications:
- Case: Molded Plastic
- Polarity: Colour band denotes cathode
- Weight: 0.053 grams
- Reverse Voltage: 20 to 150 Volts
- Forward Current: 1 Ampere
- Repetitive Peak Reverse Voltage: 20V to 150V depending on model
- Max. RMS Voltage: 14V to 105V depending on model
- Peak Forward Surge Current: 30A (8.3ms single half sine-wave)
- Forward Voltage at 25°C: 0.5V (SS12+), 0.75V (SS14+), 0.8V (SS16+), 0.95V (SS110+), 1.2V (SS115+)
- Max. DC Reverse Current at 25°C: 0.2A (SS12+), 0.1A (SS14+), 0.1A (SS16+), 0.1A (SS110+), 0.1A (SS115+)
- Junction Capacitance: 110pF
- Thermal Resistance: 28°C/W
- Operating Temperature Range: -65°C to +150°C
- Storage Temperature Range: Not specified but typically also -65°C to +150°C

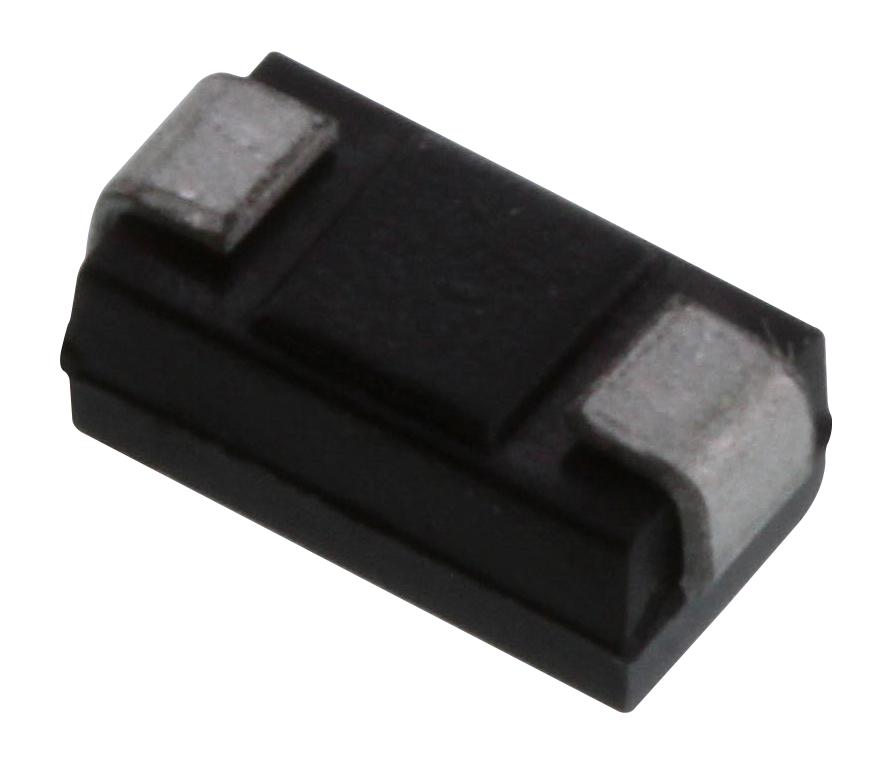

Buy the Buy multicomp:ro Schottky Rectifier Part Number SS115+ Online
Purchase the multicomp:ro SS115+ Schottky Rectifier online today and enjoy fast delivery, high current capacity, and low forward voltage drop. Ideal for low voltage, high frequency inverters, polarity protection, and freewheeling applications, this surface-mount diode features a molded plastic case rated UL 94V-0. With a reverse voltage up to 150V and a forward current of 1A, it ensures dependable performance in demanding electronic circuits. Order now and optimize your circuitry with this compact, reliable silicon diode for efficient power management.
Buy multicomp:ro SS115+ Schottky Rectifier now and experience reliable low-voltage, high-frequency performance for your circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SS115?
You can click on the BUY or RFQ button to purchase SS115 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SS115?
You can download the SS115 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SS115?
MULTICOMP PRO
