MULTICOMP PRO T44BS1104 Terminal Block

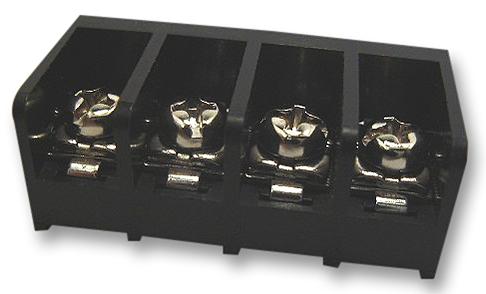

The T44-BS11-04 is a 4-way, 15A panel-mount barrier terminal block featuring a robust black PBT insulating body, tin-plated brass terminals, and steel screws with nickel plating. It supports vertical termination and provides reliable electrical connections suitable for various industrial applications. Designed for safety, it withstands voltage up to 2000VAC, with an insulation resistance exceeding 2000 Megaohms at 500VDC. With a pitch spacing of 9.5mm and a maximum wire size of 14AWG to 22AWG, it offers ease of installation and durable performance in demanding environments.
MULTICOMP PRO T44BS1104 Terminal Block Specifications:
- Current Rating: 15A (300V AC)
- Insulation Voltage: 2,000V AC
- Insulation Resistance: > 2,000MW (500V DC)
- Operating Temperature: -40°C to +105°C
- Wire Range: 14AWG to 22AWG
- Screw Torque: 12 lb-inch
- Connector Mounting: Panel
- Pitch Spacing: 9.5mm
- Number of Contacts: 4
- Contact Material: Brass
- Contact Plating: Tin
- Terminal Type: Screw
- Termination Method: Vertical
- Dimensions: A 39.2mm, B 28.5mm
- Insulating Body: PBT - Black
- Terminal: Brass, Tin Plated
- Screw: Steel, Nickel Plated
Buy the Buy Multicomp Terminal Block Part Number T44BS1104 Online
Purchase the Multicomp T44-BS11-04 terminal block online today and enjoy fast, secure delivery. Its 4-way, 15A capacity and vertical termination make wiring straightforward for industrial control panels. With a sturdy black PBT insulation body and precision tin-plated brass contacts, this terminal block delivers durability and safety in electrical connections. Its 9.5mm pitch spacing and wire range of 14AWG–22AWG simplify installation. Perfect for reliable, high-quality power and signal distribution in demanding environments. Order now to enhance your project's efficiency and safety.
Order your Multicomp Series T44-BS11-04 terminal block today and ensure reliable, easy-to-install connections for your panel wiring projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO T44BS1104?
You can click on the BUY or RFQ button to purchase T44BS1104 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part T44BS1104?
You can download the T44BS1104 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of T44BS1104?
MULTICOMP PRO
