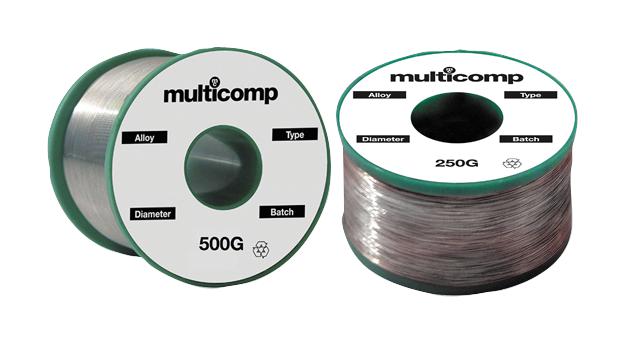

MULTICOMP 5071409 Halide Free Solder Wire
Multicomp Typ 400, 505 & 511 cored solder wires are designed for a wide range of soldering applications, including no-clean wave and reflow processes, as well as repairs. These wires feature modified rosins and carefully selected activators, providing fast soldering, clear residues, and excellent wetting on copper, brass, and nickel. They are available in lead-free alloys and offer a balance of performance and residue management, making them suitable for industrial and consumer electronics applications. Cleaning may not be required in many cases, further simplifying the manufacturing process.
MULTICOMP 5071409 Halide Free Solder Wire Specifications:
- Alloys: Conform to national and international standards
- Flux: Modified rosins and activators, mild rosin odour
- Acid Value: 400: 215 mg / KOH / g, 505: 170 mg / KOH / g, 511: 170 mg / KOH / g
- Halide Content: 400: 0%, 505: 0.5%, 511: 1.1%
- J-STD-004 Solder Spread: 400: 210 mm2, 505: 315 mm2, 511: 340 mm2
- SIR Test: Pass
- Classification: 400: 1.2.3, 505: 1.2.2, 511: 1.2.2
- Flux Content: Nominal 3%, can be specified as low as 2.2%
- Oxidised Copper Spread (mm2): {'Type 400': '222', 'Competitor A': '191', 'Competitor B': '202', 'Competitor E': '200', 'Competitor F': '190', 'Competitor G': '150', 'Competitor H': '230', 'Type 505': '220'}
- Oxidised Brass Spread (mm2): {'Type 400': '209', 'Competitor A': '140', 'Competitor B': 'N/A', 'Competitor E': '150', 'Competitor F': '180', 'Competitor G': '120', 'Competitor H': '150', 'Type 505': '240'}
- Relative Wetting Performance: Outperforms competitor products, requiring lower flux content and leaving fewer residues
Buy the 507-1409 MULTICOMP Halide Free Solder Wire | myMectronic
Purchase Multicomp Typ 400, 505 & 511 cored solder wires securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP 5071409?
You can click on the BUY or RFQ button to purchase 5071409 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part 5071409?
You can download the 5071409 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of 5071409?
MULTICOMP
