MULTICOMP CLSTV1408 Locking Fork

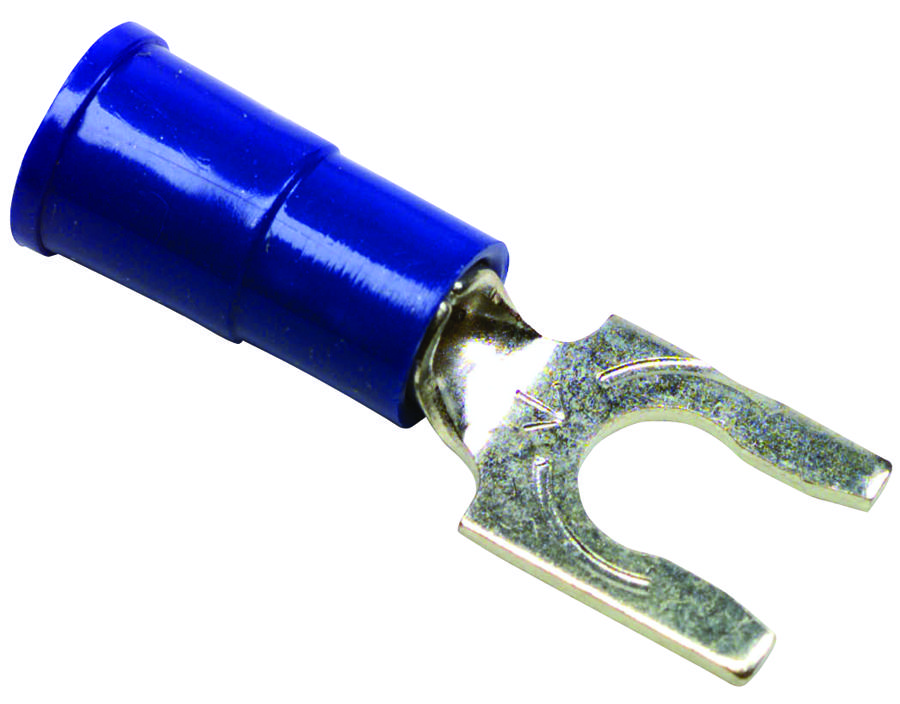

The CLS-TV-1408 is a copper fork/spade terminal with an electro-tin plated finish. It features a locking fork design with a butted seam barrel covered by a molded blue vinyl funnel entry sleeve. Suitable for 16 to 14 AWG wire, this terminal offers a wire guide barrel to prevent strand hang-ups, non-slip insulation for easy tool positioning, and a beveled, funneled terminal mouth for effortless wire insertion. It provides maximum corrosion protection, strong installation, and flexibility. Rated for 600V building wire and 1000V for fixtures and luminaires, with a maximum temperature of 105°C, making it ideal for industrial and lighting applications.
MULTICOMP CLSTV1408 Locking Fork Specifications:
- Material: Electro-tin plated copper
- Wire Range: 16-14 AWG
- Voltage Rating: 600V building wire, 1000V fixtures and luminaires
- Maximum Temperature: 105°C
- Seam: Butted seam barrel
- Insulation Material: Molded vinyl funnel entry sleeve, color coded
- Design: Locking fork with flat tongue and central opening
- Dimensions: Suitable for wire diameter 0.30 inches, width at lock 0.34 inches
- Rated for industrial and lighting applications with corrosion protection
- Rated voltage and temperature ensure safe and reliable connections for electrical installations
Buy the Vinyl Insulated Locking Fork Series 1408: CLS-TV-1408
Enhance your electrical connections with the multicomp vinyl insulated locking fork terminal. Designed for 16 to 14 AWG stranded copper wires, it features a locking fork for secure attachment and prevents strand hang-ups with a wire guide barrel. The molded vinyl sleeve offers corrosion resistance and easy identification. Rated for 600V building wire and 1000V fixtures, with maximum temperature of 105°C, ensuring safety and durability for industrial, lighting, and electrical applications. Easy to install, reliable, and compliant with industry standards.
Buy multicomp CLS-TV-1408 now and experience unmatched reliability and performance in industrial and lighting wire connections.
Frequently Asked Questions
Where can I buy MULTICOMP CLSTV1408?
You can click on the BUY or RFQ button to purchase CLSTV1408 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part CLSTV1408?
You can download the CLSTV1408 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of CLSTV1408?
MULTICOMP
