MULTICOMP CP891 RF Connector

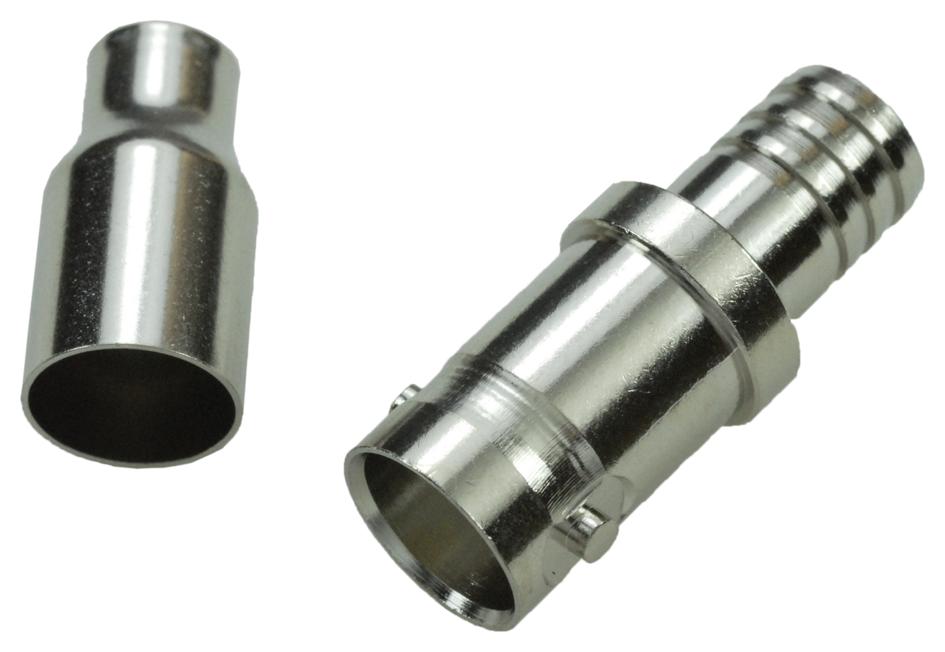

This is a BNC female crimp-on connector designed for RG-58 cables, featuring a zinc body with nickel plating and gold-plated brass contacts. It offers impedance of 50 ohms, supports frequencies up to 4 GHz, and withstands voltages up to 500 volts RMS at sea level. The connector ensures durability with a 500-cycle lifespan, operates over temperatures from -55°C to 85°C, and meets MIL-STD-202 moisture resistance standards. It is ideal for RF communication systems requiring reliable coaxial connections with precise dimensions and environmental resilience.
MULTICOMP CP891 RF Connector Specifications:
- Impedance: 50 ohms nominal
- Frequency Range: 0~4 GHz
- Working Voltage: 500 volts RMS at sea level
- Dielectric Withstanding Voltage: 1500 volts RMS at sea level
- Temperature Range: -55°C to 85°C
- Durability: 500 cycles
- Material: Zinc body with nickel plating, brass contact with gold plating, TPX insulator, beryllium copper spring washer, brass nickel plated crimp sleeve
- Cable: RG-58, Solid center conductor, 20 AWG (.032 inches) jacket OD: .195~.210 inches
- Braid Crimp: .320 inches, Strain relief Crimp: .211 inches
Buy the SPC Series RF Connector: CP891
Purchase the SPC Series RF Connector CP891 online today and enhance your RF communication setups with this high-quality coaxial connector. Designed for RG-58 cables, it provides 50 ohms impedance, supporting frequencies up to 4 GHz and delivering excellent durability with 500 cycles. Its zinc body with nickel plating and gold-plated brass contacts ensure corrosion resistance and reliable signals. Easy to install with specified crimping methods, this connector is perfect for professional and hobbyist applications requiring precise and dependable coaxial connections available for quick online ordering.
Order your SPC Series RF Connector CP891 today and equip your RF systems with reliable, durable coaxial connections for optimal performance.
Frequently Asked Questions
Where can I buy MULTICOMP CP891?
You can click on the BUY or RFQ button to purchase CP891 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part CP891?
You can download the CP891 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of CP891?
MULTICOMP
