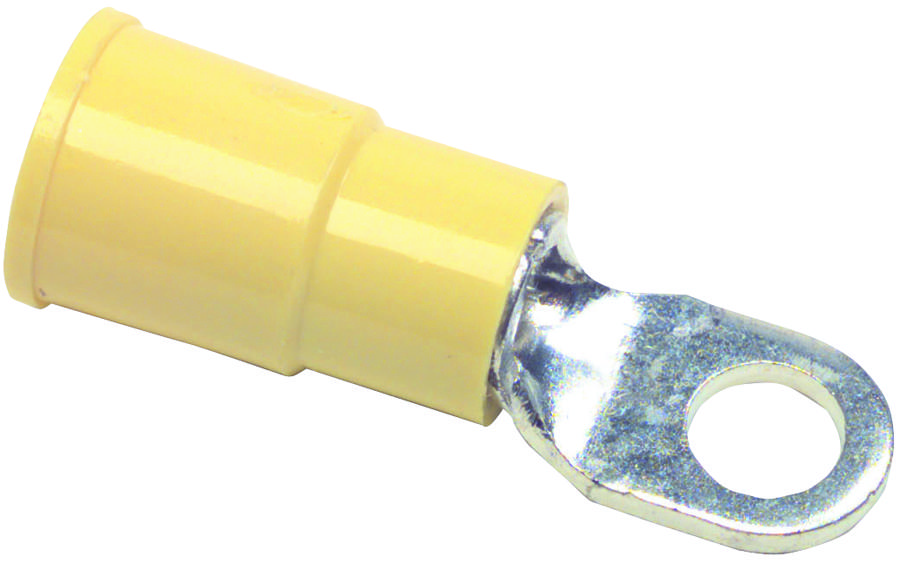

MULTICOMP CRSTV1008 Vinyl Insulated Ring Terminal
The MULTICOMP CRS-TV-1008 is a vinyl-insulated ring tongue terminal designed for reliable electrical connections. It features a butted seam construction and a vinyl funnel entry sleeve for easy wire insertion. Suitable for applications requiring a maximum voltage of 600V, this terminal is commonly used in building wire, signs, and luminaries. Its tin-plated annealed copper construction ensures excellent conductivity and corrosion resistance, making it a dependable choice for a wide range of electrical projects.
MULTICOMP CRSTV1008 Vinyl Insulated Ring Terminal Specifications:
- Wire Range: 12-10 AWG
- Stud Size: 8
- W: 0.28
- C: 0.29
- L: 0.98
- E: 0.84
- Thickness: 0.04
- Barrel Length: 0.25
- Barrel I.D.: 0.135
- Maximum Insulation Diameter: 0.25
- Barrel Seam: Butted
- Maximum Voltage Rating: 600 V (building wire), 1,000 V (signs/luminaries)
- Maximum Temperature Rating: 221°F (105°C)
- Maximum Current: Same as wire
- Insulator Material: Vinyl
- Terminal Material: ETP copper
- Terminal Plating: Tin
