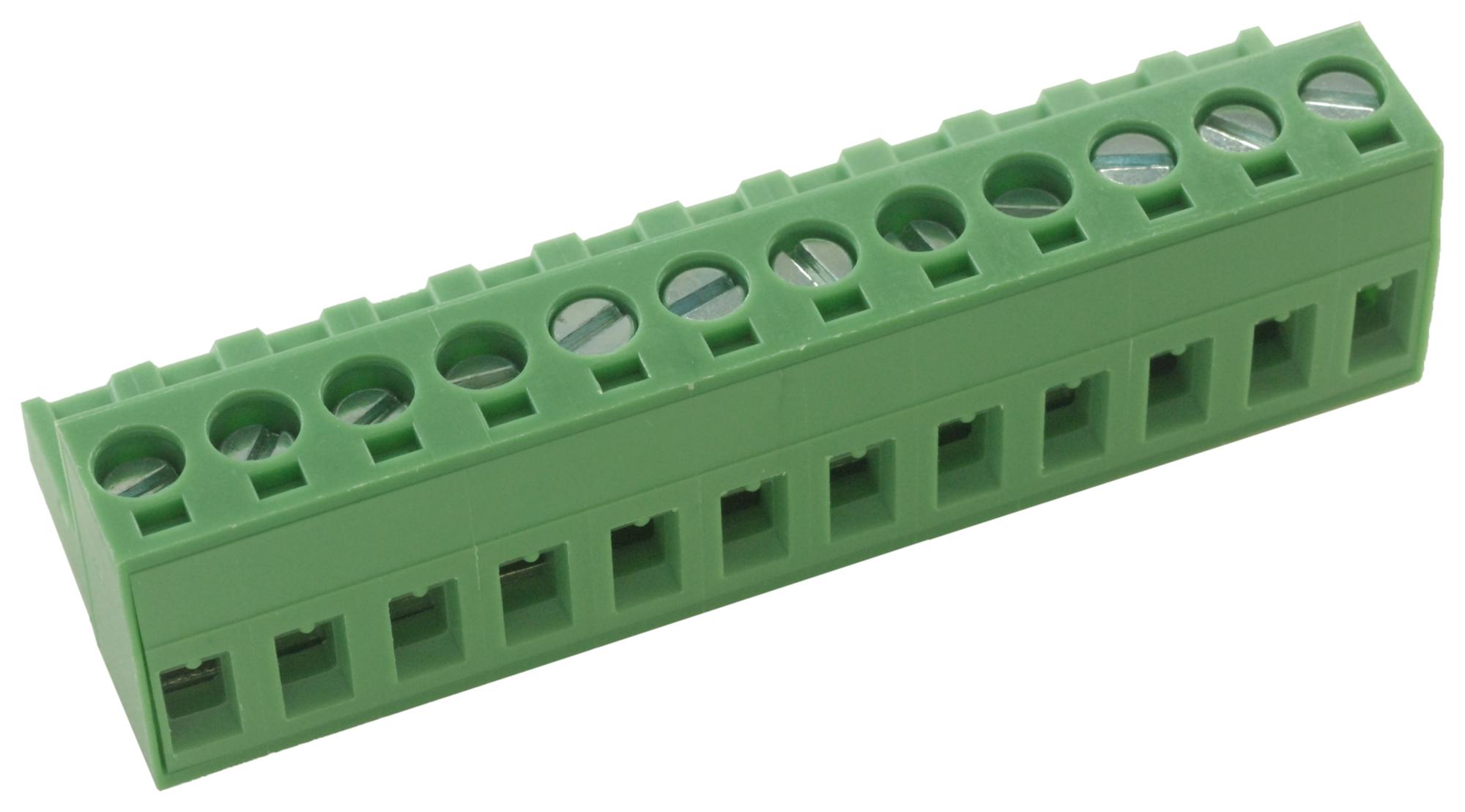

MULTICOMP EBH12D Euro Terminal Block
The EBH-12-D is a 12-way Euro pluggable terminal block with brass contacts, glass-reinforced insulator, and tin-plated brass cage. It features a contact resistance of 20 micro-ohms, insulation resistance of 5000 mega-ohms, and operates from -55°C to 105°C. Suitable for industrial environments, it ensures durability and reliable connections. Designed for 12 AWG to 24 AWG wire sizes, with a maximum voltage of 250V AC, it supports 500 cycles, making it ideal for control panels, automation systems, and electrical equipment requiring secure, high-performance terminal connections.
MULTICOMP EBH12D Euro Terminal Block Specifications:
- Material: PBT or Nylon, glass reinforced
- Insulator Colour: Green, Black (Blue and Gray optional)
- Metal cage: Brass, tin plated
- Screw: Steel, Galvanized or Chromatized
- Wire Guard: Stainless Steel, Tin plated
- Operating voltage: 250V AC Max.
- Current rating: 7 to 154 Max
- Contact resistance: 20MQ Max. initial
- Insulation resistance: 5,000MO Min.
- Dielectric withstanding voltage: 1,500V AC for 1 Minute
- Recommended wire size: 12AWG to 24AWG
- Mating Durability: 500 Cycles Min.
- Temperature Range: -55°C to +105°C
- Dimensions: H = 10mm, J = 10.16mm, C = 5mm, D = 5.08mm
Buy the Multicomp EBH-12-D – Reliable Euro Terminal Block for Industrial Applications
Purchase the Multicomp Euro Terminal Block EBH-12-D online today and enjoy a durable, reliable connection solution for industrial control panels. Designed with brass contacts, glass-reinforced insulators, and compatible with 12 to 24 AWG wires, this terminal block supports up to 250V AC and withstands temperatures from -55°C to 105°C. Perfect for automation, control systems, and electrical installations, it ensures secure and high-quality wiring connections with exceptional durability and mating cycle life. Order now for fast delivery and professional-grade performance.
Get Multicomp EBH-12-D today—built for precision and long-lasting durability in industrial wiring and automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP EBH12D?
You can click on the BUY or RFQ button to purchase EBH12D from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part EBH12D?
You can download the EBH12D datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of EBH12D?
MULTICOMP
