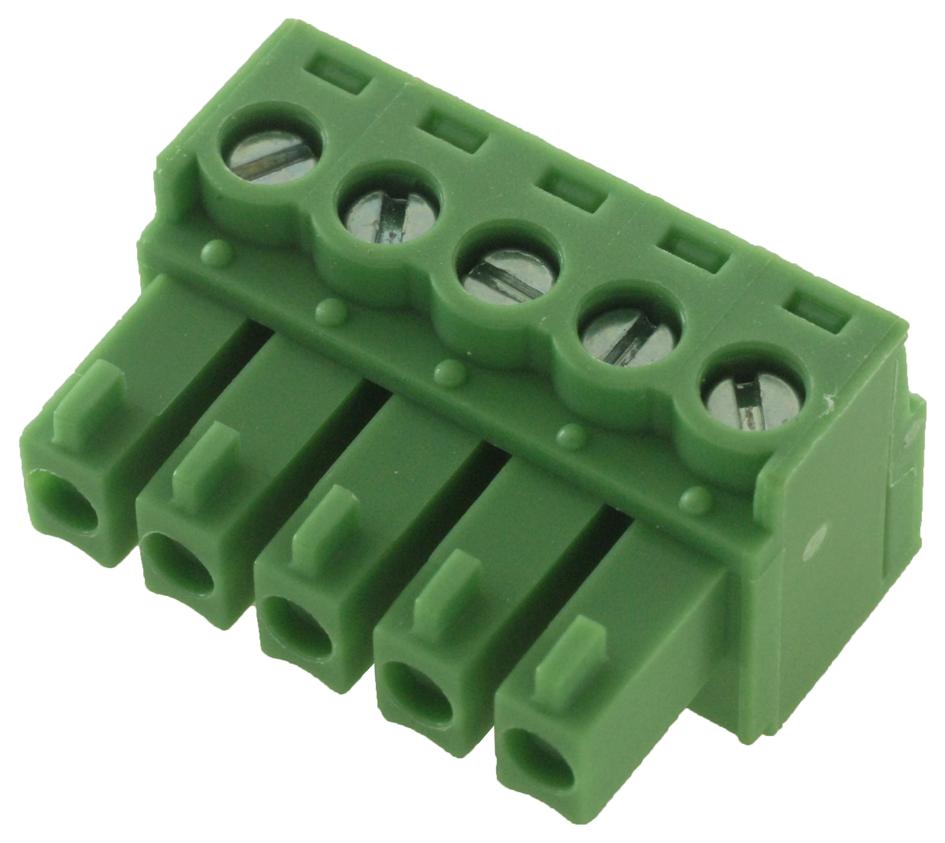

MULTICOMP EBK05B Eurostyle Terminal Block
The EBK-05-B is a 5-position Eurostyle terminal block made with a tin-plated brass housing, green nylon insulator, stainless steel wire guard, and zinc-plated steel screw. It features a dielectric withstand voltage of 1500VAC for 1 minute and can be soldered at 230°C ±10°C for about 3 seconds. With an insulation resistance of at least 5000MΩ at 1000V and an operating temperature range from -55°C to 105°C, this terminal block is ideal for industrial electrical wiring, offering high reliability, safety, and durability for various control and automation systems.
MULTICOMP EBK05B Eurostyle Terminal Block Specifications:
- Material: Nylon insulator, Brass housing, Stainless steel wire guard, Zinc-plated steel screw
- Electrical: Operation Voltage 250V AC Max., Current Rating 15A per pole, Insulation Resistance ≥ 5000MΩ @ 1000V, Dielectric Withstanding Voltage 1500V AC for 1 minute
- Environmental: Operating Temperature -55°C to +105°C, Soldering Temperature 230°C ±10°C for 3 seconds, Torque Max. 5 kg.cm
- Dimensions: 0.138 inch (3.50 mm), 0.150 inch (3.81 mm), 0.276 inch (7.00 mm), 0.300 inch (7.62 mm); 2 pole configuration, overall length varies with pitch
- RoHS compliant, RoHS certification ensures environmentally safe manufacturing, Available in multiple pitches for different wiring needs.
Buy the Buy Multicomp Eurostyle Terminal Block Part Number EBK05B Online
Order the Eurostyle Terminal Block online for reliable electrical connections in industrial automation. Features include high dielectric strength, corrosion-resistant materials, and a robust design for safe operation at voltages up to 250V and currents up to 15A per pole. Easy to install with multiple pitch options, this professional-grade terminal block ensures dependable performance across a wide temperature range from -55°C to 105°C. Perfect for control panels, machinery, and electrical wiring systems requiring secure, durable connections.
Get Multicomp EBK-05-B today—built for precision and long-lasting durability in industrial applications.
