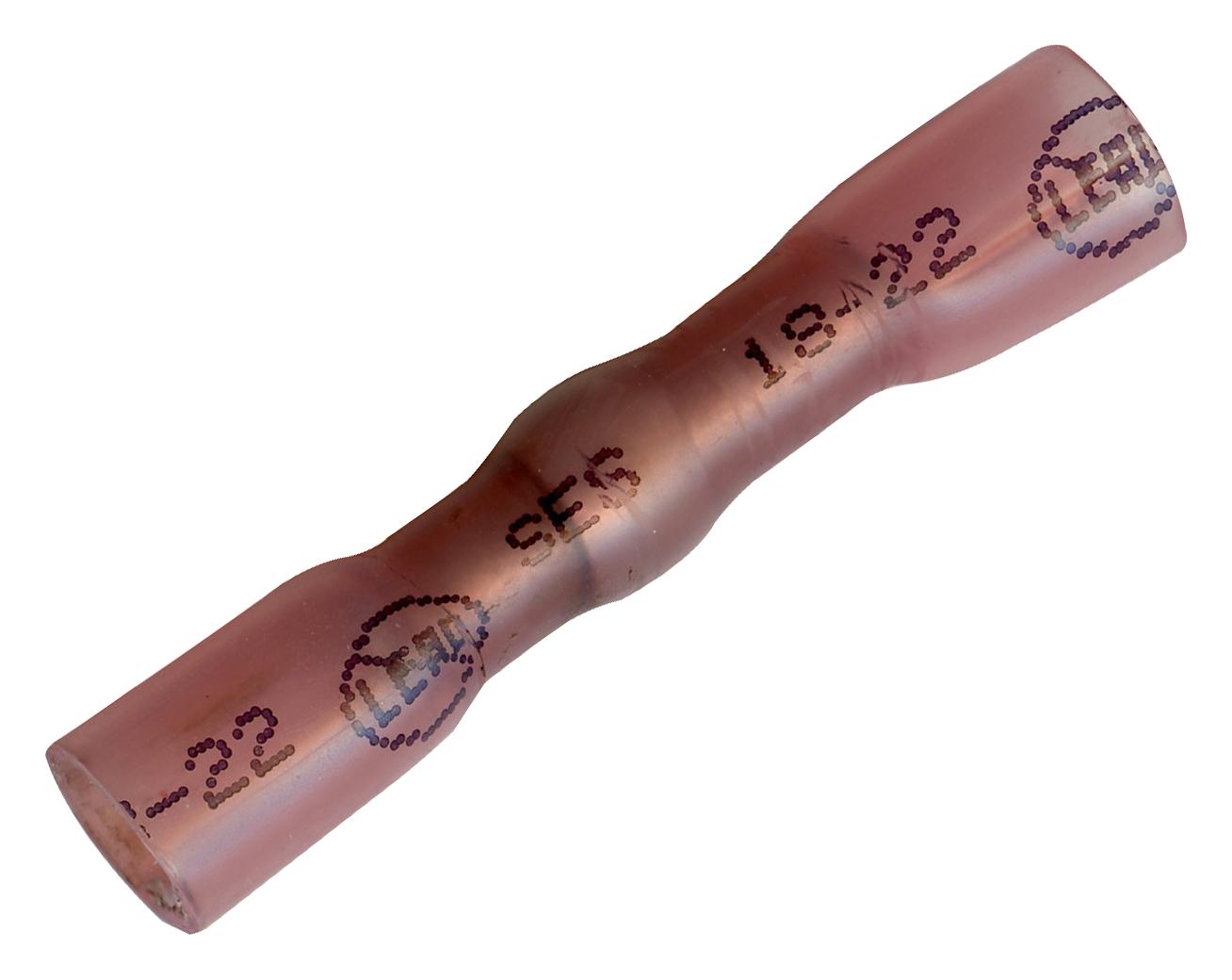

MULTICOMP LFMB16100 Lead-Free Butt Connector
Lead-Free MultiLink Butt Connector by Multicomp provides reliable, environmentally friendly electrical connections for various industrial wiring applications. Crafted from tin-plated copper with a solder alloy of 42SN/58BI and coated with 2-3% RMA flux, these connectors feature a melting temperature of 138°C and operate continuously from -55°C to 110°C. They offer high tensile strength of 2,200 PSI, an ultimate elongation of 400%, and excellent dielectric strength of 900 V/Mil. Available in different sizes for 12-10, 16-14, 24-22, and 22-18 AWG wires, with tubing options for various insulation diameters.
MULTICOMP LFMB16100 Lead-Free Butt Connector Specifications:
- Material: Tin-Plated Copper
- Solder Alloy: 42SN/58BI with 2-3% RMA Flux Coating
- Melting Temperature: 138°C (280°F)
- Tubing Shrink Temperature: 135°C (275°F)
- Operating Temperature Range: -55°C to 110°C
- Tensile Strength: 2,200 PSI
- Elongation: 400%
- Secant Modulus at 2%: 27,000 PSI
- Specific Gravity: 21.0
- Longitudinal Change: +1%, -10%
- Dielectric Strength: 900 V/Mil
- Volume Resistivity: 21015 Q-cm
- Water Absorption: 21%
- RoHS Compliant
Buy the Multicomp LFMB-10 Lead-Free MultiLink – Reliable Butt Connectors for Industrial Applications
Enhance your electrical connections with the reliable, environmentally friendly Lead-Free Butt Connectors from Multicomp. Designed for a variety of wire sizes, these connectors provide excellent tensile strength and dielectric properties for industrial use. Compatible with multiple insulation diameters, they ensure secure and durable connections even in harsh conditions. Purchase online now to benefit from fast delivery, quality assurance, and competitive prices. Perfect for professional wiring projects demanding safety, efficiency, and environmental compliance.
Order your Multicomp SeriesLFMB-20 lead-free butt connector today and ensure your wiring projects are both environmentally friendly and highly reliable.
