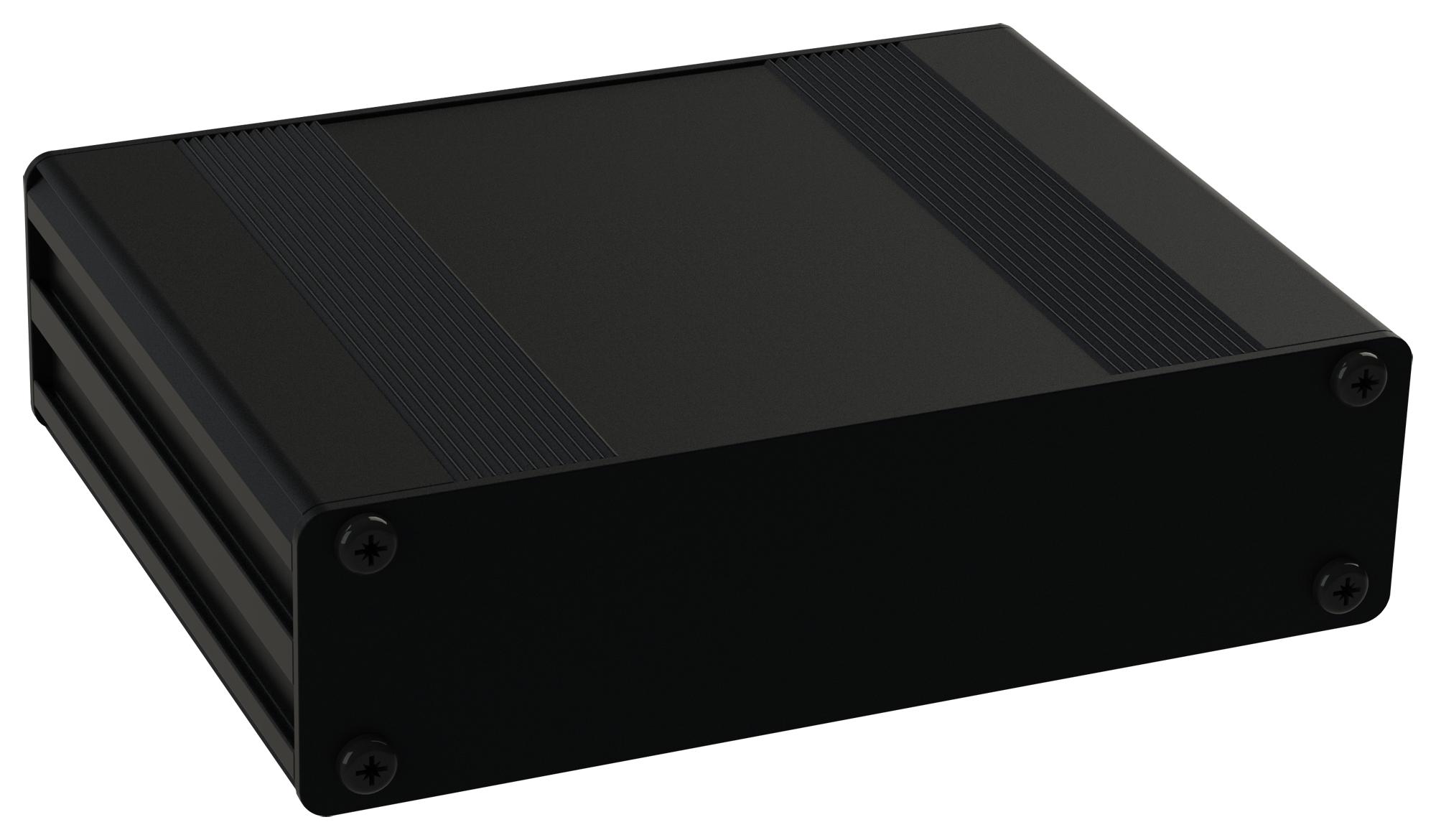

MULTICOMP MC002219 Aluminium Heat Sink Case
These Aluminium multicomp heat sink cases are precisely engineered with a black anodized finish for optimal durability and corrosion resistance. Designed for space-constrained applications, they accommodate circuit boards up to 100mm x 220mm and feature dovetail slots for easy surface mounting using Linc-Lug brackets. Optional waterproof gaskets enhance protection, while grooved sides offer aesthetics and a recess for labeling. Made from high-quality aluminium 6063 T6, they provide lightweight strength, with a slim profile suitable for various electronic enclosure needs. Accurate dimensions and a robust design make these cases ideal for industrial electronics and cooling solutions.
MULTICOMP MC002219 Aluminium Heat Sink Case Specifications:
- Material: Aluminium 6063 T6 (HE9)
- Finish: Black anodized 5um thickness according to BS 1615
- Length Tolerance: Nominal length -0mm / +1mm
- Perimeter: Outside 316mm, Inside 306mm
- Weight: 1.38kg/m
- Screw Ports: Nominal diameter 2.7mm for No.4 self-tapping screw, threaded M3 with a thread-rolling tap
- Maximum Component Height: 18mm / 20mm depending on orientation
- Perimeter: 316mm outside, 306mm inside
- Optional gaskets for waterproofing
- Design includes dovetail slots for surface mounting
- Finish: Can be painted if required; cut ends not anodized
- Available in lengths of 80mm x 108.5mm x 30mm, 160mm x 108.5mm x 30mm, 220mm x 108.5mm x 30mm
Buy the Aluminium multicomp – Reliable Heat Sink Cases for Industrial Applications
Order Aluminium multicomp heat sink cases today for robust, corrosion-resistant electronic enclosures suitable for industrial and space-conscious applications. Featuring dovetail slots for easy mounting, optional waterproof gaskets, and available in multiple sizes, these cases are crafted from high-quality aluminium 6063 T6. Their slim profile and precision engineering ensure effective heat dissipation and secure mounting for circuit boards up to 220mm. Buy online now to enhance your electronic project with reliable, lightweight aluminum cases designed for durability and ease of assembly.
Buy Aluminium multicomp cases now and experience lightweight durability, corrosion resistance, and easy mounting for your electronic project needs.
Frequently Asked Questions
Where can I buy MULTICOMP MC002219?
You can click on the BUY or RFQ button to purchase MC002219 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC002219?
You can download the MC002219 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC002219?
MULTICOMP
