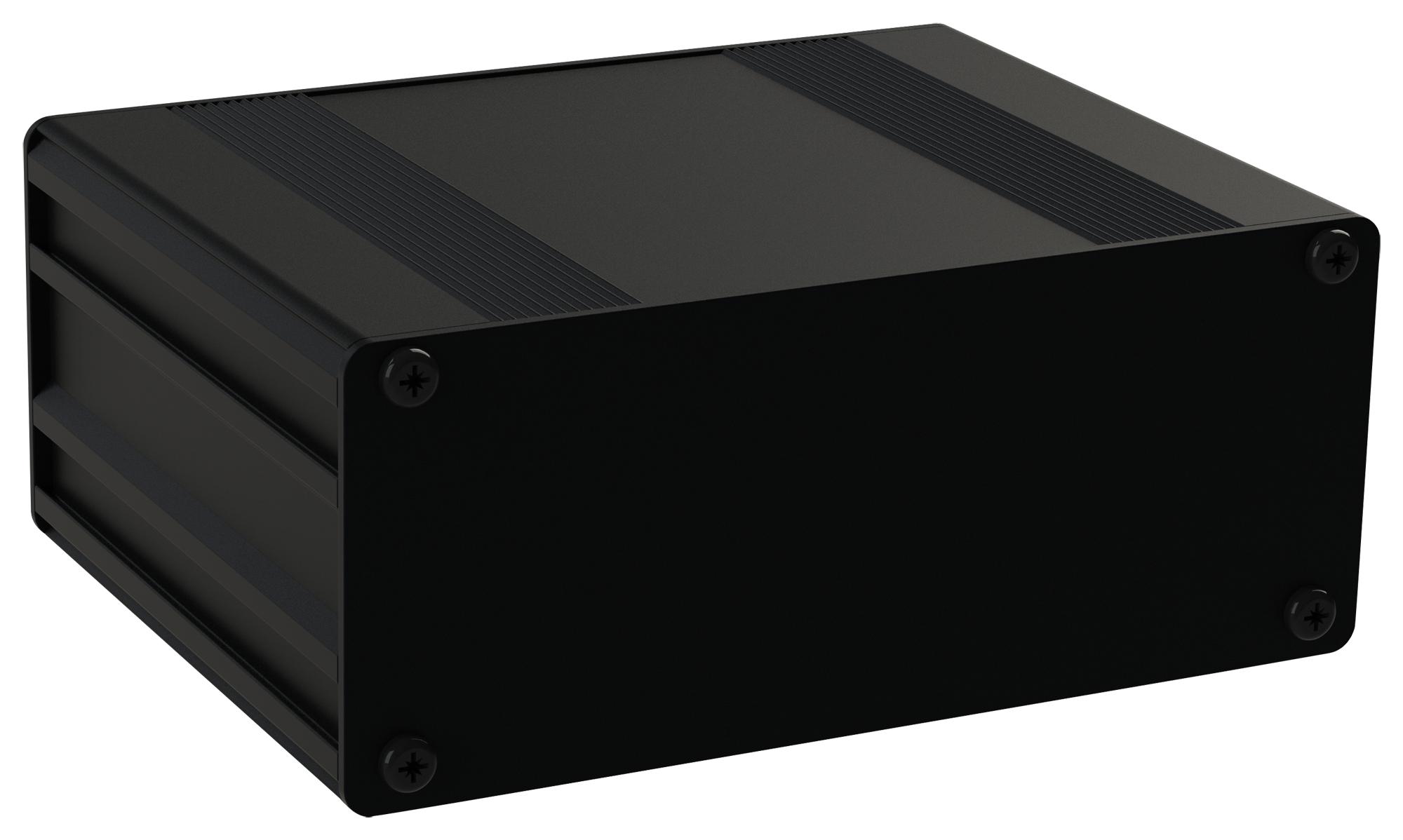

MULTICOMP MC002221 Aluminium Electronic Enclosure
This black anodized aluminium electronic enclosure provides a durable and sleek housing solution for circuit boards measuring 100mm x 80mm, 100mm x 160mm, or 100mm x 220mm. Made from high-quality aluminium 6063 T6, it features dovetail slots for surface mounting and grooves for aesthetics. The enclosure's dimensions range from 80mm to 220mm in length, with a consistent height of 45mm. Screw ports accommodate M3 threaded or self-tapping screws, ensuring secure assembly. Ideal for industrial electronics and control systems requiring robust protection and adaptable mounting options.
MULTICOMP MC002221 Aluminium Electronic Enclosure Specifications:
- Material: Aluminium 6063 T6 (HE9)
- Finish: Black Anodized 20um
- Dimensions: 80mm x 108.5mm x 45mm, 160mm x 108.5mm x 45mm, 220mm x 108.5mm x 45mm
- Screw Ports: Nominal diameter 2.7mm for No.4 self-tapping screws, M3 thread-compatible
- Dovetail Slots: For surface mounting with Linc-Lug brackets
- Grooves: Two sets for appearance and mounting
- Maximum Component Height: 33mm on bottom mounted boards
- Recess: 0.5mm deep for labels
- Edge Features: Appearance-enhancing grooves and shallow recess
Buy the Premier Aluminium Electronic Enclosure – Reliable Industrial Housing for Circuit Boards
Discover the high-quality black anodized aluminium electronic enclosures that protect your circuit boards in industrial settings. Designed with dovetail slots for easy mounting and grooves for aesthetic appeal, these enclosures are available in three sizes: 80mm, 160mm, and 220mm in length. Crafted from durable aluminium 6063 T6 with a 20-micron anodized finish, they ensure long-lasting protection. With screw ports accommodating M3 threads and features for label placement, these enclosures are perfect for industrial electronics, automation systems, and control panels requiring reliable, corrosion-resistant housing.
Order your Premier Series MC002221 Aluminium Electronic Enclosure today and secure a robust, high-quality housing solution for industrial electronics.
