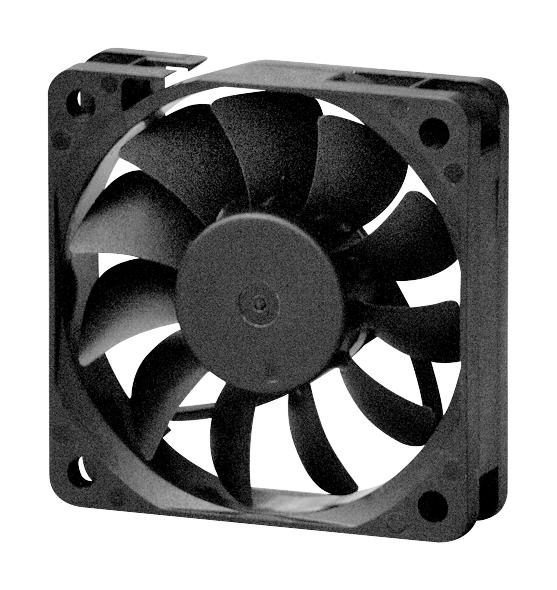

MULTICOMP MC002699 DC Axial Fan
This 60mm x 60mm x 15mm multicomp DC axial fan is designed for efficient cooling in electronic devices and industrial applications. It features a 12V DC motor, Vapo bearing system, and a thermoplastic frame with UL 94V-0 rating. Capable of delivering 30.4 CFM airflow at 5400 RPM, it operates quietly with a noise level of 36.2dB(A). With a life expectancy of 60,000 hours, it includes reverse polarity protection, automatic restart, and safety features ensuring reliable performance and durability in demanding environments.
MULTICOMP MC002699 DC Axial Fan Specifications:
- Rated Voltage: 12V DC
- Rated Current: 185mA / Max. 213mA
- Rated Power Consumption: 2.22W / Max. 2.56W
- Operating Voltage Range: 4.5 to 13.8V DC
- Starting Voltage: 4.5V DC
- Temperature Range: -10°C to +70°C (operating), -40°C to +70°C (storage)
- Motor Design: Single Phase, 4-Pole Bushless DC Motor
- Bearing System: Vapo Bearing
- Frame Material: Thermoplastic PBT UL 94V-0
- Fan Blade Material: Thermoplastic PBT UL 94V-0
- Rotation Direction: Counter-Clockwise
- Mounting Holes: 4.3mm Diameter, 8 Holes
- Weight: 35.59g
- Rated Speed: 5400RPM ±15%
- Air Flow: 30.4 CFM
- Static Pressure: 0.22 Inch-H2O
- Acoustic Noise: 36.2 dB(A)
- Insulation Class: UL Class A
- Life Expectancy: 60,000 Hours @ 40°C, 65% Humidity
- Polarity Protection and Automatic Restart features included
Buy the Elementt Series Axial Fan: 60mm Cooling Fan for Electronics - MC002699
Enhance your electronic cooling solutions with this reliable 60mm x 60mm x 15mm DC axial fan. Designed for durability, it offers 30.4 CFM airflow at 5400 RPM and operates quietly at 36.2dB. Suitable for industrial and electronic devices, it features a Vapo bearing system, safety protections, and a long life expectancy of 60,000 hours. Easy to install with 4 mounting holes, this fan ensures efficient, consistent cooling in demanding environments. Purchase online today for dependable performance.
Buy Elementt Series Axial Fan MC002699 now and experience unmatched reliability and performance in electronic cooling applications.
