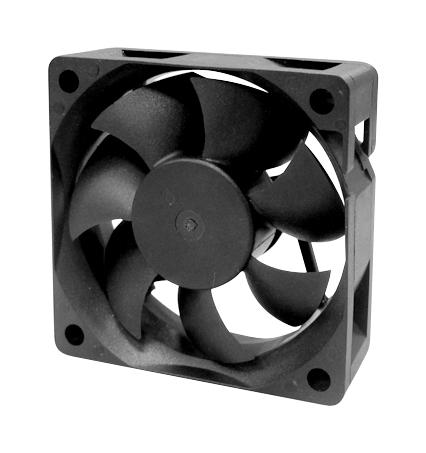

MULTICOMP MC002703 industrial cooling fan
The 60mm x 60mm x 20mm multicomp DC axial fan is a reliable component designed for cooling electronic devices and industrial applications. It features a brushless single-phase 4-pole motor with a Vapo bearing system, offering an air flow of 19 CFM at 4200 RPM. Made from UL 94V-0 thermoplastic PBT, the fan operates within a voltage range of 4.5 to 13.8V DC and has a life expectancy of 60,000 hours. Its low noise level of 28 dB and protection features make it ideal for continuous operation in various environments.
MULTICOMP MC002703 industrial cooling fan Specifications:
- Dimensions: 60mm x 60mm x 20mm
- Rated Voltage: 12V DC
- Rated Current: 65mA / Max. 75mA
- Rated Power Consumption: 0.78W / Max. 0.90W
- Operating Voltage Range: 4.5 to 13.8V DC
- Starting Voltage: 4.5V DC
- Rated Speed: 4200RPM +15%
- Air Flow: 19.0 CFM
- Static Pressure: 0.16 Inch-H,O
- Acoustic Noise: 28.0 dB (A)
- Motor: Single Phase, 4-Pole Brushless DC Motor
- Bearing System: Vapo Bearing
- Frame Material: Thermoplastic PBT of UL 94V-0
- Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Power Connection: #26AWG - 2 Lead Wires; Red (+), Black (-)
- Mounting Holes: 4.3mm Diameter, 4 Holes
- Weight: 50g
- Insulation Resistance: 10MQ @ 500V DC
- Protection: Polarity Protection, Dielectric Strength
- Life Expectancy: 60,000 Hours @ 40°C, 65% Humidity
Buy the Farnell MC002703 – Reliable Cooling Fan for Industrial Applications
Order the Farnell MC002703 industrial cooling fan online today and experience efficient thermal management for electronic devices and equipment. With a compact 60mm x 60mm x 20mm size, it delivers 19 CFM airflow at 4200 RPM, ensuring optimal heat dissipation. Its ultralow noise level of 28 dB makes it suitable for sensitive environments. Built with durable UL 94V-0 thermoplastic components and Vapo bearings, this fan offers an impressive 60,000 hours of lifecycle. Buy online now for reliable, quiet, and effective cooling performance in industrial and electronic applications.
Get Farnell MC002703 today—built for precision cooling with long-lasting durability and quiet operation.
Frequently Asked Questions
Where can I buy MULTICOMP MC002703?
You can click on the BUY or RFQ button to purchase MC002703 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC002703?
You can download the MC002703 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC002703?
MULTICOMP
